how to make Arduino Remote Control robot Tank with WiFi Camera nRF24L01? 5

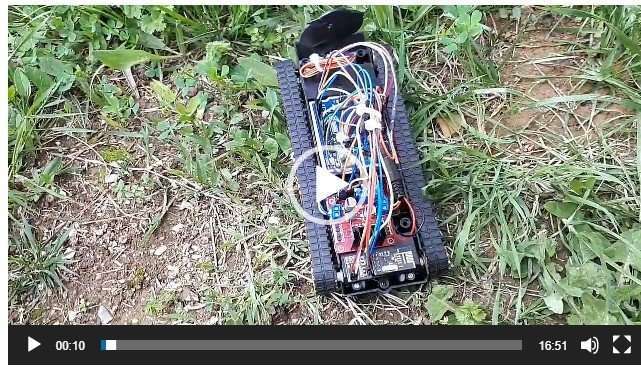

Video:

About

In this tutorial we will learn to build a remote controlled car / tank. We will also add a WiFi camera to make the Tank more equipped. We will use the nRF24L+ module for remote control. With this tutorial, you can learn motor control with the joystick, remote motor control, and motor control with the nRF24L01.

Part List:

Arduino Uno R3 Arduino Nano nRF24L01

nRF24L Adapter – https://www.sinoning.com/product/wireless-transceiver-nrf24l01-2-4ghz-antenna-module-for-arduino-microcontroll-module-pcb-antenna L298N Motor Driver ps2 Joystick

Tank Chassis Model 1 https://www.sinoning.com/product/robot-tank-car-chassis-platform-for-diy-caterpillar-crawler-smart-track-vehicle-for-arduino-rc-toy-remote-control Breadboard DIY plate Jumper/Wires – Battery Plug

Battery 9V – https://goo.gl/Blc0BP

Optional (If you want to add Camera) Mini WiFi CCTV IP Camera – Mini Sg90 Servo Potentiometer

Also Recommended other Hardwares:

Lipo Battery – https://goo.gl/2JZnmg

nRF24L Antenna

NRF24L01+PA+LNA Wireless Module with Antenna 1000 Meters Long Distance FZ0410

FPV Camera – https://goo.gl/9UM8WO

FPV Goggles – https://goo.gl/fw6c1y

Tutorials:

Tutorials about using the nRF24L+ library

Source Code

code:

nrf24l+library

https://github.com/maniacbug/RF24
