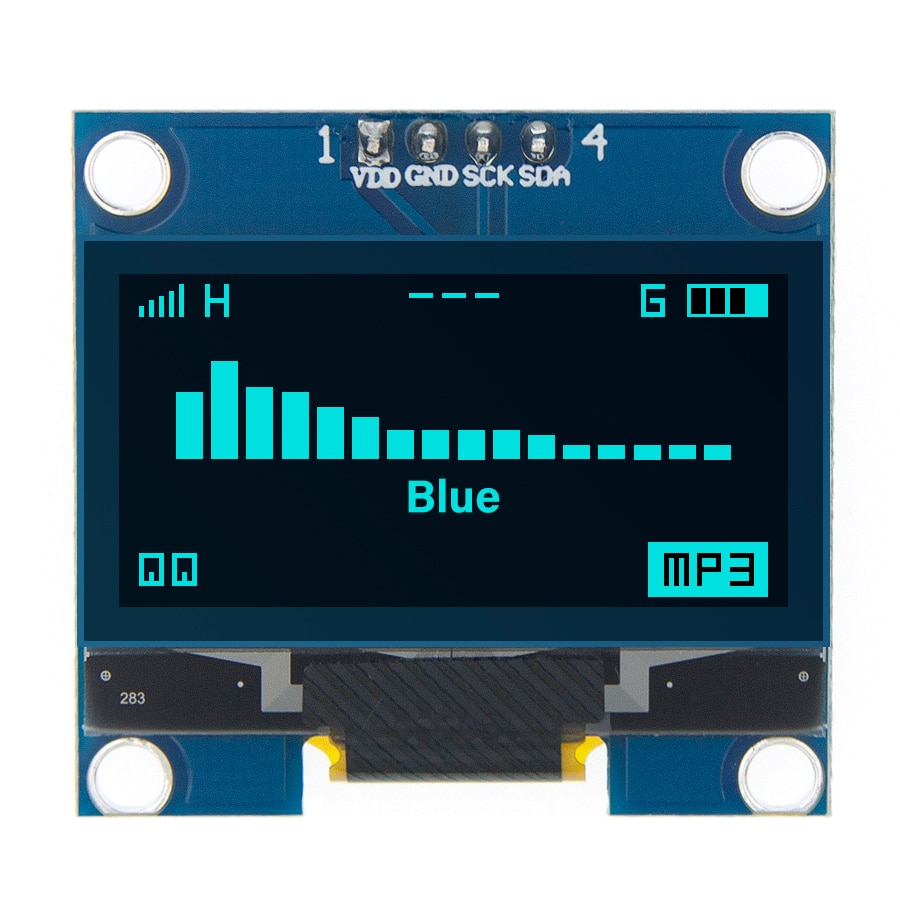

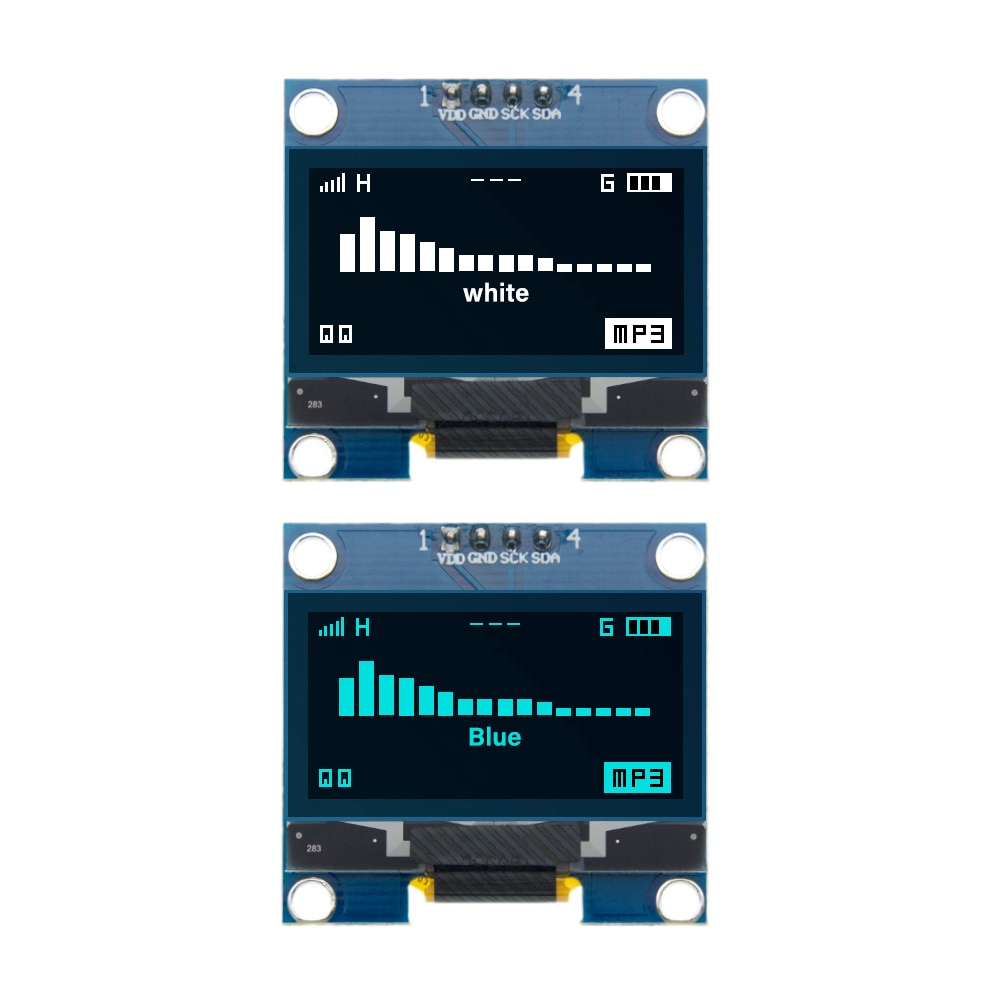

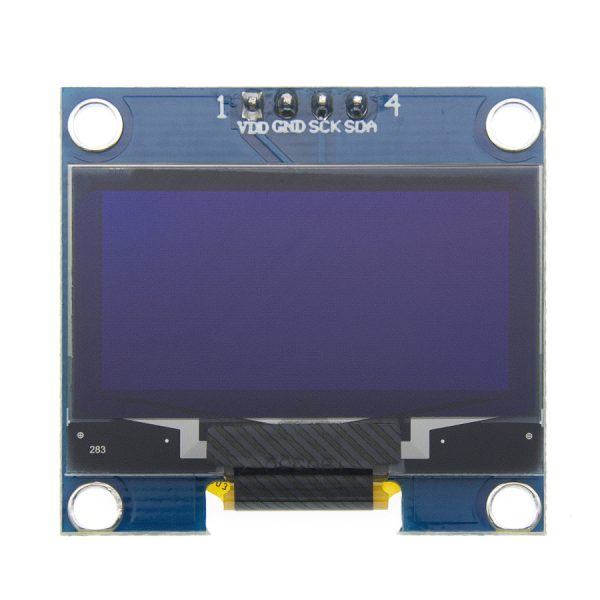

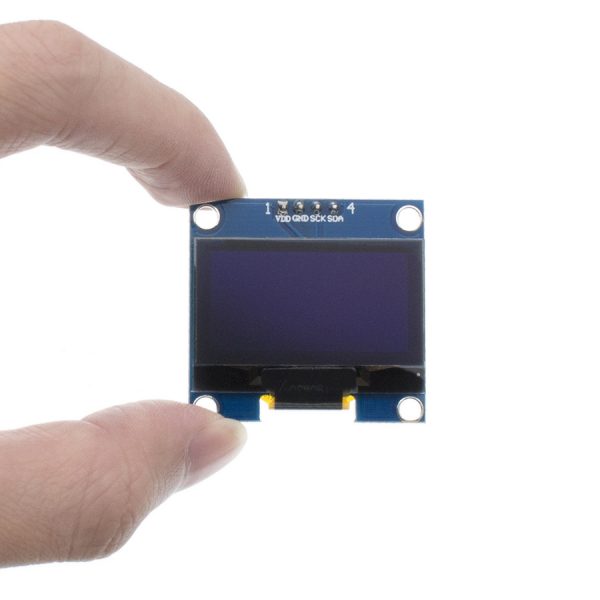

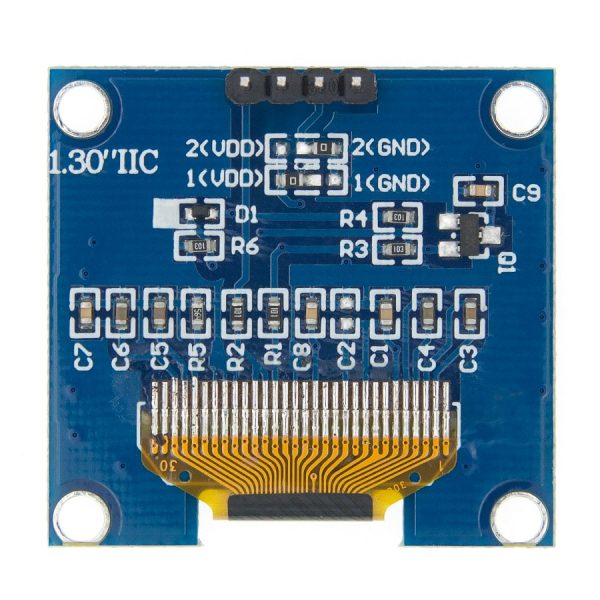

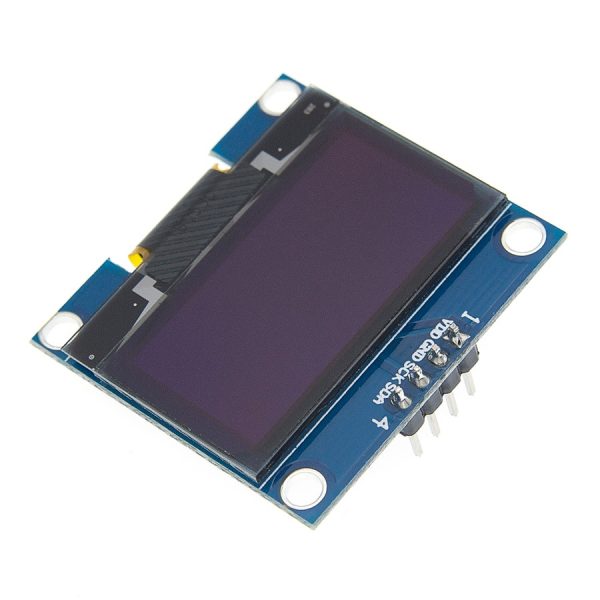

1.3″ OLED module white/Blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3″ IIC I2C Communicate for arduino

Availability:

7852 in stock

358 Sales



$5.66

Clear
<img src="//ae01.alicdn.com/kf/HTB14plPaVzsK1Rjy1Xbq6xOaFXa4.jpg" />



<span style="font-size: 20px"><span style="font-family: OpenSans">Module Features: 1, resolution: 128X64 2, super wide viewing angle: more than 160 &deg; (maximum viewing angle display a screen) 3, ultra-low power consumption: normal display 0.08W (far below the TFT display) 4, wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system) 5, industrial grade: Operating temperature range -30 degree~ 70 degree 6, the ultra-small size: (length) 35.4MM * (W) 33.5MM * (thickness) 4.3MM 7, support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC 8, with chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work 9, compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible) 10, OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)</span></span>



<span style="font-size: 20px"><span style="font-family: OpenSans"><img src="//ae01.alicdn.com/kf/Hd5c98c859ca5477b8115f328a176c26eP.jpg" /><img src="//ae01.alicdn.com/kf/Hbd829efe3eee4e349de658d7d82ff8dcq.jpg" /><img src="//ae01.alicdn.com/kf/Hd016454a30d146ddb1584fdfc09b51d6S.jpg" /><img src="//ae01.alicdn.com/kf/H38ca3eb44b7d44218b5ab1182dff5197F.jpg" /><img src="//ae01.alicdn.com/kf/Ha3b840c9b4fd4f28a3ce2fb79d0f049cA.jpg" /></span></span>
SKU: 32796086867 Category:
