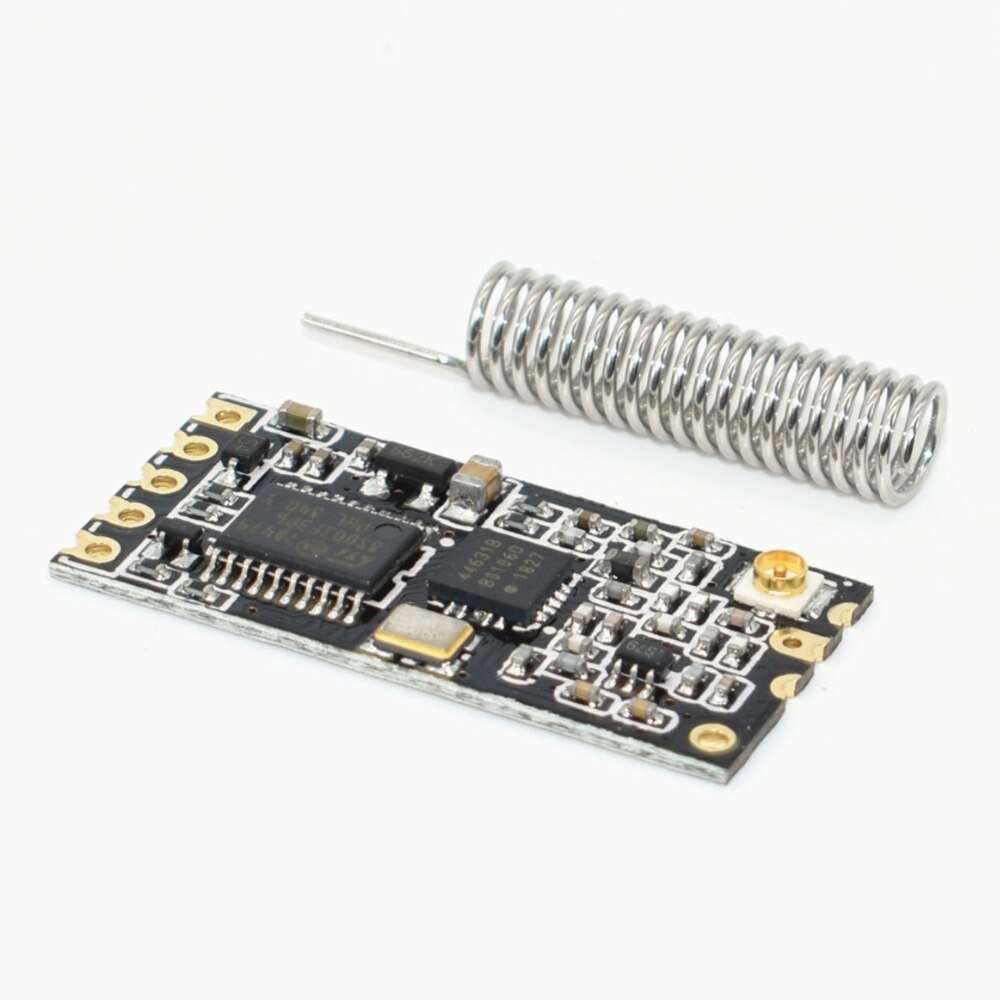

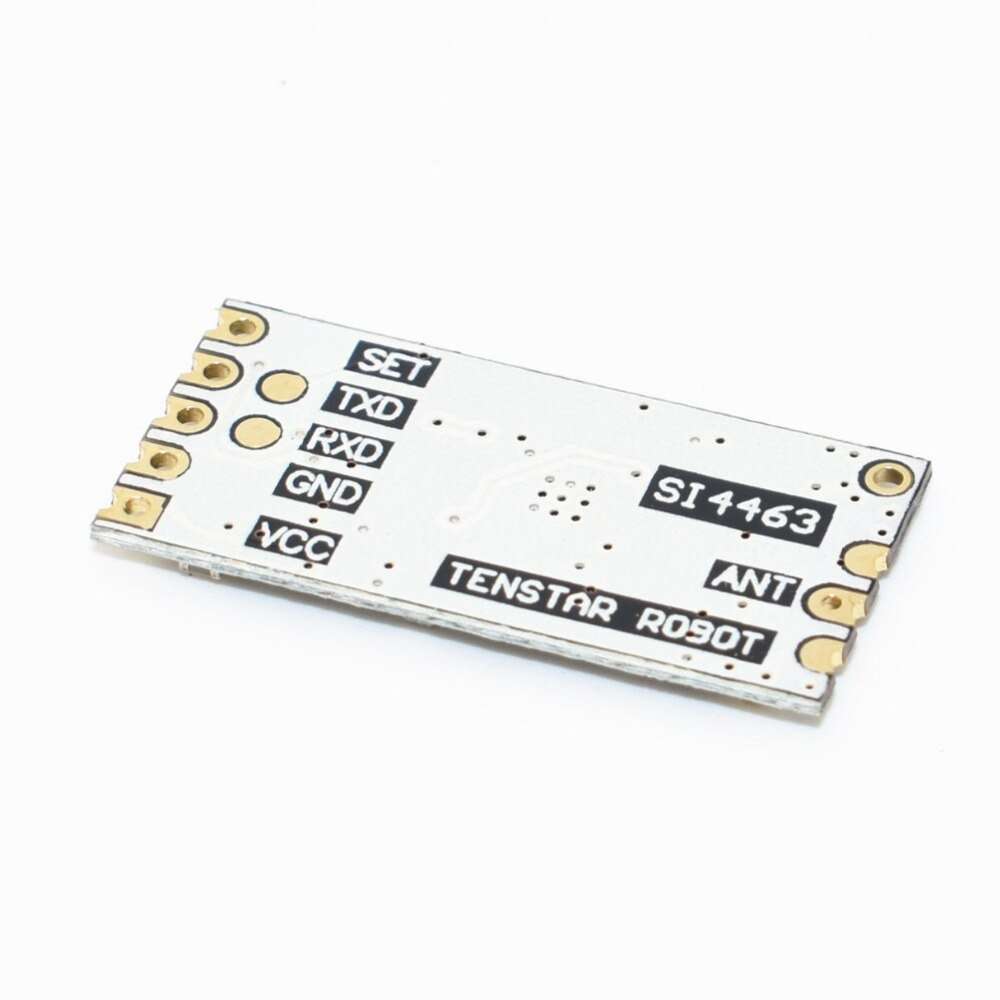

10pcs 433Mhz SI4463 Wireless Serial Port Module 1000m Replace Bluetooth NEW

Availability:

9028 in stock

8 Sales


$28.33

9028 in stock

1: Supply voltage 3.2V ~ 5.5V. (If you want to work in the module launch state for a long time, it is recommended when the supply voltage exceeds 4.5V series with a 1N4007 diode, to avoid heating module built LDO)

2: Default communication distance (open test): about 600m (adjustable to achieve the maximum communication distance of 1000m, the air baud rate 5000bps).

3: The default idle current: 16MA (modules in different operating current of the different operating modes).

4: Module Size: 27.8mm × 14.4mm × 4mm.

5: Operating frequency range (433.4-473.0MHz, up to 100 communication channels) Maximum 100mW transmit power (can be set)

6: The module supports software upgrades. (We provide customers with software upgrades)

7: The default factory settings: operating mode FU3, baud rate 9600bps, communication channel CH001 (433.4M).


>

SKU: 32697015204 Category:
Brand Name

TENSTAR ROBOT

Condition

New

Type

Voltage Regulator

Supply Voltage

1

Package

SMD

is_customized

Yes

Dissipation Power

1

Model Number

1

Application

Computer

Operating Temperature

1
