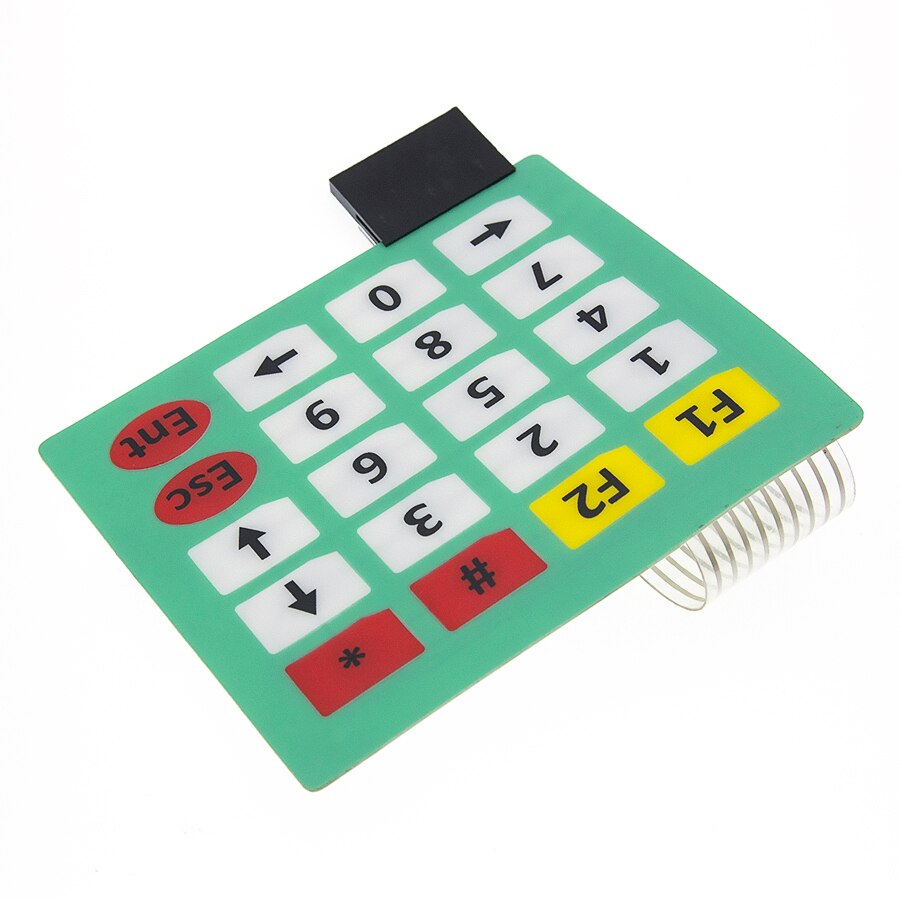

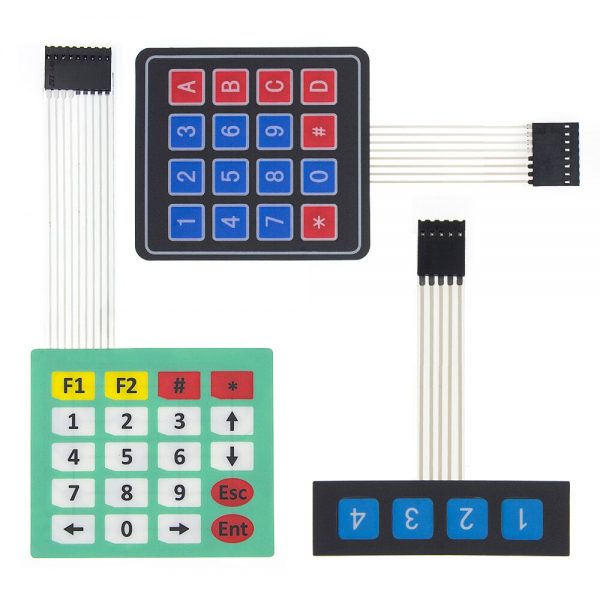

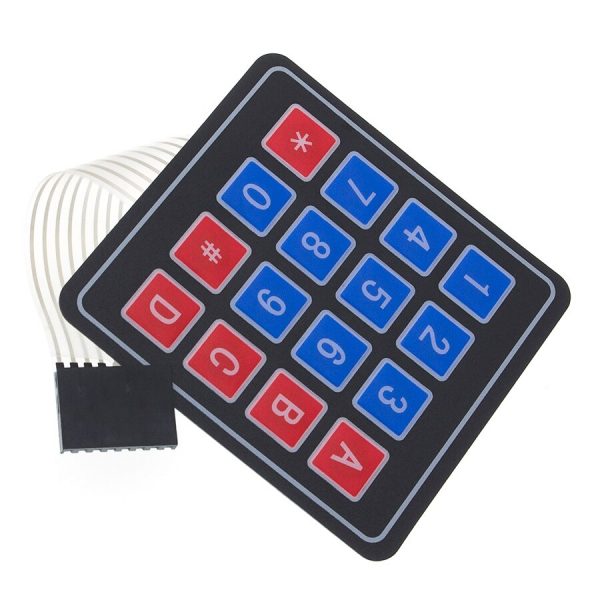

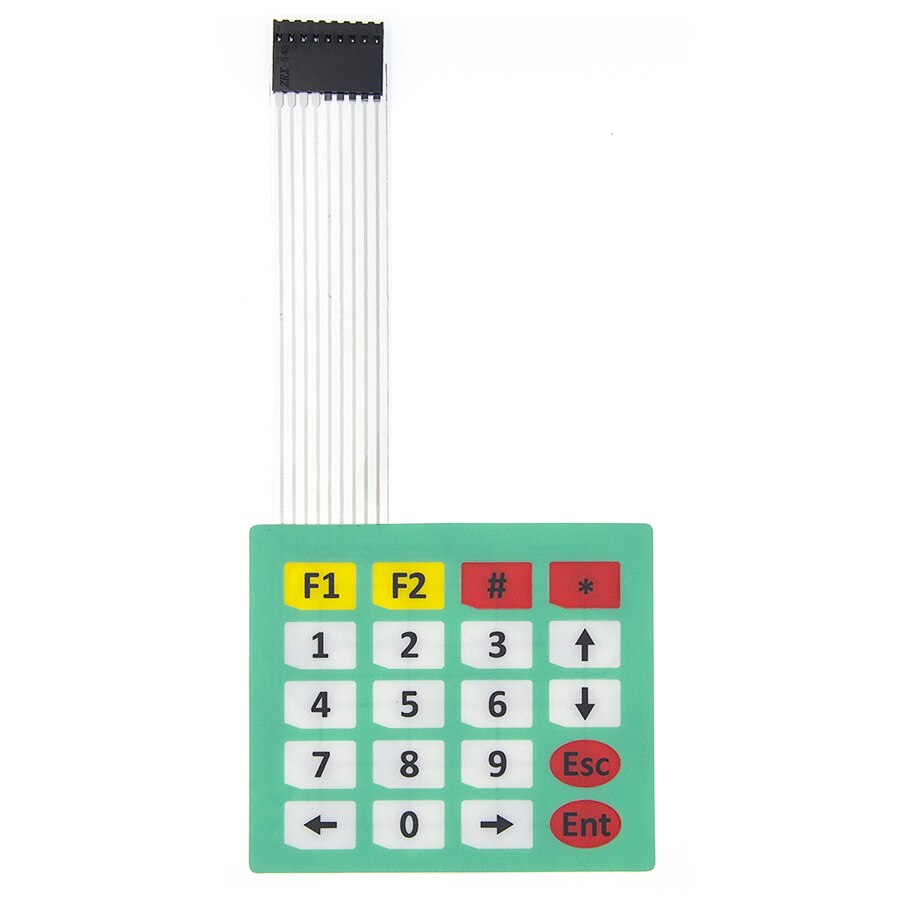

1*4 4*4 4*5 Matrix Array/Matrix Keyboard 16 Key Membrane Switch Keypad for arduino 1×4 4×4 4×5

Availability:

99604 in stock

Sales 1

$0.94$1.64


Contact resistance of 500 ()
Insulation resistance 100M ()
Key Operating Force 150-200N
Rebound time 1 (ms)
Life of 100 million (times)
Operating Temperature 60 ()

1, the electronic characteristics
Circuit Rating: 35V (DC), 100mA, 1W
Contact resistance: 10 ~ 500
(Varies according to the lead lengths and different from those of the material used)
Insulation resistance: 100M 100V
Dielectric Strength: 250VRms (50 ~ 60Hz 1min)
Electric shock jitter: <5ms
Life span: tactile type: one million times

2, the mechanical properties

Operating pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz)
Switch travel: touch-type: 0.6 ~ 1.5mm

3, the environment parameters

Operating temperature: -40 to +80
Storage temperature: -40 to +80
Temperature: from 40,90% to 95%, 240 hours
Vibration: 20G, max. (10 ~~ 200Hz, the Mil-SLD-202 M204.Condition B)

1*4 4*4 4*5 Matrix Array/Matrix Keyboard 16 Key Membrane Switch Keypad for arduino 1x4 4x4 4x51*4 4*4 4*5 Matrix Array/Matrix Keyboard 16 Key Membrane Switch Keypad for arduino 1x4 4x4 4x51*4 4*4 4*5 Matrix Array/Matrix Keyboard 16 Key Membrane Switch Keypad for arduino 1x4 4x4 4x51*4 4*4 4*5 Matrix Array/Matrix Keyboard 16 Key Membrane Switch Keypad for arduino 1x4 4x4 4x51*4 4*4 4*5 Matrix Array/Matrix Keyboard 16 Key Membrane Switch Keypad for arduino 1x4 4x4 4x51*4 4*4 4*5 Matrix Array/Matrix Keyboard 16 Key Membrane Switch Keypad for arduino 1x4 4x4 4x5

SKU: 32462149418 Category:
Brand Name

TENSTAR ROBOT

Condition

New

Type

Voltage Regulator

Supply Voltage

1

is_customized

Yes

Dissipation Power

1

Model Number

4*4

Application

Computer

Operating Temperature

1
