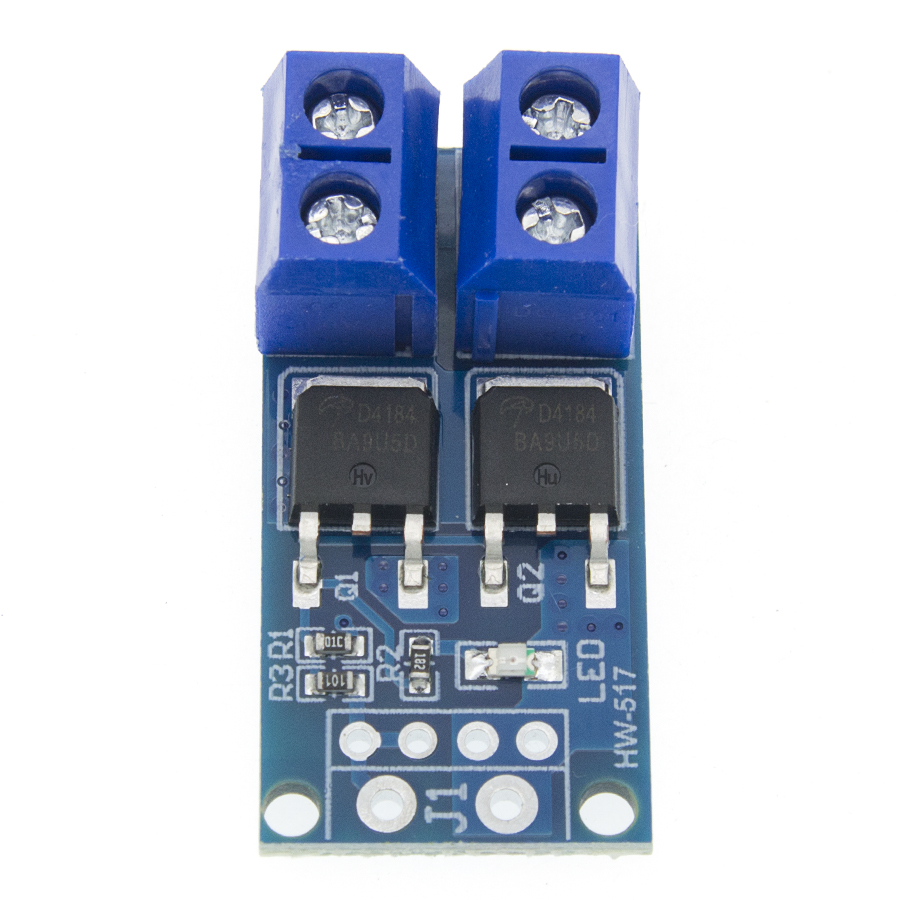

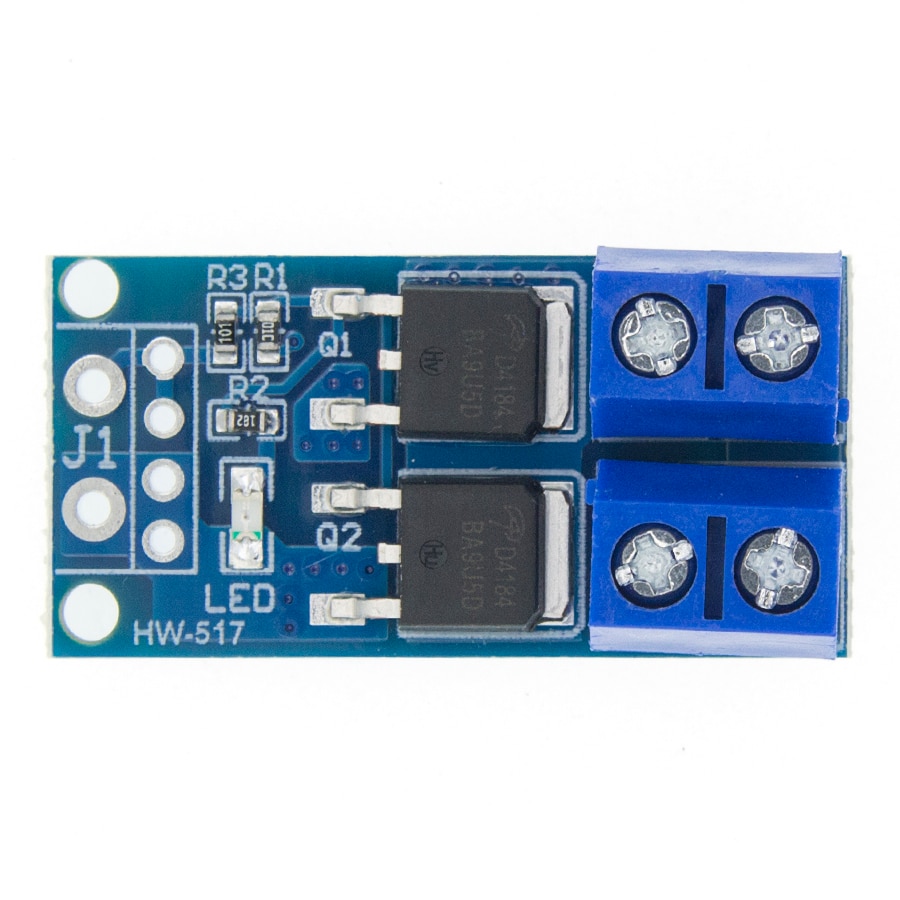

15A 400W MOSFET Trigger Switch Drive Module PWM Regulator Control Panel

Availability:

99507 in stock

Sales 1

$1.16

99507 in stock

Module Highlights: 1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power. At room temperature to provide current of 15A, 400W power; 2. Wide voltage input, support PWM; 3. Easy to control high power devices. Product specifications and applications: 1. Working voltage: DC 5V - 36V; 2. The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal can be supported frequency range 0--20KHZ. 3. Output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power 400W! 4. Application: High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; motor speed control, lamp brightness. 5. life: unlimited-off; 6. Working temperature: -40-85 ;

7. Size: 3.4 * 1.7 * 1.2cm.

15A 400W MOSFET Trigger Switch Drive Module PWM Regulator Control Panel

15A 400W MOSFET Trigger Switch Drive Module PWM Regulator Control Panel15A 400W MOSFET Trigger Switch Drive Module PWM Regulator Control Panel15A 400W MOSFET Trigger Switch Drive Module PWM Regulator Control Panel

SKU: SNA124 Category:
Weight0.05 kg
Brand Name

TENSTAR ROBOT

Condition

New

Type

Voltage Regulator

Dissipation Power

1

Model Number

15A

Application

Computer

Operating Temperature

1

Supply Voltage

1

Package

SMD

is_customized

Yes
