18650 Charger Charging Module Protection 25A 3S PCB BMS Board Polymer Lithium Battery 3 Serial 12V 3.7 Lipo Li-ion

Availability:

3621 in stock

Sales 93

$4.54 $5.68

3621 in stock

18650 Charger Charging Module Protection 25A 3S PCB BMS Board Polymer Lithium Battery 3 Serial 12V 3.7 Lipo Li-ion

Product Introduction:

Model3 serial 12V 25A protection Board

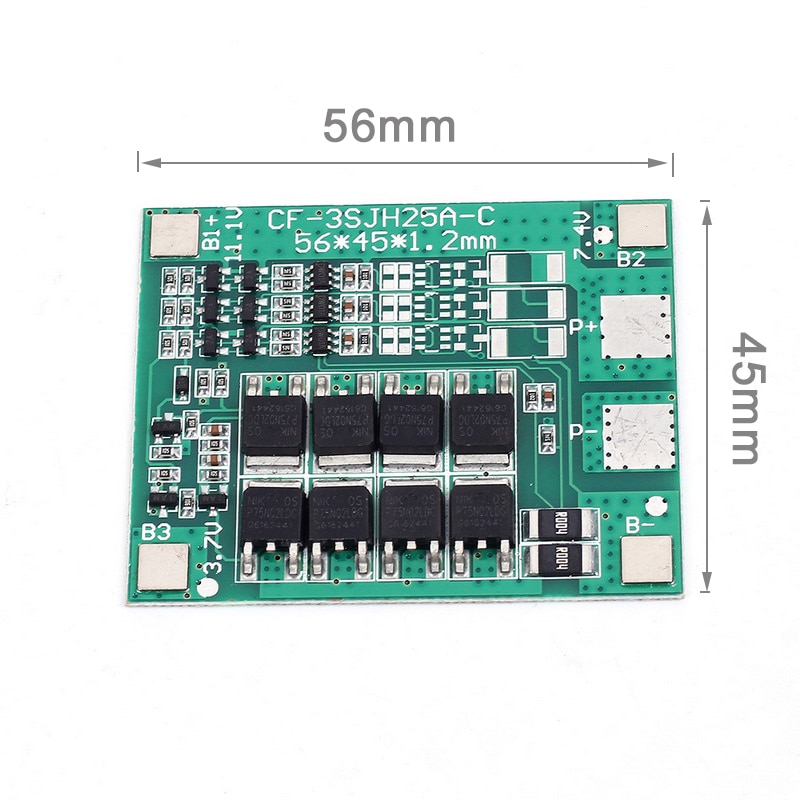

Size45*56*3.5mm
Continuous Operating Current<30A
Instant Operating Current<40A
Charging Voltage12.8-16V
Charging Current<10A
Overcharging Protection VoltageSingle cell 4.2V+/-0.025V
Overdischarging Protection VoltageSingle cell 2.9V+/-0.1V
Short Circuit ProtectionYes
Appliation Fits3.7V cell 3 serial/18650 multiple parallel 3 serial
Load Power<dc 12V 300W

Please Notice:

1.First detect cell voltage is basically stable,then serial connection.
2.When soldering protection board,thetouch time between soldering iron and protection board should not be too long,within 1.5s is the best.

If there is any question about it, please feel free to leave messag to us.

18650 Charger Charging Module Protection 25A 3S PCB BMS Board Polymer Lithium Battery 3 Serial 12V 3.7 Lipo Li-ion

18650 Charger Charging Module Protection 25A 3S PCB BMS Board Polymer Lithium Battery 3 Serial 12V 3.7 Lipo Li-ion18650 Charger Charging Module Protection 25A 3S PCB BMS Board Polymer Lithium Battery 3 Serial 12V 3.7 Lipo Li-ion18650 Charger Charging Module Protection 25A 3S PCB BMS Board Polymer Lithium Battery 3 Serial 12V 3.7 Lipo Li-ion18650 Charger Charging Module Protection 25A 3S PCB BMS Board Polymer Lithium Battery 3 Serial 12V 3.7 Lipo Li-ion18650 Charger Charging Module Protection 25A 3S PCB BMS Board Polymer Lithium Battery 3 Serial 12V 3.7 Lipo Li-ion18650 Charger Charging Module Protection 25A 3S PCB BMS Board Polymer Lithium Battery 3 Serial 12V 3.7 Lipo Li-ion18650 Charger Charging Module Protection 25A 3S PCB BMS Board Polymer Lithium Battery 3 Serial 12V 3.7 Lipo Li-ion


SKU: 32780248457 Category:
Brand Name

IS

Condition

New

Type

Logic ICs

Package

SOP

Dissipation Power

<300W

Model Number

Charger Module

Application

Computer

Operating Temperature

-30-85 celsius

Supply Voltage

12V

is_customized

Yes

Size

45*56*3.5mm

Continuous Operating Current

25A
