1S 2S 3S 4S 6S 7S Series Lithium Battery Capacity Indicator Module Display Electric Vehicle Battery Power Tester Li-po Li-ion

Please NOTE : we have documents for most of products in our store If you need it , contact us 🙂

Features:

​

1.Battery type electricity quantity display.

2.Wide application fields:lithium battery.

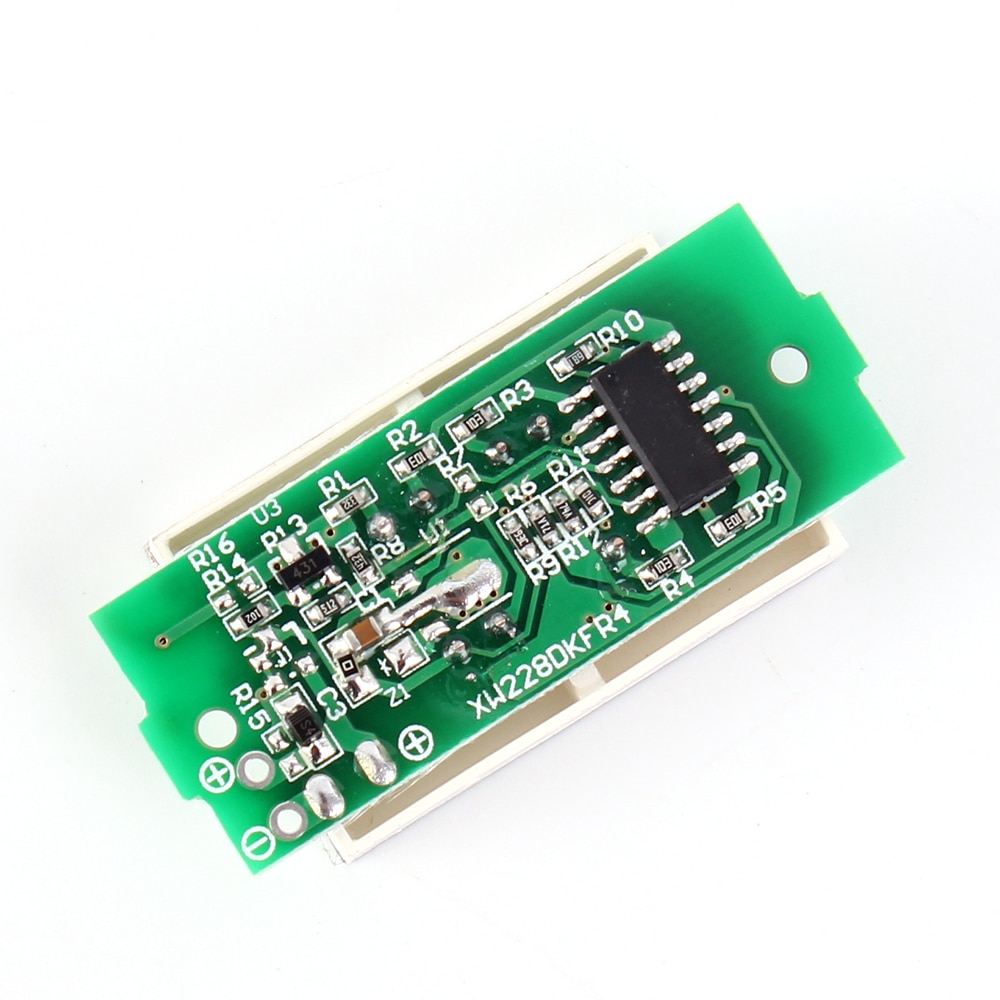

3.Using Method:connect display board positive and negative port with tested battery positive and negative port,digital tube will display real-time battery electricity quantity.

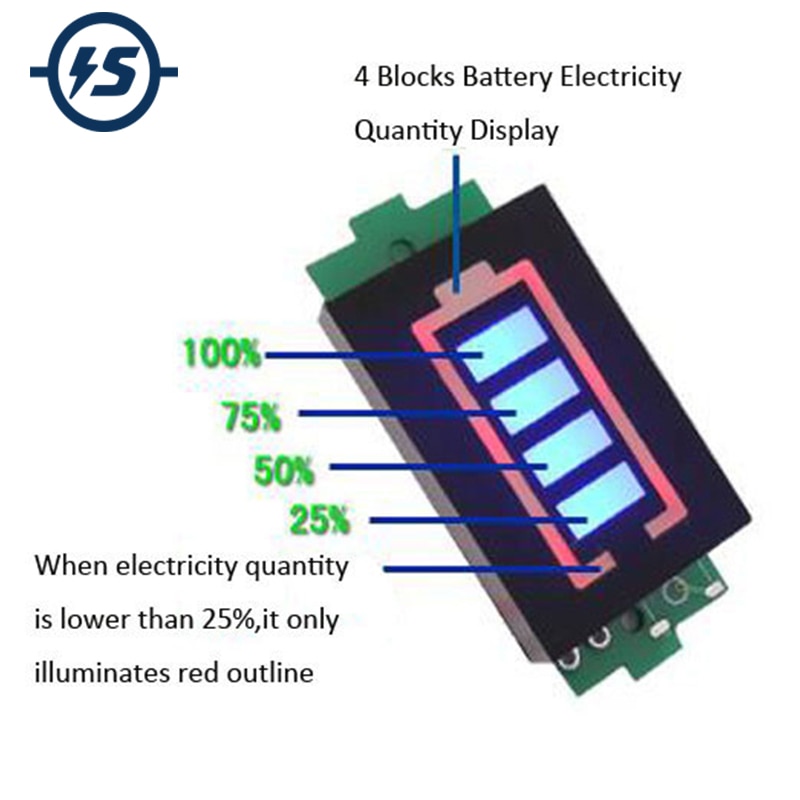

4.Digital Color:outline red,display block blue (when battery electricity quantity is full,it will be all on)

Display Electricity Quantity Parameter:

1.When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity (note:N represents battery quantity).
2.When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity.
3.When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity.
4.When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity.
5.When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery is less than 3.3V,and you can charge the battery.
