Advantage of coreless motor servo:
High reliability、good stability、strong adaptability,
Low noise、small vibration、smooth operation、long life
No. |
工作电压Operating Voltage |
5V |
6V |
7.4V |
1 | 待机电流 Idle current(at stopped) |
5mA |
5mA |
5mA |
2 | 空载转速Operating speed (at no load) |
0.13 sec/60° |
0.12 sec/60° |
0.11sec/60° |
3 | 堵转扭矩Stall torque (at locked) |
29 kg-cm |
32 kg-cm |
35 kg-cm |
4 | 堵转电流Stall current (at locked) |
1.9A |
2.1 A |
2.3A |
Sepcification:
Brand:Dsservo

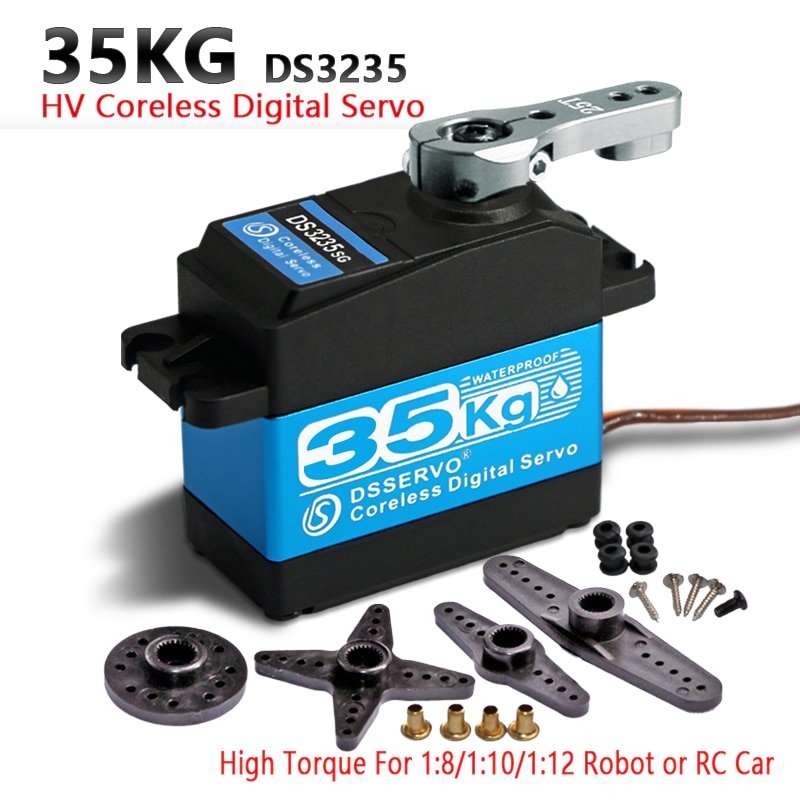

Item: DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo
Operating Voltage: 5 ~ 7.4 DC Volts
Dead brand: 2 μs
Weight: 60 g (2.12 oz)
Motor Type: Coreless Motor
Gear Type: Stainless Steel & Aluminum
Working frequence: 50-333Hz
Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in)
Features:
– High performance digital standard servo
– High-precision metal gears (Stainless steel gear)with hard anodizing
– CNC aluminium middle Shell
– Dual ball bearings
Package Included:
1 x DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo
1 x 25T Adjustable metal servo arm
a set of accessories

DS3235 Stainless Steel Gear Waterproof Servo
welcome more buyer share finish model with us ,thanks in advance.
