This product is self-developed design multi-channel control high-power toy remote control kit, can realize multi-channel control 6v, 9V 12v, 24v series DIY intelligence Toys (cars, tanks, boats, etc.) can achieve flexible control, diversification and simple operation.
This product realizes multi-channel control,
through the power supply module and wireless control module to co-process the entire product.

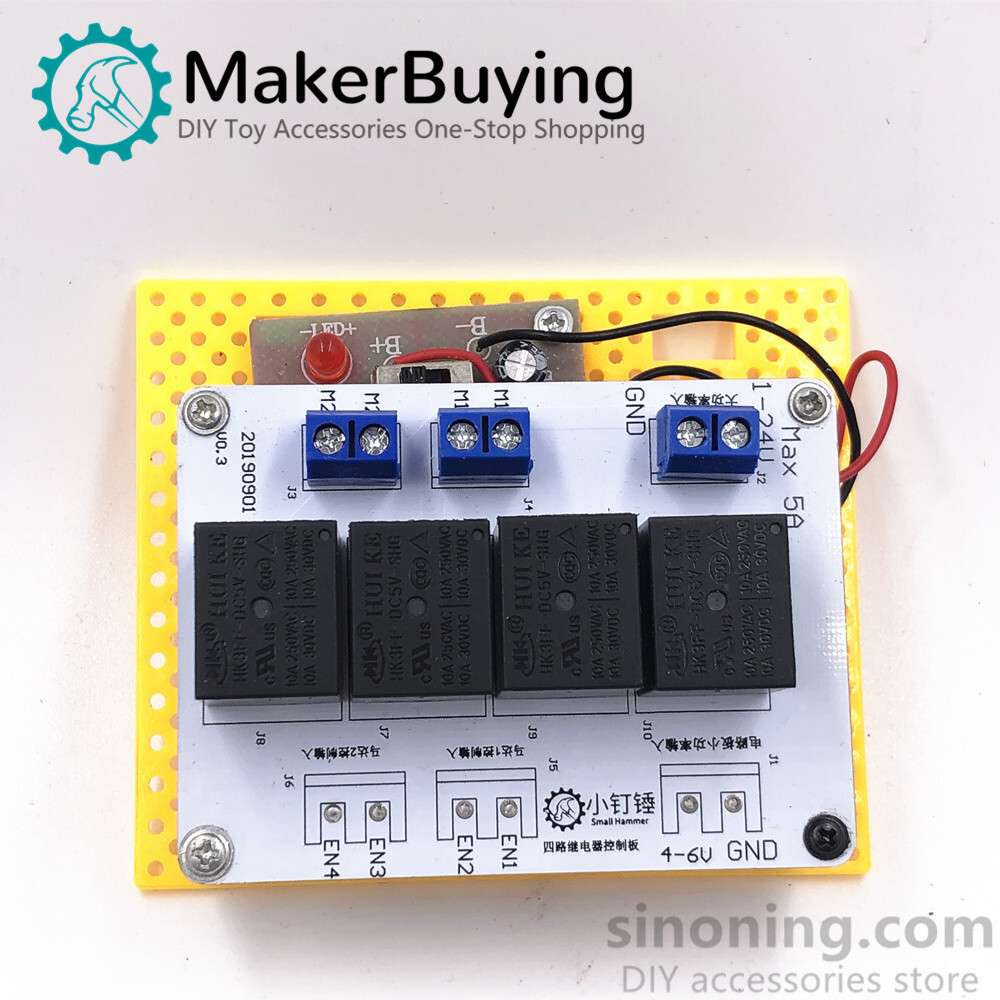

Remote control function of the road: The receiver uses the AA battery to control the switch of the relay module, and the relay module to control the power supply of the high-power motor.
The 2.4G wireless module can realize the application scenarios of controlling two different functions of the motor (1-24V). Does not interfere, and can improve the product’s better functional performance. Product application scenario: This product can be applied to multi-style DIY smart toys, through 2.4G wireless remote control smart toys, can achieve one way steering (forward and backward), multi-way steering ( Turn left and turn right) and rotate to achieve fast driving and emergency stop. Easy to use and easy to use product technical parameters and accessories: Line control: use 2.4G frequency wireless remote control, the best control range 30 meters remote control: power supply parameters: use 2 section 5th battery 1.5V (can use rechargeable battery) receiving module: power supply parameters: power supply battery box use 4 sections No. 5 battery 1.5V (rechargeable battery can be used) Receiver board size: Relay module:
Power supply parameters:
Input voltage: 1-24V (DC voltage)
Output voltage: 1-24V (DC voltage)
Output current: 0-10A ( DC current)
1. The battery must be carefully selected. Before installing the battery, first disconnect the power switch. It is best to use the same model and a fully charged battery.
2. This is a switch-type high-power remote control, which is equivalent to directly connecting the motor and the battery. There is no circuit conversion in between, so make sure that your battery can output high power, otherwise it may cause battery damage or battery fire.
3. Disconnect the power supply before connecting the power supply and the motor (motor), check the wiring and then power on again, so as to avoid the faulty line burning the module and the motor.
A remote control
A receiving device
The battery must be carefully selected
|State of Assembly|
