Size: approx. with total shaft length 317mm
Launch board: 2.2V -4.5V, (2-3 sections 1.2V lithium battery or 1.5V dry battery)
Receiver board: 3.6V – 10V (can only be charged with yellow toy, battery 4.8V or 7.2V, can not use ordinary 5th dry battery with no moving)
Model lithium batteries cannot be used.
A current greater than 2A will burn the receiver. (Do not return, do not change.) There will be a small amount of water when playing, you need to put the receiving board into the bag,
Distance: 100 meters and the antenna does not have to be lengthened! !
Frequency: high frequency 2.4G, to match the frequency, multiple sets at the same time, no serial number, stable signal
Power: High power Integrated motor driver chip on the receiving board MOS tube drive efficiency, power saving,
Not a triode drive! ! Each channel has a maximum of 2A current and does not burn the board, and the medium and small size within 380 models
Remote control frequency: high frequency 2.4G, automatic frequency matching after power-on, multiple sets of simultaneous use will not serial number signal stability,
The function of each button is as follows:
The top left button of the launch pad: When pressed, the left motor rotates and the right motor stops.
Press the button on the right side of the launcher: When pressed, the right motor rotates and the left motor stops.
Launcher forward button: When pressed, 2 motors rotate forward at the same time.
Launch pad back button: When pressed, 2 motors are reversed at the same time.

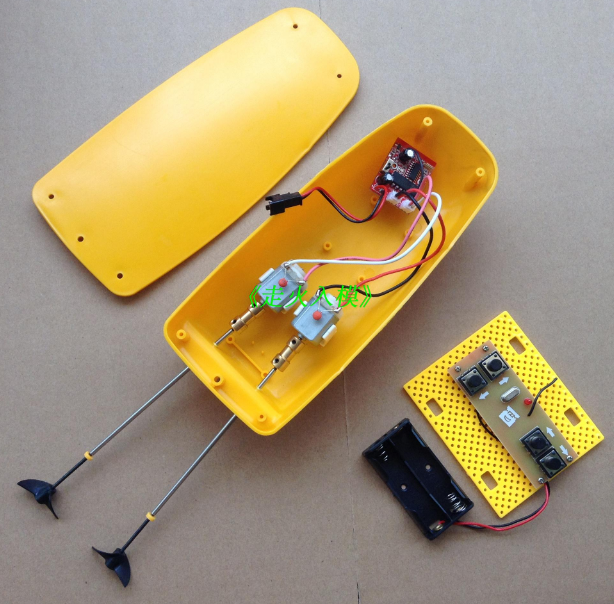

1 transmitter board
1 receiver board
1 yellow boat cover (including hull)
2 130 motors
2 motor brackets
2 copper connectors
2 drive shafts
2 propellers (front and back)
1 plastic plate
