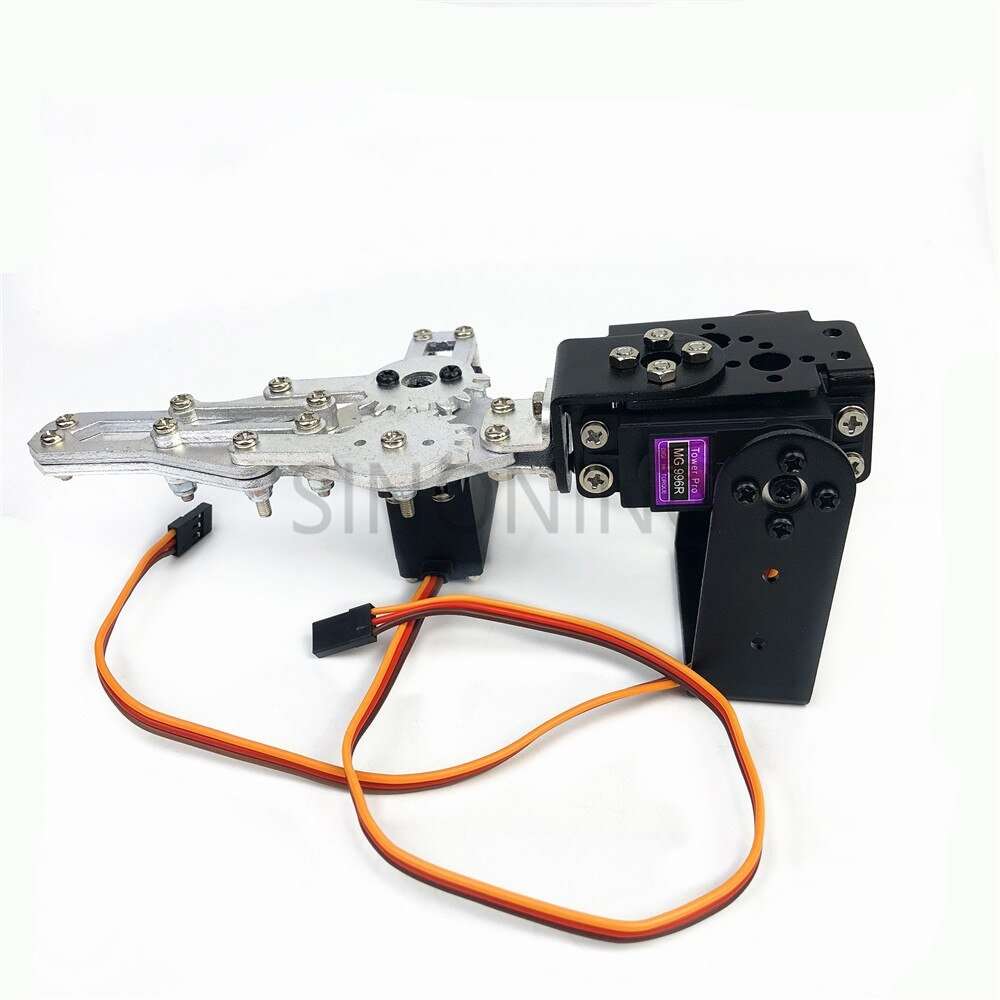

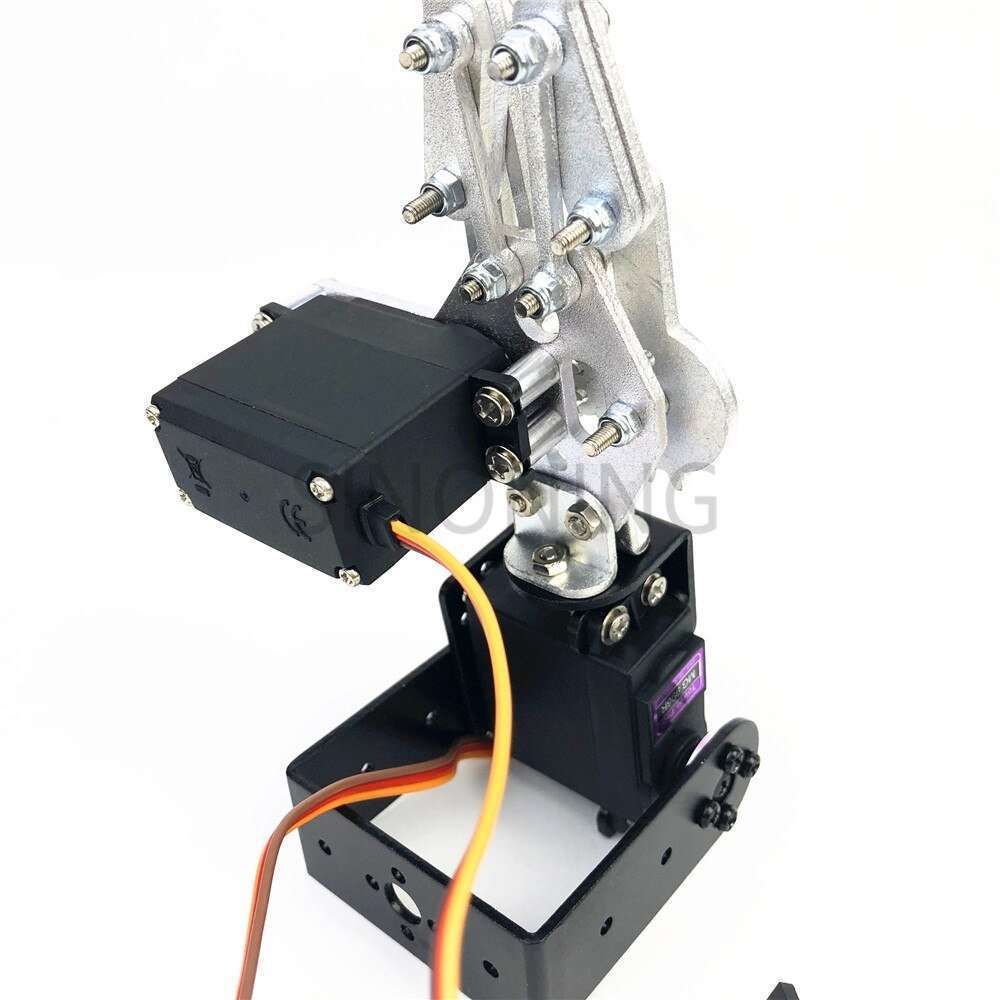

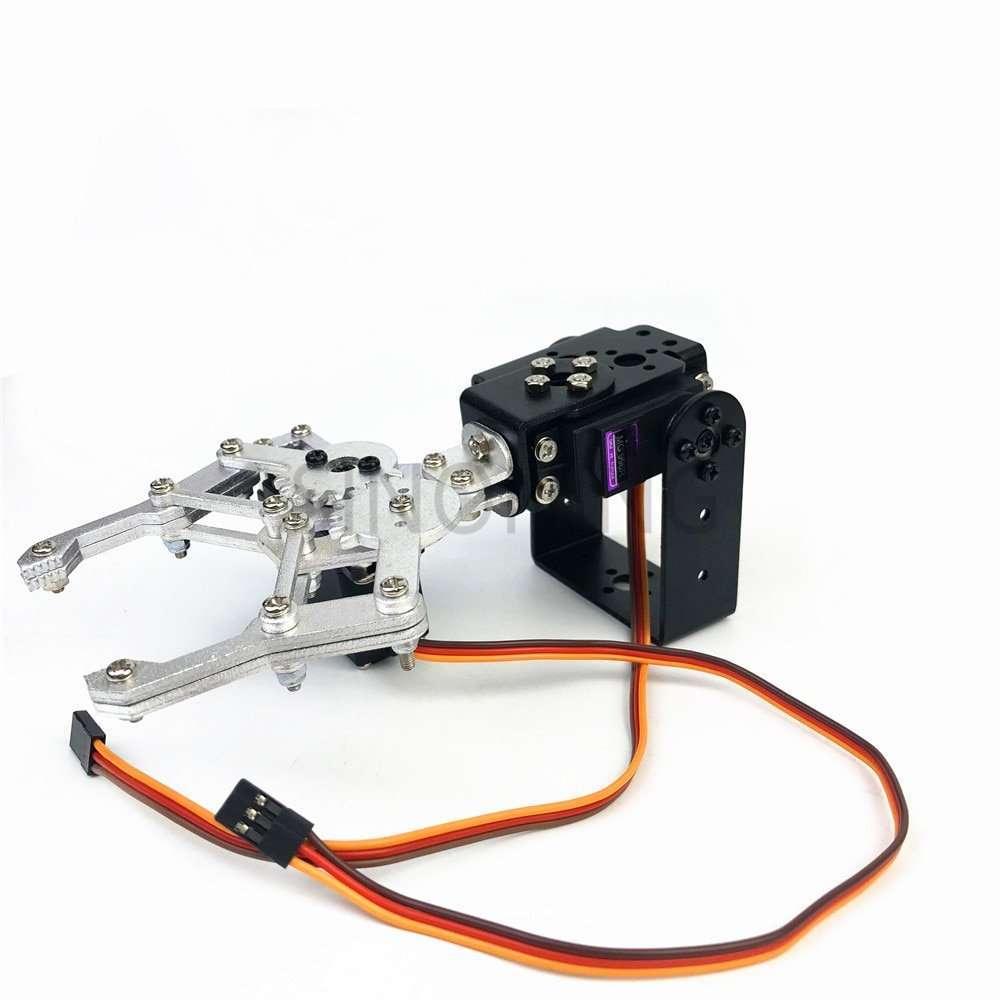

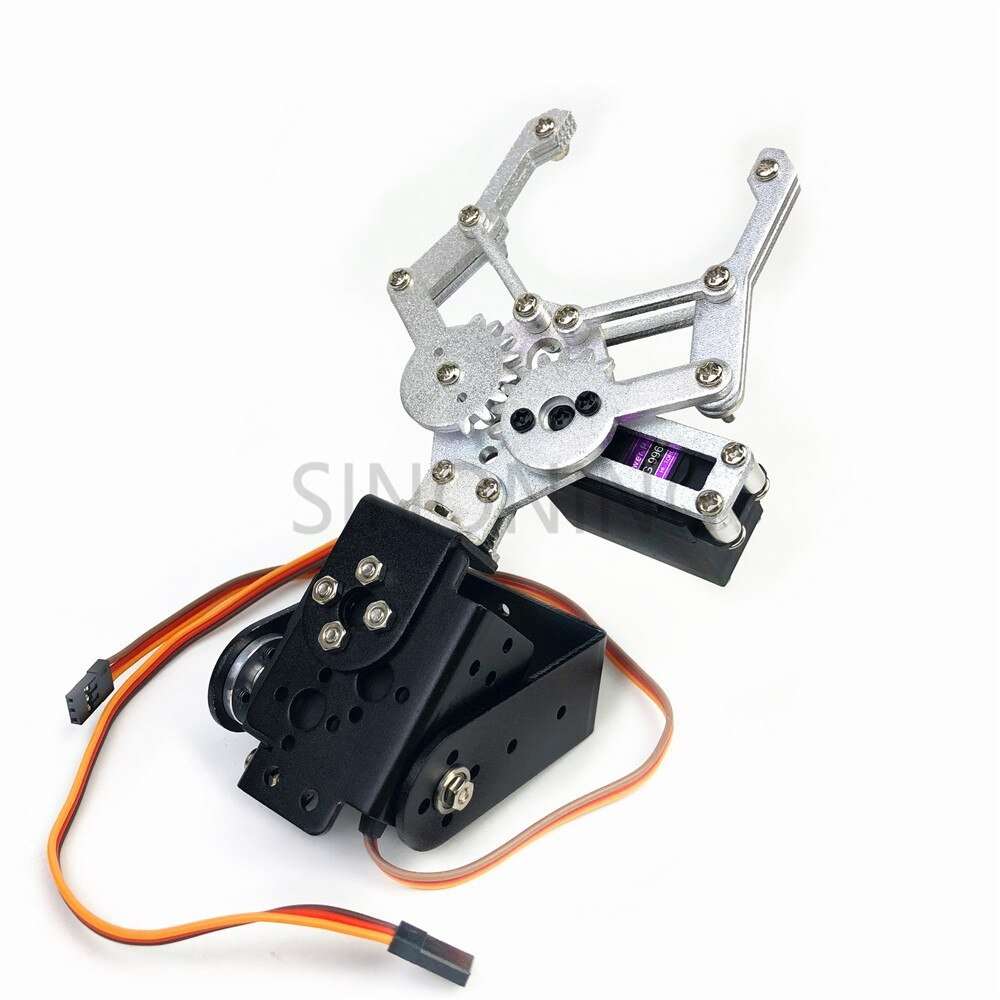

2DOF Aluminium Mechanical Robotic Arm Clamp Claw Mount Bracket Holder MG996R
Total package weight: 235 grams
Single mechanical gripper parameters:
Working voltage: 4.8-6V
Paw material: all aluminum alloy
Paw weight: about 68 grams (without steering gear)
Maximum paw angle: 50 mm
Overall length of the paw: 115 mm (the overall length of the paw is closed)
Overall width of the paw: 100 mm (maximum overall width when the paw is open)
MG996 steering gear properties:
Product size: 40.7*19.9*42.9 mm
Product pull: 15KG / 17 kg / 20KG / 25kgcm (6V)
Reaction rate: 0.17sec / 60 degrees (4.8V no load) 0.14sec / 60 degrees (6V no load)
Working voltage: 4.8-6V
Working temperature: 0°C-55°C
Gear form: metal gear
Working dead zone: 2us (microseconds)
Three lines of steering gear connector: yellow – signal red – positive brown – negative
The two-degree-of-freedom full set of brackets without a steering gear includes:
1x Mechanical paw
1x Multi-functional bracket
1x Long U-shaped bracket
1x L-shaped bracket
1x Cup bearing
2x Metal steering wheel
1x Mounted screw
