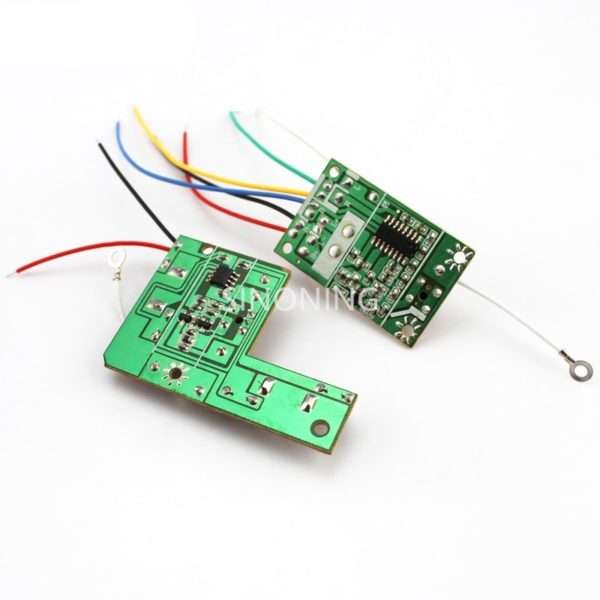

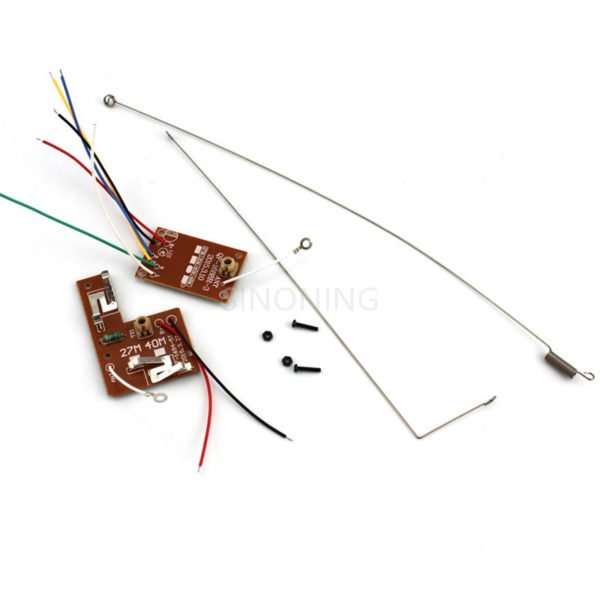

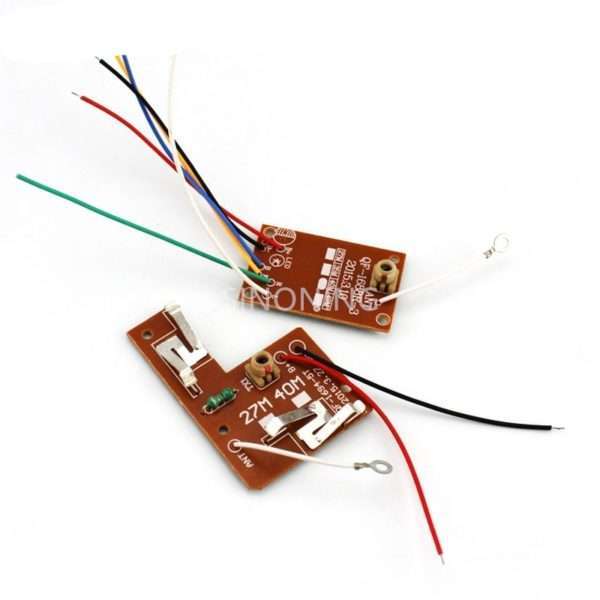

4CH RC remote control 27MHz/40Mhz circuit PCB transmitter&receiver board for toy car
SKU: SNRM12/SNRM13
Dimensions: 3.5 * 7 cm emission plate,

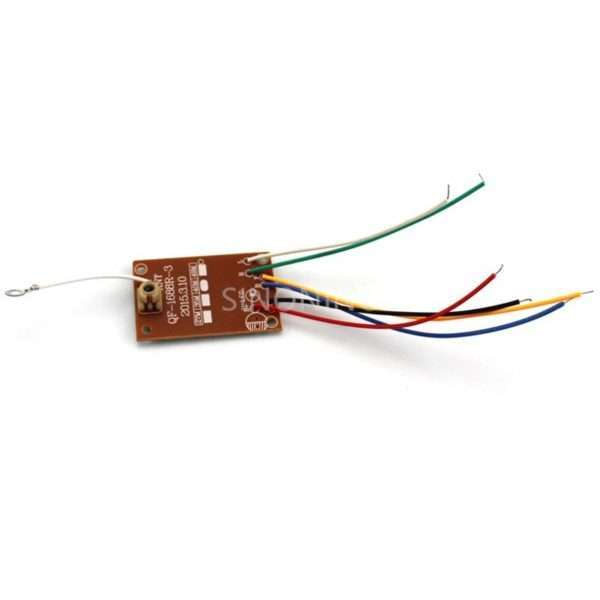

receiver board 2.6 * 4.3 cm;
Frequency: 27MHZ/40Mhz
emission plate voltage: 3-4.5V;
Receive board working voltage: 4.5v-6v;
Received board OUTPUT :4 lines,2v-3.5v
receiving range about 10meter
Connection method:

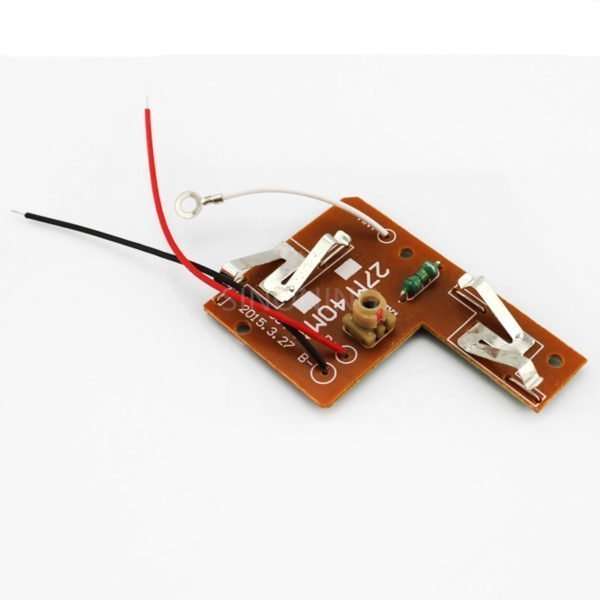

(A) emission plate: red V+ positive power supply, black wire V- negative power supply, ANT connect the antenna; 3-4.5V
(2) receiver board: black wire = negative power supply, red wire =positive power supply;
L R wire for motor 1 can supply continue powerful supply
F B wire for motor 2 can supply continuous power supply
Note:
note:only can use small power motor, such as 130 motors,
high power motor can burn the board.
it can control 2 motors go and back
…………..
what different between 20Mhz and 40 Mhz?
they are the same, only the frequency different, use a different frequency, they can play together at the same time.
