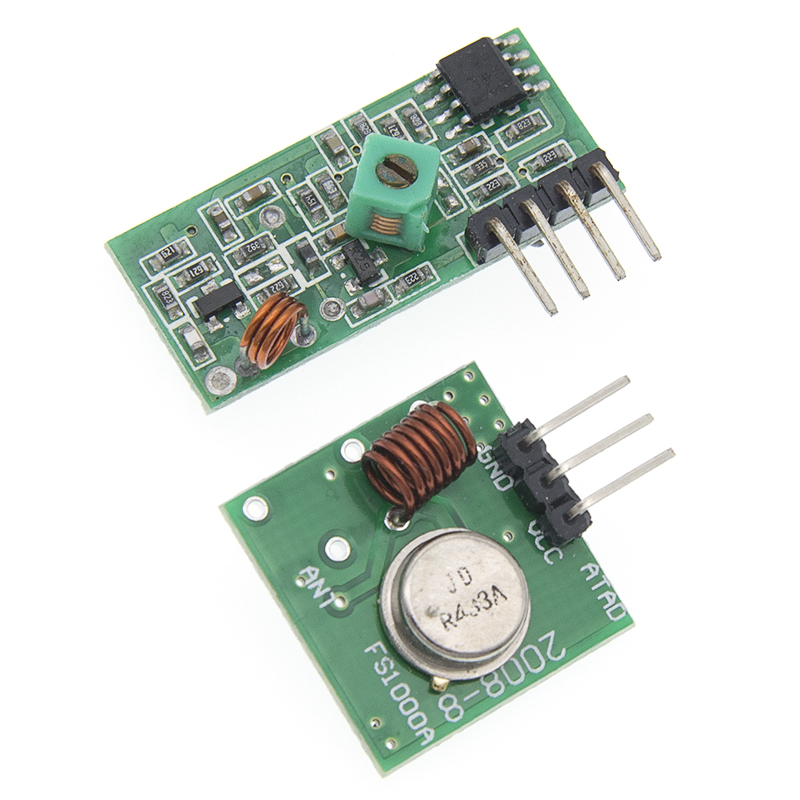

433Mhz RF Wireless Transmitter Module and Receiver Kit 5V DC 433MHZ Wireless For Arduino Raspberry Pi /ARM/MCU WL Diy Kit

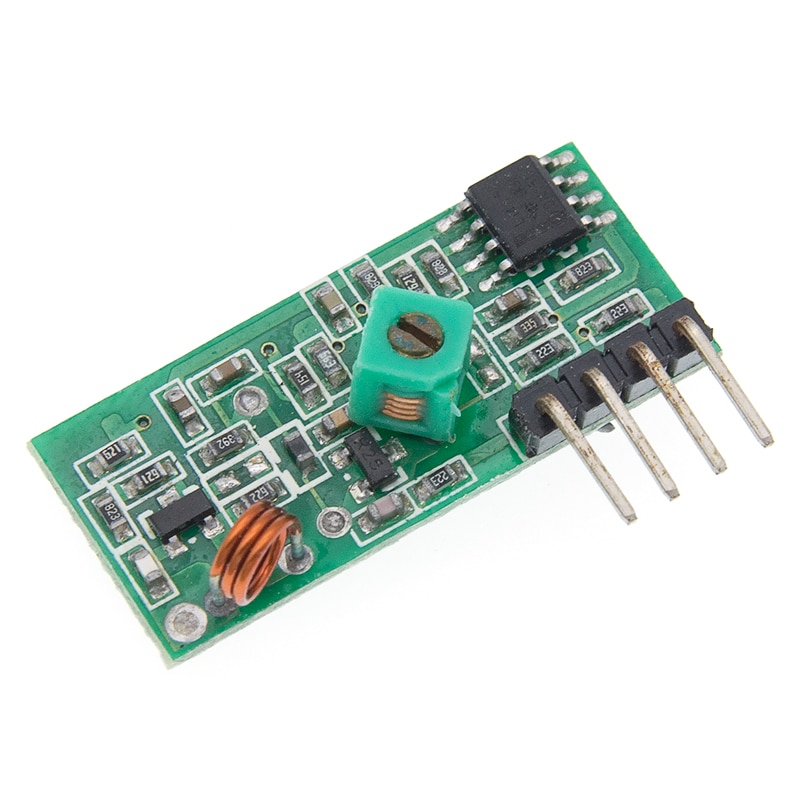

Receiver
– Model:MX-05V
– Voltage:DC5V
– Current:4MA
– Frequency:433.92MHZ
– Sensitivity:-105DB
– Antenna:32CM single core wire,heliciform shaped
– Size:30*14*7mm

Transmitter:
– Model:MX-FS-03V
– Transmitter distance:20-200Meters(influenced the voltage)
– Voltage:3.5-12V
– Size:19*19mm
– Working mode:AM
– Transmitter speed:4KB/S
– Transmitter power:10mW
– Frequency:433M
– Attenna:25cm Single core wire or mutil-core wire
– Pin arrangement: left-right(DATA;VCC;GND)

Applications:
– Remote controller,receive modulr,car bugular alarm,Rolling door,window,remote control LED, Amplifer and so on.

Note:
– VCC Voltage should be comply with working voltage
– Antenna is very important for working voltage,and the length of the antenna is 17cm
– the placement of the antenna is also critical for the performance of receiver, unbend the antenna when you install it , and avoid shilder and high voltage
