2.4G 4 channel ultra-high power remote control kit 6 9 12 20v tank car ship
This product is a self-developed multi-channel control high-power toy remote control kit, which can realize multi-channel control of 6v, 9V, 12v, 24v series of DIY smart toys (cars, tanks, boats, etc.), which can achieve flexible control, diversification and Simple operation.
When this product achieves multi-channel control, the power supply module and the wireless control module are used to co-process the multi-channel remote control function of the entire product: the relay module controls the power supply of the high-power motor, and the 2.4G wireless module can realize the control of 2 (1-24V) Application scenarios for different functions of the motor, each module does not interfere with each other, and can improve the product’s better functional performance.
Product application scenarios:
This product can be applied to many styles of DIY smart toys. Through 2.4G wireless remote control smart toys, it can realize one-way steering (forward and backward), multi-way steering (left turn and right turn) and rotation, which can realize fast driving and emergency stop, operation Simple and easy to use
Product technical parameters and accessories:
Wireless control: use 2.4G frequency wireless remote control, the best controllable range is 30 meters
Remote control: power supply parameters: use 2 AA batteries 1.5V (rechargeable batteries can be used)
Receiving module: 5-20V
Maximum output current: 5A
Receiving board size: 90mmx75mmx40mm
Power supply parameters:
Input voltage: 5-20V (DC voltage)
Output voltage: 5-20V (DC voltage)
Output current: 0-10A (direct current)
The selection of the battery must be cautious. The power switch must be turned off before installing the battery. It is best to use a battery of the same model and sufficient power.
This is a switch-type high-power remote control, which is actually equivalent to directly connecting the motor and the battery without any circuit conversion, so make sure that your battery can output high power, otherwise, it may cause battery damage or battery fire.
Before connecting the power supply and the motor (motor), disconnect the power supply, check that the wiring is correct, and then re-energize, so as not to connect the wrong wiring to burn the module and the motor.

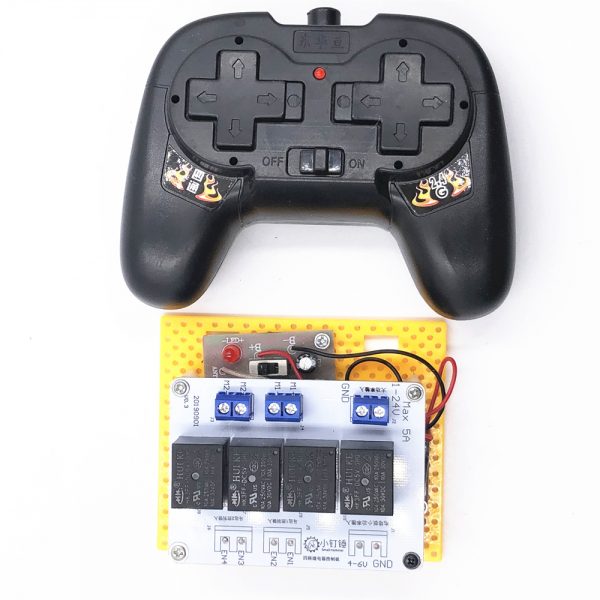

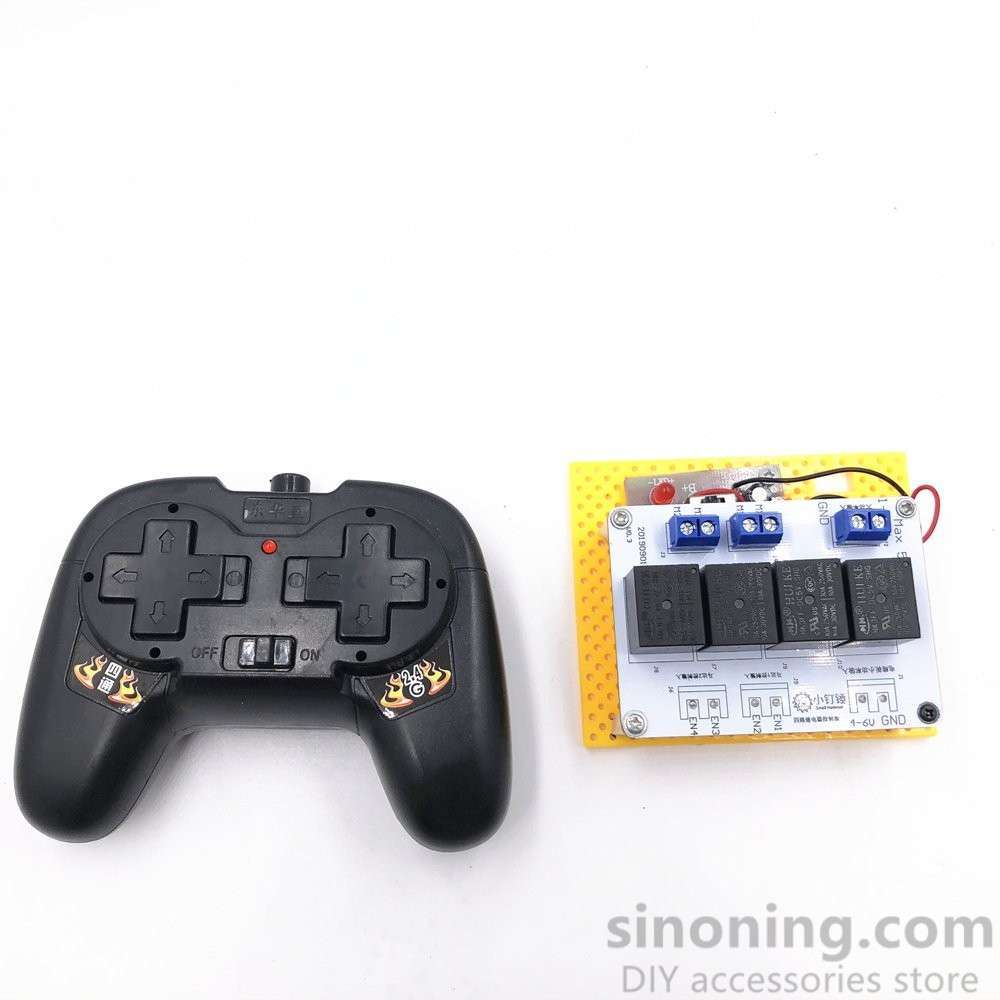

A remote control

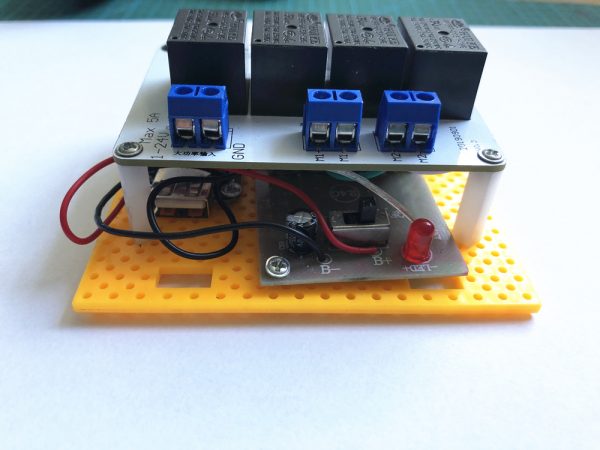

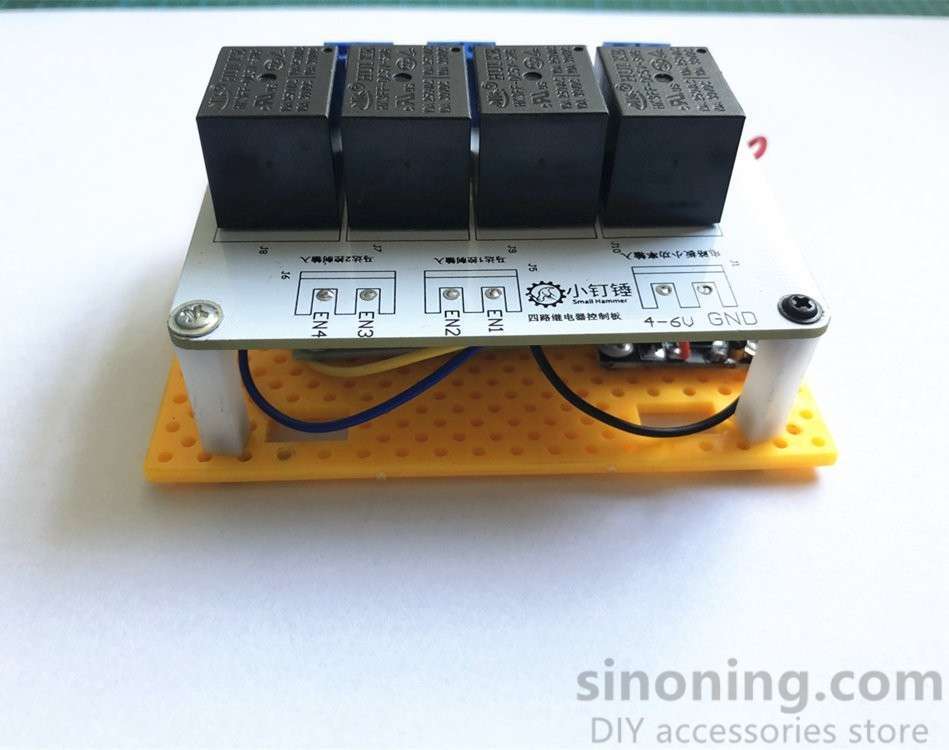

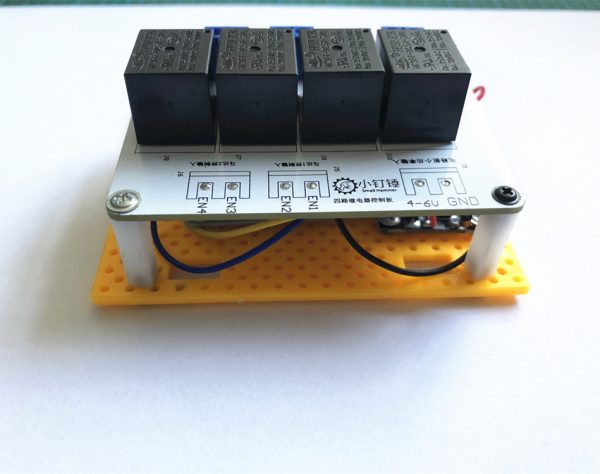

A receiving device
