5Pcs TTP223 Touch Key Switch Module Touching Button Self-Locking/No-Locking Capacitive Switches Single Channel Reconstruction

(0 customer reviews)
Availability:

95012 in stock

2 Sales



$1.31$2.31

Blue 5 piecesRed 5 pieces
Clear

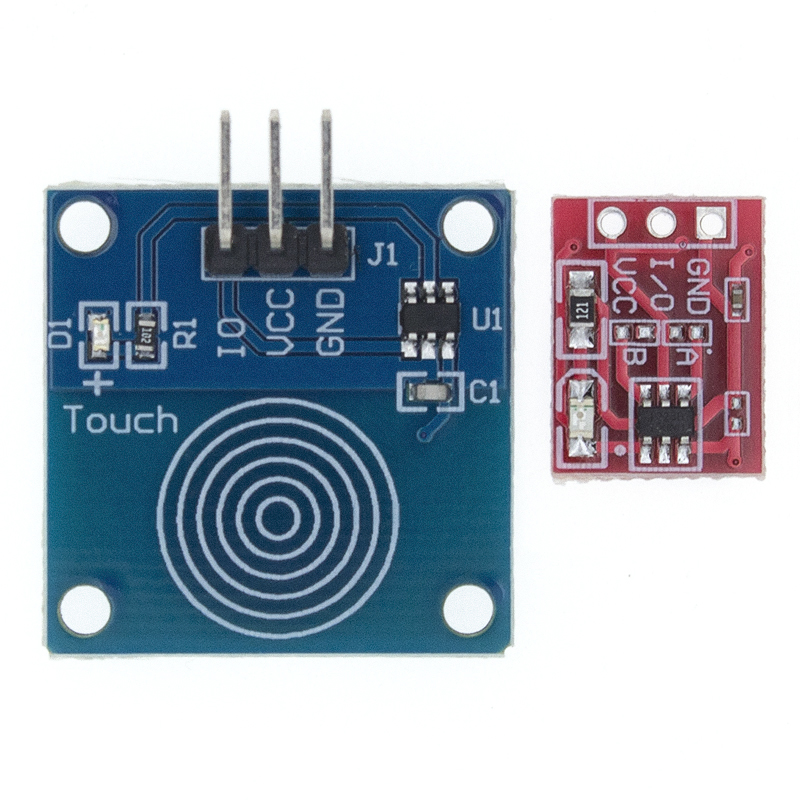

Red borad 1.Size:15*11mm
2.Power:2.5-5.5V

Trigger setting mode: (1- > Short ; 0- > No Short)
AB=00:No-lock High TTL level ouput;
AB=01:Self-lock High TTL level ouput;
AB=10:No-lock Low TTL level ouput;
AB=11:Self-lock Low TTL level ouput; Blue board The module is based on a touch-sensing IC (TTP223B) capacitive touch switch module. In the normal state, the module output low, low power consumption; When a finger touches the corresponding position, the module output high, if not touched for 12 seconds, switch to low-power mode. Features:
  • Low power consumption
  • Power supply for 2 ~ 5.5V DC
  • Can replace the traditional touch of a button
  • Four M2 screws positioning holes for easy installation

Item

Min

Typical

Max

Unit

Power supply voltage VCC

2.0

3

5.5

V

Output high VOH

0.8VCC

V

Output low VOL

0.3VCC

V

Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V)

8

mA

Output pin pull-up current (@ VCC = 3V, VOH = 2.4V)

4

mA

Response time (low power mode)

220

mS

Response time (touch mode)

60

mS

Size

24x24x7.2

mm

Weight

2

g


SKU: 32788526867 Category:
Brand Name

TENSTAR ROBOT

Condition

New

Type

Voltage Regulator

Model Number

TTP223

Application

Computer

Operating Temperature

1

Supply Voltage

1

Dissipation Power

1

Package

SMD

is_customized

Yes
