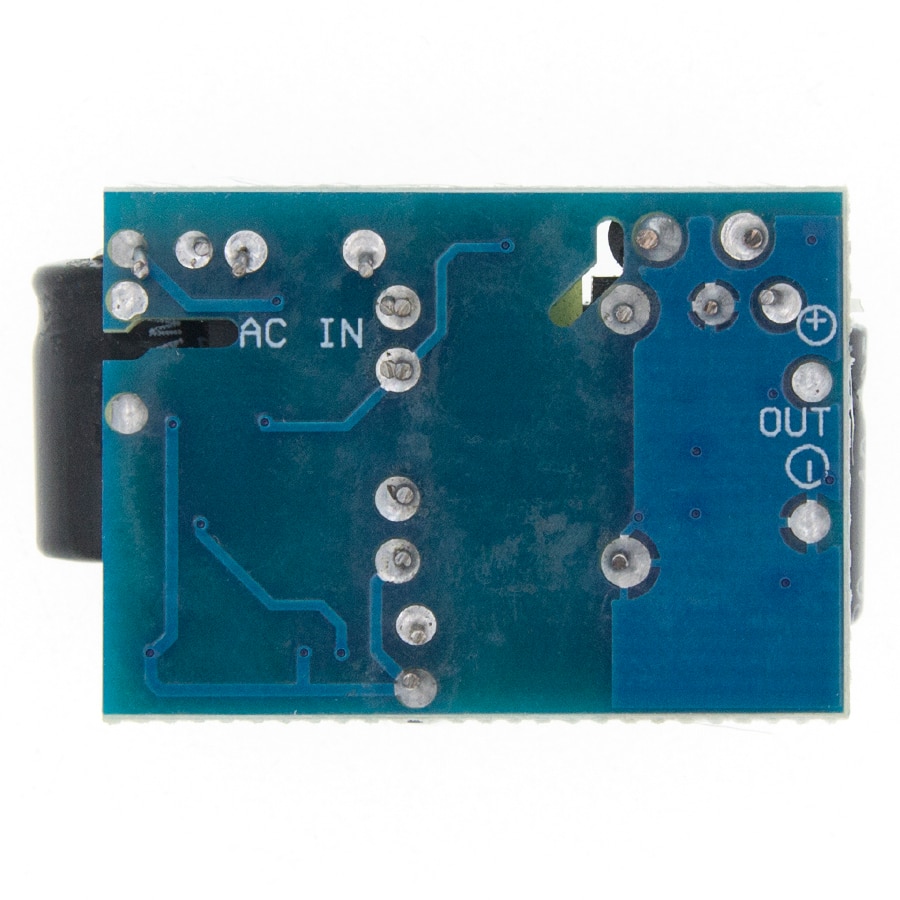

5V 700mA (3.5W) isolated switch power supply module AC-DC buck step-down module 220V turn 5V
Availability:
96884 in stock
Sales 1
$1.98
96884 in stock
Features:
100% Brand new and high quality!
This power source for the isolation industrial-grade module power supply, temperature protection, over current protection and short circuit protection, high and low voltage isolation
AC85 ~ 265 v wide voltage input, ac/dc current ,431 precision voltage stability DC5V output
Small size, stable performance, cost-effective
Specifications:
Condition: brand new
Quantity: 1PCS
Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v
Imput current: 0.0273A(AC110V) 0.014A(AC220V)
Input Inrush Current: 20A
Output voltage: DC 5V (+ / – 0.2 V)
Output current 700 mA
Power 3.5 W
Operating temperature -20~60 degree
Relative humidity 40-90%RH
Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV
Output power:0-4W(DC current)
Output efficiency: 80%
Switch machine overshoot: MAX 10%
Output voltage rise time: MAX 100MS
Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery
Output over power protection:YES ,recovery:Lock, restart after recovery
Short-circuit protection: YES, automatic recovery after problem solved
Temperature protection: YES,recovery:Lock, restart after recovery
Overcurrent protection: YES,recovery:Lock, restart after recovery
| Brand Name | TENSTAR ROBOT |
|---|---|
| Condition | New |
| Type | Voltage Regulator |
| Model Number | 1 |
| Application | Computer |
| Operating Temperature | 1 |
| Supply Voltage | 5 |
| Dissipation Power | 1 |
| is_customized | Yes |
