1.Introduction

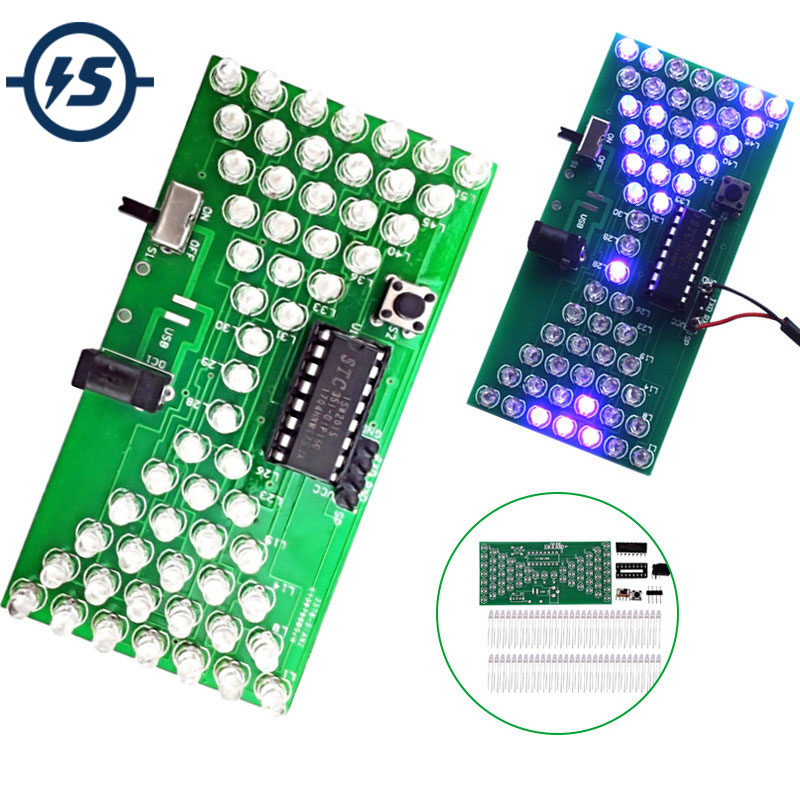

The suite adopts 1.6mm double layer PCB, and the circuit consists of 57 pieces warm white LED. Under the control of MCU program, it displays analog hourglass image. The micro switch can adjust the speed of hourglass, the bright LED quantity at the same time is 28, and it can be used as decoration of small night light. 0.5W power consumption.

2.Parameter

1>.Board Size:84*40mm

2>.Power Supply Voltage:5V

3.Principle explanation

The circuit consists of 57 3mm white hair blue LED composition of the hourglass pattern.In the control of the microcontroller, showing the effect of simulated hourglass.S1 is power switch,USB(Do not include in kits) and DC1(3mm power socket) are all power input interface,you can use any of them.ISP is the program download interface.Controller is SC15W201S with code(NOTE:Do not update the code inside arbitrarily,the internal code is not shared).If user can write code,user can update code by ISP interface.Switch S2 can control the speed of hourglass.

4.Schematic

5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic

5.Component listing

5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic

NOTE:Users can complete the installation by PCB silk screen and component listing

6.Component Description

5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic

1>.57pcs 3mm white LED

2>.1pcs Toggle Switches

3>.1pcs Button

4>.1pcs DIP-16 IC Socket

5>.1pcs DIP-16 STC15W201S

6>.1pcs Power Socket

7>.1pcs 4P Male Pin

8>.1pcs PCB

5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic

5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic5V Electronic Hourglass DIY Kit Funny Electric Production Kits Precise With LED Lamps Double Layer PCB Board DIY Electronic



SKU: 32826286980 Category:
Brand Name

IS

Condition

New

Type

Logic ICs

Package

Other

Dissipation Power

none

Model Number

Electronic Hourglas

Application

Other

Operating Temperature

-25-85 Celsius

Supply Voltage

5V

is_customized

Yes

Board Size

84*40mm

Power Supply Voltage

5V

Name

electronic diy kit

model

electronic kits
