6DOF robot arm Manipulator PS2 Remote Control Kit 6DOF Arduino Control Learning Kit DIY SNAR22

6DOF Manipulator Control Kit 6DOF Arduino Control Learning Kit DIY

6 degrees of freedom arduino control board

Product introduction:

This is an arduino-based development board that has integrated arduinouno and does not require an additional arduino. The board is designed for 6-DOF manipulator control. It can control 6 mg996 servos. With the ps2 remote control, the remote control arm can be realized.

Features:

• Integrated arduinounoAtmega328

• Provide six-way servo interface

• Provide arduino control code

• Provide ps2 receiver jack

Product Specifications:

Input voltage: 6-12v

Maximum current: 4A

PS2 remote control set

Feel comfortable, fast connection, fast response, no delay!

The wireless controller has an automatic sleep function. If it is not operated for a long time, (the power saving module will be activated), then it will automatically sleep. At this time, just press START to activate!

Use 2 AAA (size 7) batteries, battery life is about 10 hours or more

★ Support multiple signals, control at the same time, do not interfere with each other.

★ With power indicator and MODE indicator.

Wireless frequency: 2.4GHz

5V6A power supply

Suitable for models: 365,900,000 series

Working range: 8 meters, 45 degrees angle

Product model: EADP-30NBD

Input parameters: 100V-240VAC, 50/60HZ, 0.8A

Output parameter: 5A6V

Output power: 30W

Interface specification: 5.5mm*2.1mm with circlip

Output line length: 1.8M

Product shell size: 1265232MM

Product Note: If you don’t know if your machine can use this adapter, you can check whether the output parameters (voltage, current) of your original adapter match. If the original adapter is lost, you can check the parameters at the bottom of the computer or your machine. instruction of.

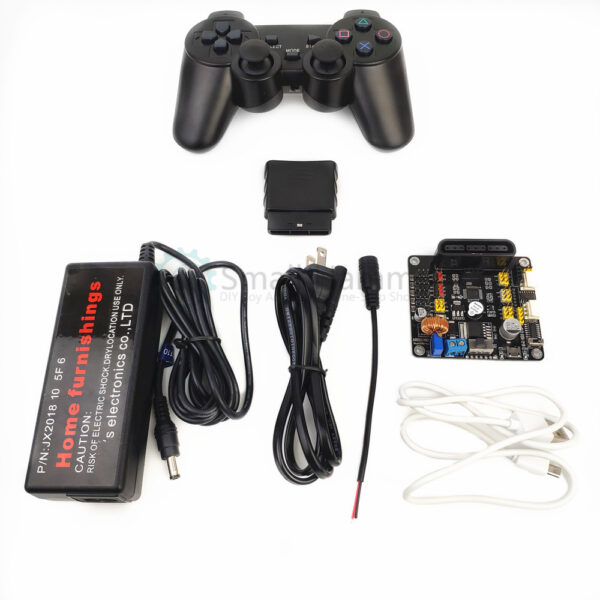

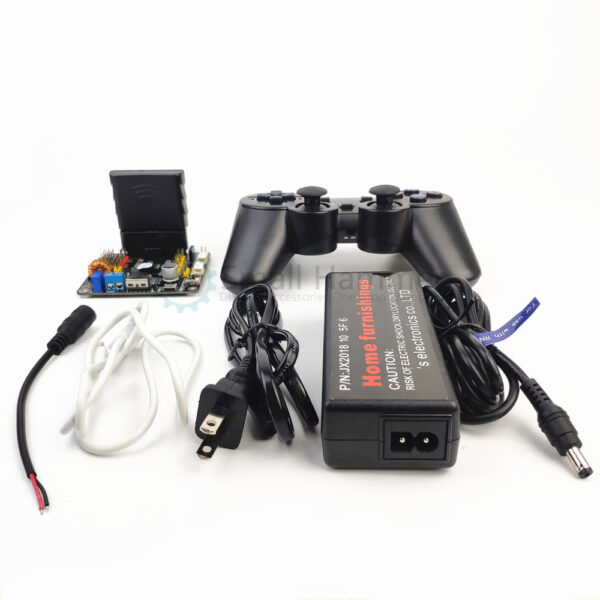

Shipping list:

1, 6 degrees of freedom arduino control board

2, PS2 remote control set

3, 5V6A power supply

4, black DC male and female have no lock on the joint
