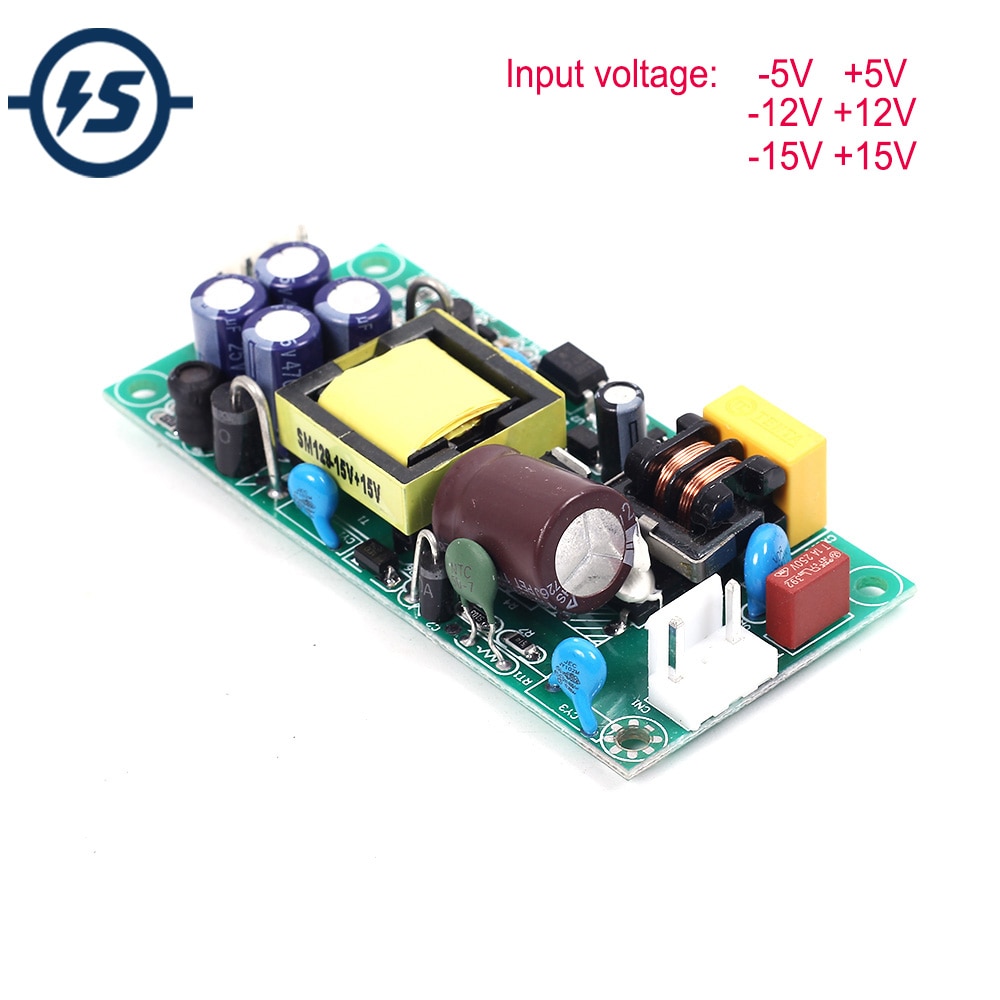

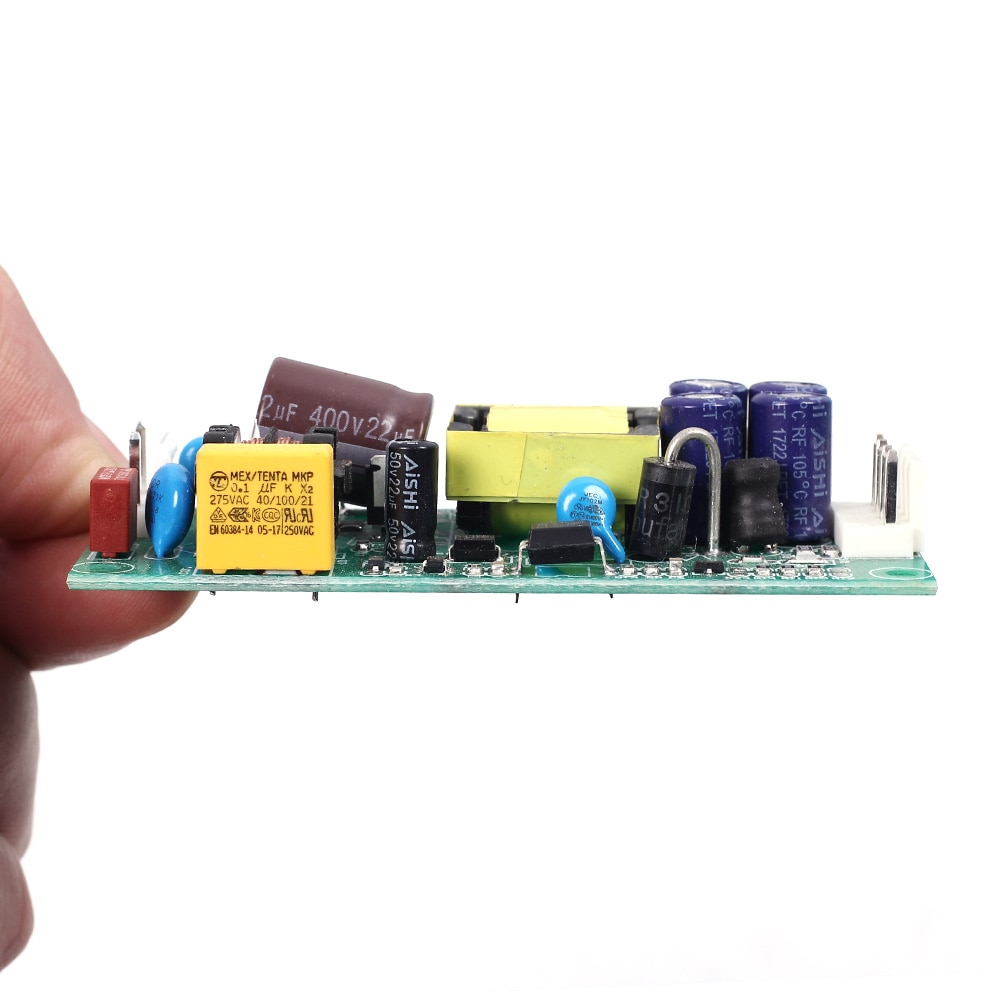

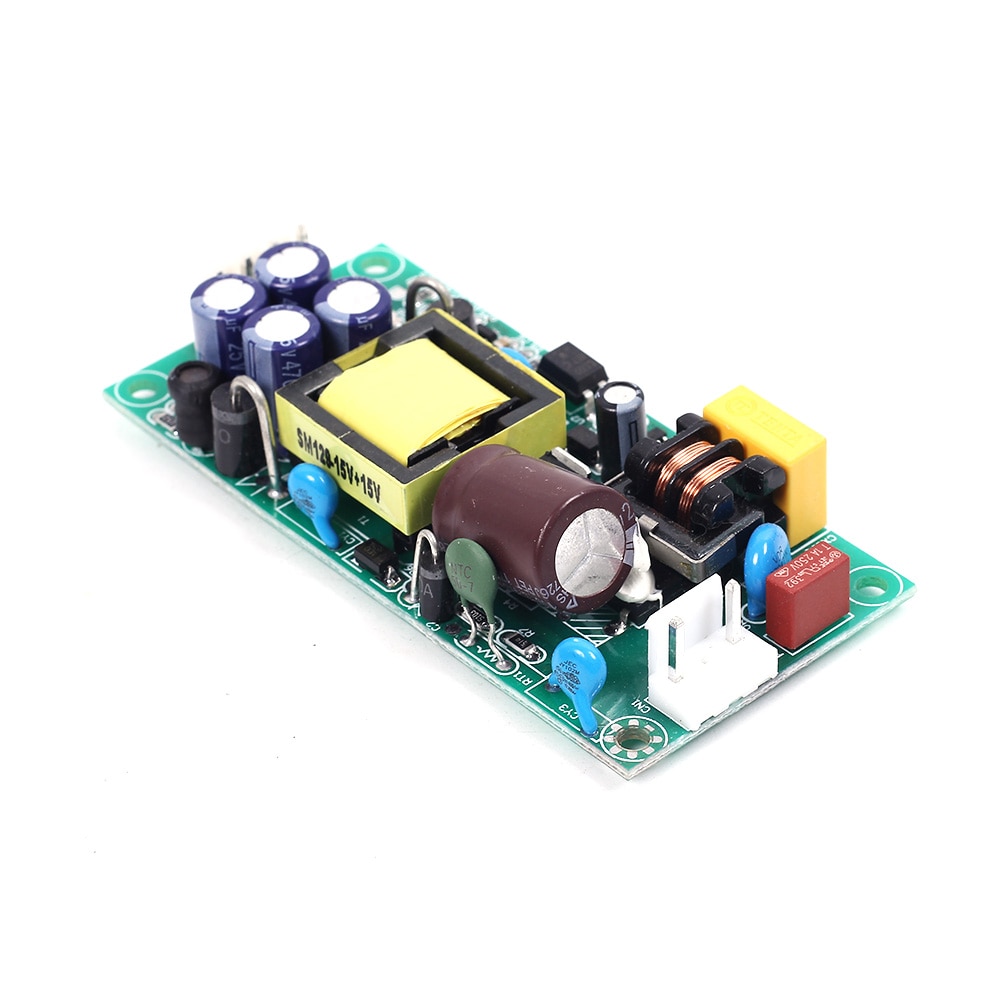

AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator

Availability:

1138 in stock

Sales 68

$8.08$8.98

-12V 12V-15V 15V-5V 5V
Clear
AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator

AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator
AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator
AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator
AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator
AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator
AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator
AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator
AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator

AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator

1. Features:

1>. The product is easy to install and can be used in the hole welding line.

2>. There are fixed mounting holes in the corners to prevent the movement/vibration of the product without power, and the fixed hole is 3.2mm.

3>. Universal input voltage: 85-265V AC or 110-370V DC.

4>. High efficiency, low output ripple noise, double isolation output, high output voltage of main road (VO1).

5>. Input and output high isolation.

6>. With over-current protection, short circuit protection and temperature protection.

7>. The output is built in double – channel LC -π type filtering without external circuit.

2. Input characteristic:

No.

Input

Value

1

AC input(VAC)

85-264

2

DC input(VDC)

110-370

3

Frequency range(Hz)

47-63

4

Input current(A)

1/115VAC 0.5/230VAC

5

Surge current(A)

Cold start:20A/230VAC

6

Workpiece ratio(TYP.)

69

7

Stand-by consumption(mA)

≤1W/230VAC

3. Output characteristic:

Input voltage(VDC)

± 15V

Input voltage precision

Main circuit:±1%, Side circuit: ±10%

Rated current(ADC)

0.55A

Rated power (W)

17W

Ripple and noise(mvp-p>

Rated input voltage, 20MHz band width

V01(V+)Main circuit:50mV

V02(V-) Side circuit:100mV

Line Regulation

Full load

±1%

Load Regulation

10-100% load

±3%

Start/up time

Full load

2000ms, 30ms/115VAC

1000ms, 30ms/230VAC

Maintain (ms)

Full load

16ms/115 VAC ;50ms/230VAC

Overload protection

Rated input voltage

115%-150% of rated output power

Protection mode: hiccup mode, the abnormal condition of abnormal load can be automatically returned.

Short-circuit protection

Rated input voltage

Long – term short circuit, self – recovery

Over-current protection

>1.1 time Io

Start delay time(ms)

Vin:230 VAC

500ms

Power-off protection time(ms)

20ms

4. General characteristic:

Working temperature(℃)

/

-30 to 70

Working humidity(RH)

/

20 to 90%, non-condensing

Temperature drift coefficient

/

±0.02%/℃

Storage temperature and humidity

-40 to 85 Celsius 10-95%RH

Switching frequency(KHz)

60

Insulation voltage(VAC)

Input to output
Test 60s, ≤5 mA

2000

Insulation resistance (M Ohm)

Input to output500VDC

100

Leakage current(mA)

500VDC

Input to output ≤ImA/RMS Value

MTBF

@25 Celsius

215000h

Safety class

/

Suitable for: CLASS B

Beam vibration

/

10—500Hz 2G 10Minutes/cycle. X, Y, Z 60minutesrespectively

electromagnetic compatibility

/

Suitable for:EN55022(C1SPR22)Class B EN61000-3-2,-3

Remark

1. Except for special instructions, the parameters of this specification are measured at 230VAC, rated load and 25c ambient temperature.
2. Ripple and noise measurement method: use a 12 “twisted pair, and the terminal shall be connected in parallel with the capacitance of 0.1uf and 10uF, and shall be measured at 20MHz bandwidth.
3. Accuracy: including the rounding error, linear adjustment rate and load adjustment rate.
4. The power supply shall be regarded as part of the internal components of the system, which shall be confirmed by electromagnetic compatibility with the terminal equipment.
5. The output should be reduced under low input voltage.

5. Wiring instruction:

1>. Typical circuit:

AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator

Output:

Output voltage

C1/C3

C2/C4

TVS

5V

C1: 47uF/25V

C3: 100uF/35V

IUF/50V

SMBJ7.0A

7V

SMBJI2.0A

12V

SMBJ20.0A

24V

SMBJ30A

Remark:

C1: connection/coupling filter electrolytic capacitors.High frequency low resistance capacitance is recommended. The noise from the connector can be removed when the capacitance pressure drop is greater than 75%.

C2: ceramic capacitors to remove high frequency noise.

TVS: protection of the back – level circuit when the power supply is abnormal. Recommended.

C1, C2, C3, C4: the product with no requirement for power output ripple is not used.

2>. Emergency solution–Recommended circuit:

AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator

Input:

Component No./ Recommended component

Function

Recommended value

CX1 capacitance

Restrain the interference of common mode, improve the anti-jamming ability and reliability of the system.

0.22uF/275VAC

R1/R2: leakage resistance.

1M ohm 1/2W

NF: common mode inductance.

10 mH-30 mH

6. Pin definition:

AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator

AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator

AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage RegulatorAC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage RegulatorAC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage RegulatorAC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage RegulatorAC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage RegulatorAC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage RegulatorAC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator

AC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage RegulatorAC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage RegulatorAC DC Voltage Step Down Module Dual Output AC 85V-265V to DC +/-5V +/-12V +/-15V DC DC Step Down Module Voltage Regulator
