Colorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart Shaped

Availability:

2093 in stock

Sales 1

$4.38$10.54

GreenWhite
Clear

Colorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart Shaped

About Green Model:

1. Introduction

This is a DIY Heart Shape breathing lamp kit parts . You need solder it by yourself.

2.Parameter

NO.ParametersValue
1NameHeart shape led
2Operating voltageDC 4.5-5V
3Difficulty of welding machineEasy
4Circuit board size108*98*17mm
5Light colorColorful
6Power supply modeUSB
7Circuit board material1.6mm RF-4
8Board colorGreen

3. Warm tips

This is the delivery suite of parts, you need welding installation. SCM has written code, successfully tested.

4. Remote control instruction

Colorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart Shaped

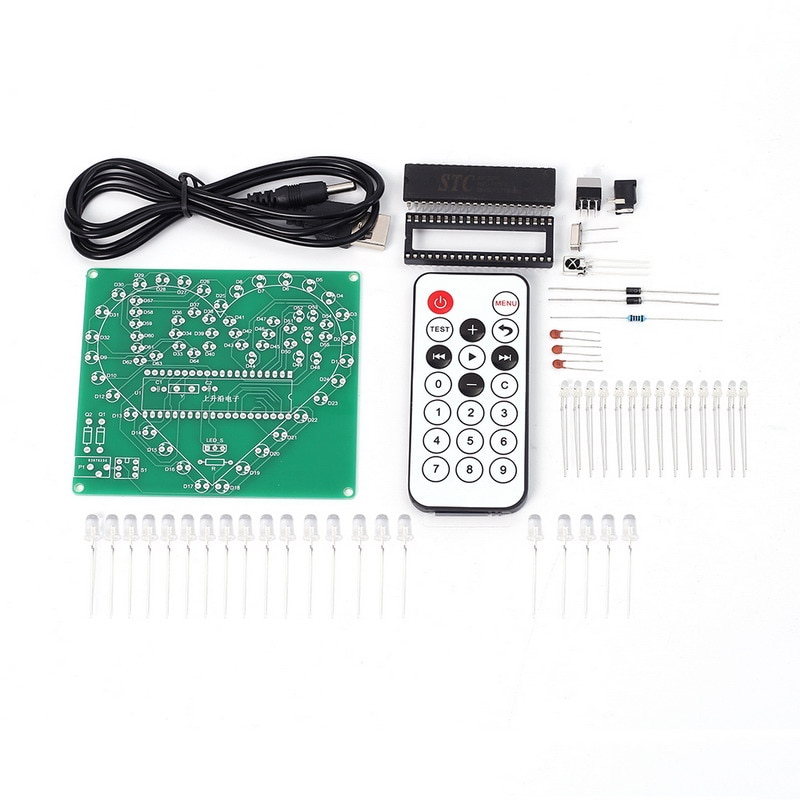

5.Component listing

NO.Component NamePCB MarkerParameterQTY
1Ceramic CapacitorC1,C227pf2
25mm LEDD1-D31RGB31
33mm LEDD33-D63Blue31
4HX1838 Infrared ReceiverLED_S1
53.5mm Power SocketP11
6IN4007Q1,Q22
7Metal Film ResistorR10K1
8Self-Locking SwitchS11
9IC SocketU1DIP-401
10STC89C52U1DIP-401
11CrystalY12MHz1
12PCB1

NOTE:Users can complete the installation by PCB silk screen and component listing.

About White Model:

1. Description:

This is a DIY Heart Shape breathing colorful lamp with white kit parts. You need solder it by yourself.

2. Parameters:

Parameters

Value

NameHeart shape led
Operating voltageDC 5V
Difficulty of welding machineEasy
Circuit board size78*83mm
Light colorColorful
Power supply modeUSB charger, Portable battery,Computer
Circuit board materialDouble-faced 1.6mmRF-4
Board colorWhite

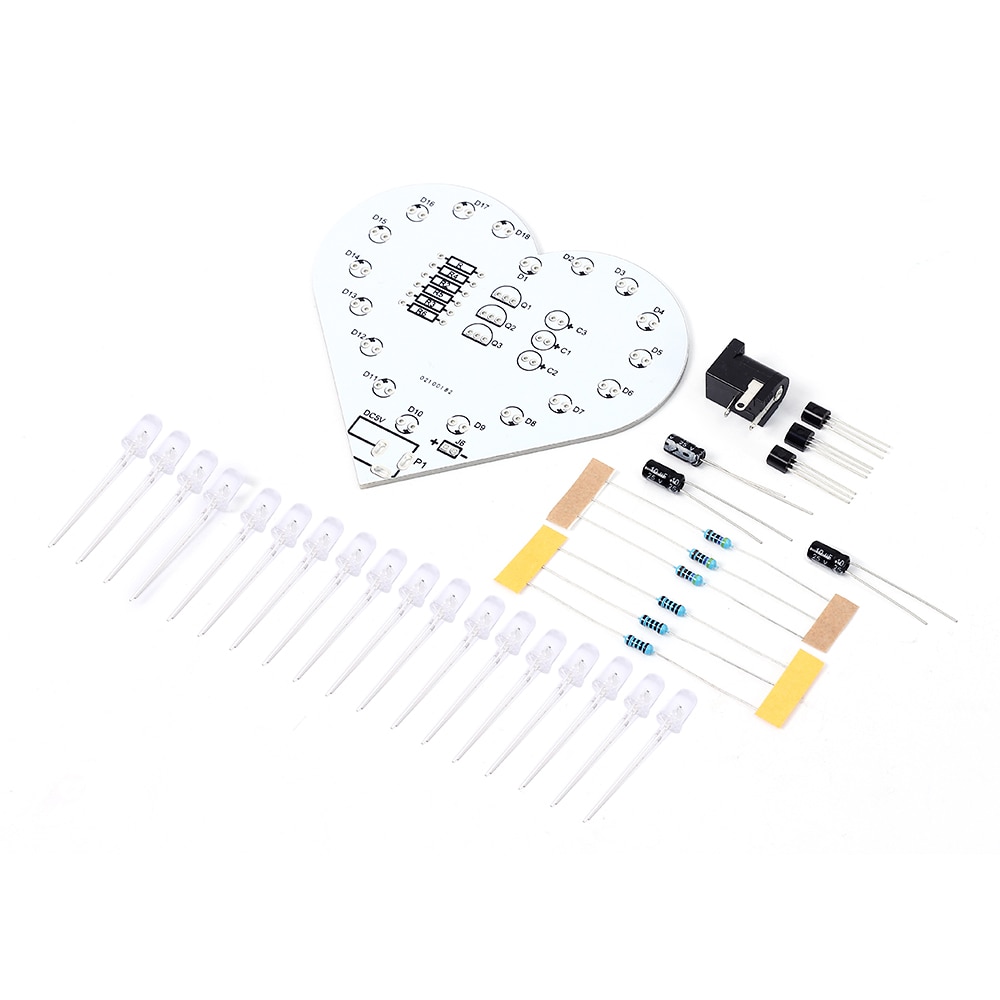

3.. Component list:

No.

Signs

Name

Specification

Quantity

1

R1, R2, R3Resistance4.7K3

2

R4, R5, R6Resistance100R3

3

Q1, Q2, Q3Audion90143

4

LED1-LED18LED5mm colorful18

5

DC base1

6

C1, C2, C3Electrolytic capacitor3

7

PCB board1

4. Install tools:

1>. Electric iron one (power is best at 40W)
2>. Solder wire reel (diameter is best about 0.8mm)
3>. A number of solder paste or rosin
4>. Scissors pliers
5>. Component box (store the small components)

Colorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart Shaped

Colorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart Shaped

Colorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart Shaped

Colorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart ShapedColorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart ShapedColorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart ShapedColorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart ShapedColorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart ShapedColorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart Shaped

Colorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart Shaped

Colorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart ShapedColorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart ShapedColorful LED Lamp Heart Shape Electronic DIY Kit Remote Control for Love USB Electronic Production DIY Kits Heart Shaped
