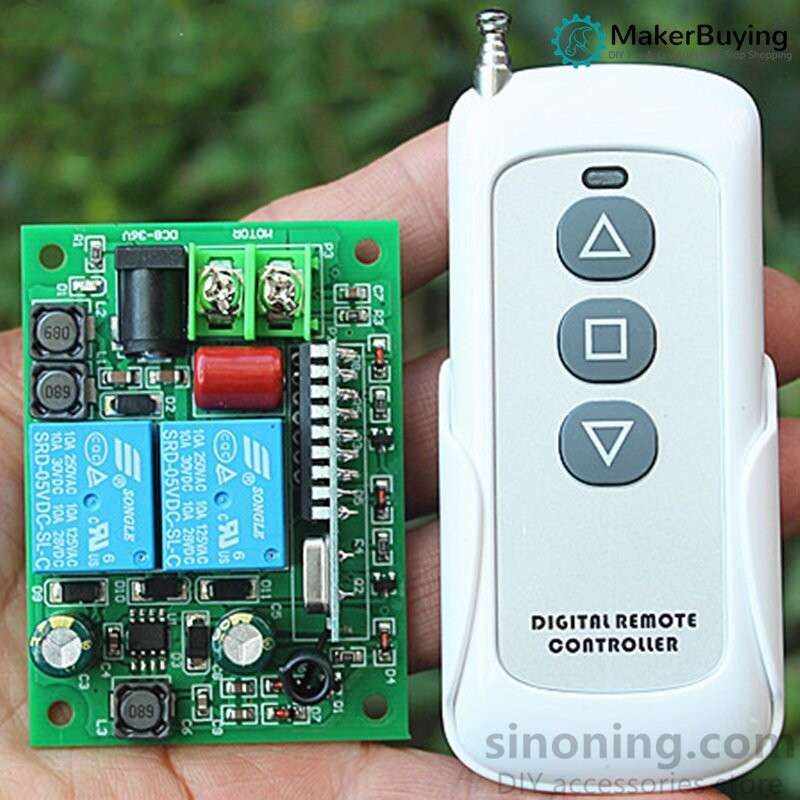

Brushed DC motor forward and reverse remote control kit, including remote control and receiving control board
This remote control kit is suitable for start, stop, forward and reverse remote control of various brushed DC motors. It can be used as long as the motor voltage and power are within the range of the control board. The suitable voltage range of the remote control board is wide, DC8-36V can be used. The control board has power reverse polarity protection.

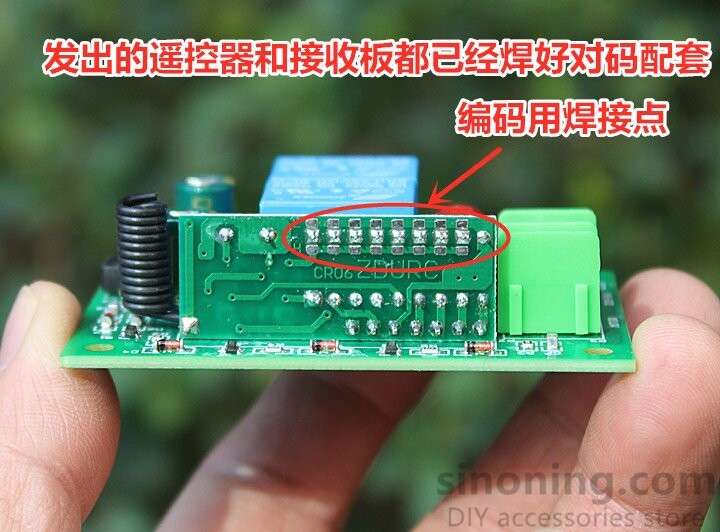

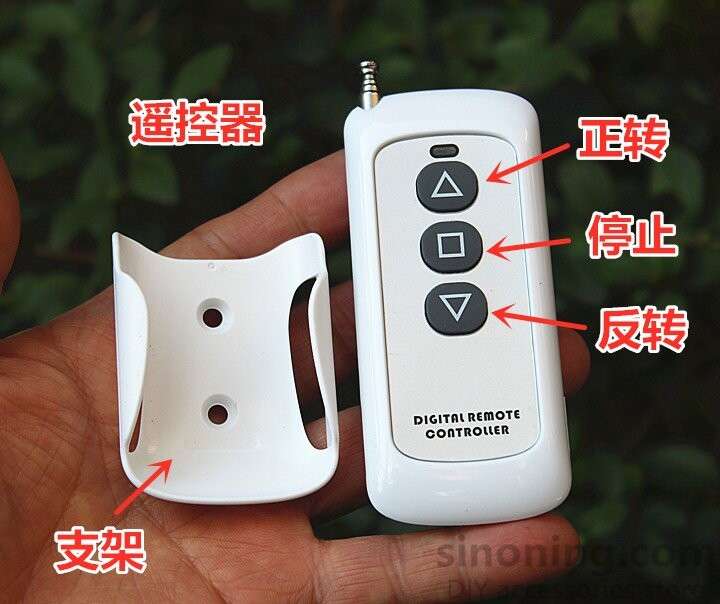

The transmitting and receiving of the remote control can be combined into one remote control to control multiple receiving boards or multiple remote controls to control one remote control board. As long as the transmitting and receiving codes are welded the same, the remote control can be performed. The remote control panel is a self-locking type. Press it to start, and press it to stop it.

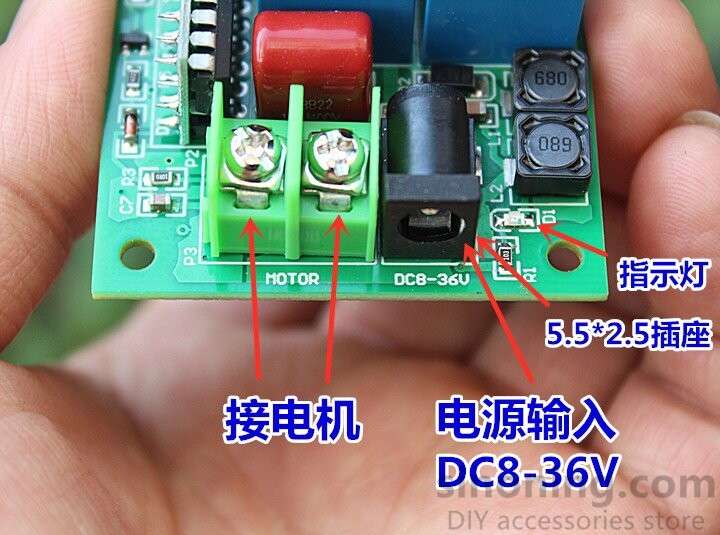

【Working voltage】DC 8-36V
【Working current】≤4A
[Recommended maximum control power] 5V=20W 12V=40W 24V=80W 36V=100W

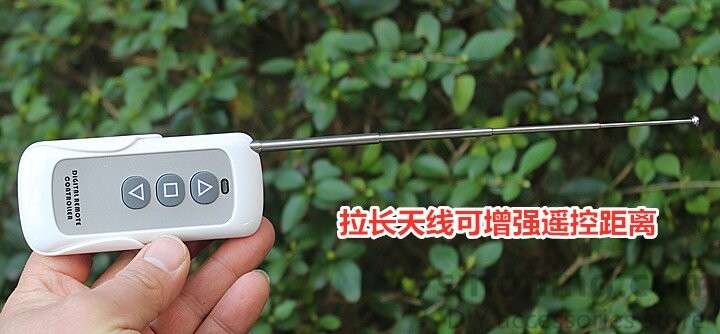

【Remote control distance】About 50 meters
