-12%

DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board

Availability:

9184 in stock

Sales 6

$1.96 $2.22

9184 in stock

DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board
DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board
DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board
DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board
DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board
DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board
DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board
DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board

DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board

1.Description:

You can achieve any combination of your favorite 16-way water lamp effect, very interesting, simple circuit, the assembly success rate is high.

2.Feature :

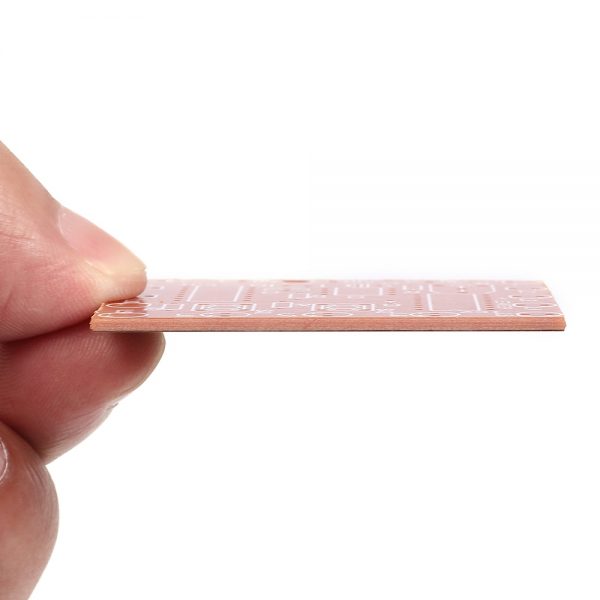

Adopt 1.5mm thickness board, enlarged pad, relatively wire.

3.Work Status:

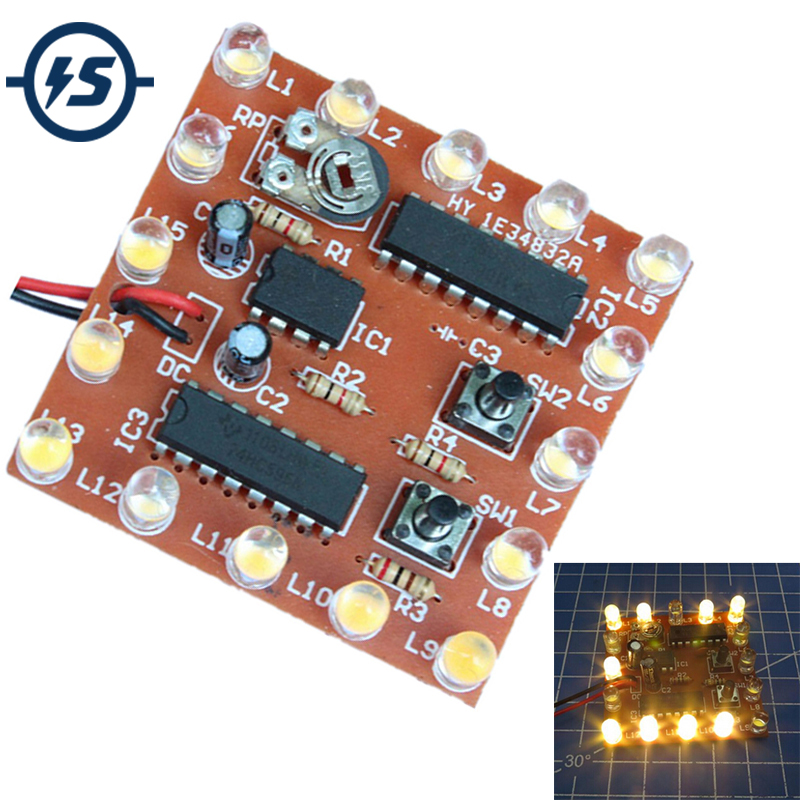

Core circuit is NE555 and 74HC595, the two keys can change the lighting cycle start point LED status so as to achieve random flowing combination. LED is ultra bright warm white LED, and it can be used as small night lamp

4.Principle:

Bistable circuit formed by NE555 and 74HC595, it can generate oscillating pulse, and adjust RP can change the oscillating frequency so that the flowing speed can be changed. 74HC595 has 8-bit shift register and a storage device, Tri-state output function. Shift register and storage device has mutual-independent clock.

5.Parameter:

NO.ParameterValue
1NameWater lights DIY Kit
2Operating VoltageDC 4.5-5V
3PCB Size49.5*49.5mm

6.Component List:

NO.Component NamePCB MarkerParameterQTY
1Metal Film ResistorR1,R2180ohm2
2Metal Film ResistorR3,R4840ohm2
3Electrolytic CapacitorC1,C2100uF2
4Ceramic capacitorC30.1uF 1041
5ButtonSW1,SW26*62
6PotentiometerRP1
7NE555IC1DIP-81
874HC595IC2,IC3DIP-162
9LEDL1-L165mm16
10PCB50*501

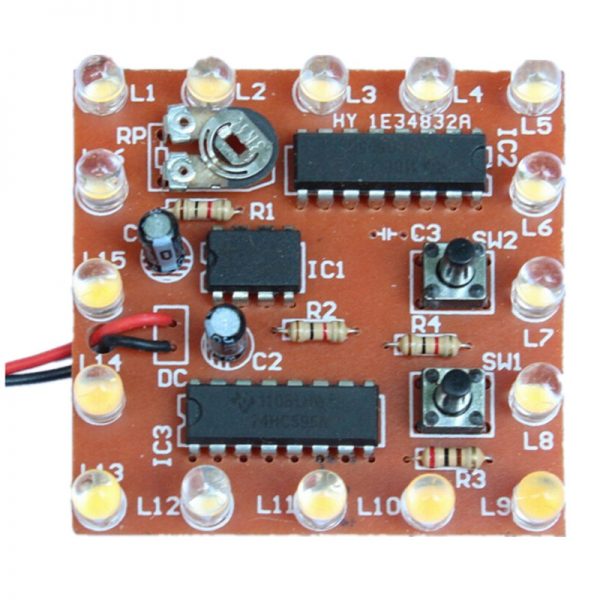

NOTE:You can complete the installation by PCB silk screen and component listing.

7.Schematic diagram

DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board

DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board

DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board

DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice BoardDIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board

DIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice BoardDIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice BoardDIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice BoardDIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice BoardDIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice BoardDIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice BoardDIY Kit Electronic NE555+74HC595 16Bit 16 Channel Light Water Flowing Lights LED Module Kit Running Light Welding Practice Board


SKU: 32828298924 Category:
Brand Name

IS

Condition

New

Type

Logic ICs

Model Number

Water lights DIY Kit

Application

Computer

Operating Temperature

none

Supply Voltage

DC 4.5-5V

Dissipation Power

none

Package

Other

is_customized

Yes
