-27%

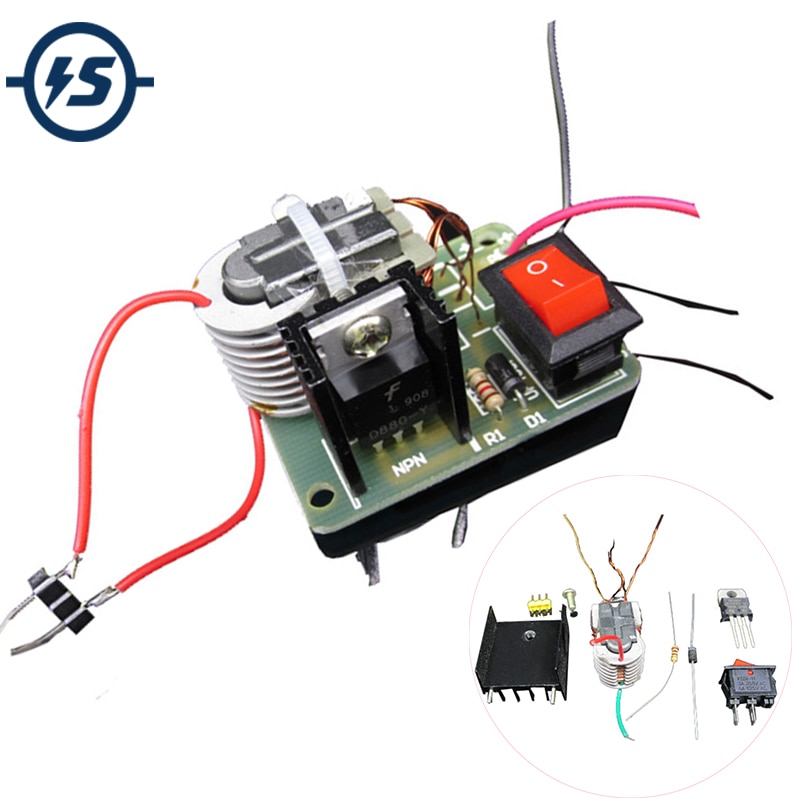

DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A

Availability:

274 in stock

Sales 1

$4.46 $6.12

274 in stock

Compare
DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A
Product Introduction:
1.Input Voltage: 3.7-4.2V
2.Current: <=2A
3.Output Voltage: <=+15KV
4.Output Current: <=+0.4A
5.High Pressure Ignition Distance: <=0.5cm
6.Size: 27*16*21mm

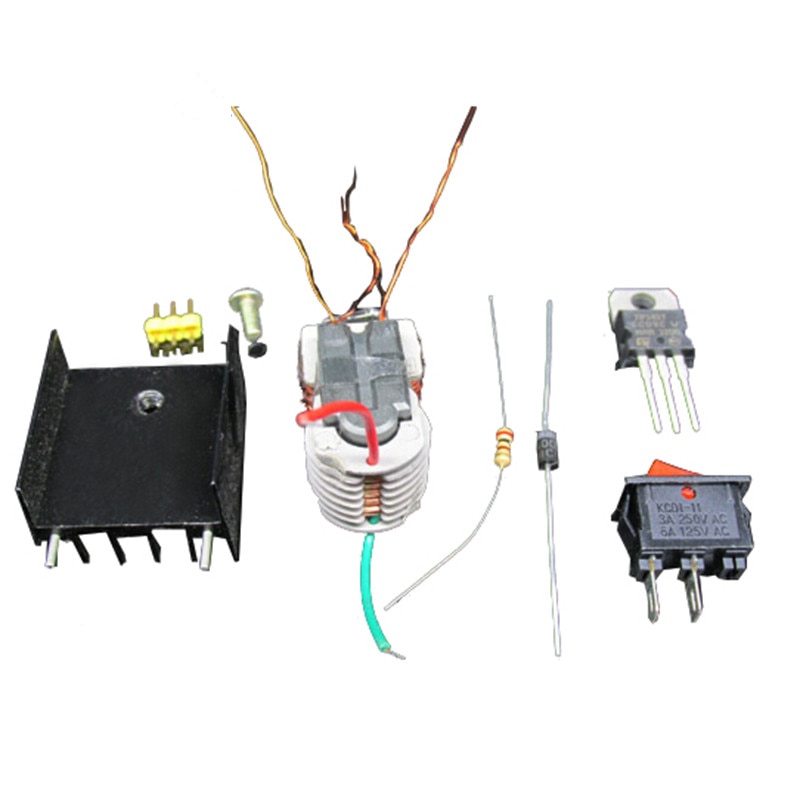

Packing List:
1.15VKE = 1 type boost converter x1pc
2.120 ohm resistor x1pc
3.UF4007 diode x1pc
4.N20 triode x1pc
5.Heat sink x1pc
6.M3*6 screw x1pc
7.Switch x1pc
8.3Pin
Notice:
1.After operating, the converter should be encapsulated via epoxy resin or insulated wax so that it can be used for a long period of time. When it operates without load, it will not get damaged
2.The input voltage is 3.7V, thst is 18650 battery voltage. If you want to increase the input voltage (increase to 12V), you need to increase the resistance value of feedback resistor, or the triode will be burnt. The feedback resistance increases to 150 ohm-1.5K ohm., its value should be adjusted from high to low
3.The converter 15KV is the highest output, so its limit output should be not more than 15KV, that is 1.5cm arc
4.Before soldering, please remove the paint on the enameled wire soldering part
DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A
DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A
DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A
DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A
DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A
DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2ADIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2ADIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2ADIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2ADIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2ADIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A
DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A
DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A
DIY Kits High Voltage Pressure Generator 15KV 15000V Igniter Kit Step-Up Boost Module Coil Transformer Driver Plate Suite 2A
SKU: 32819745629 Category:
Brand Name

IS

Condition

New

Type

Logic ICs

Package

Other

Dissipation Power

None

Model Number

High Voltage Generator Kit

Application

Scientific Experiment

Operating Temperature

-35~85 Celsius

Supply Voltage

3.7-4.2V

is_customized

Yes

Current

<=2A

Output Voltage

<=+15KV

Output Current

<=+0.4A
