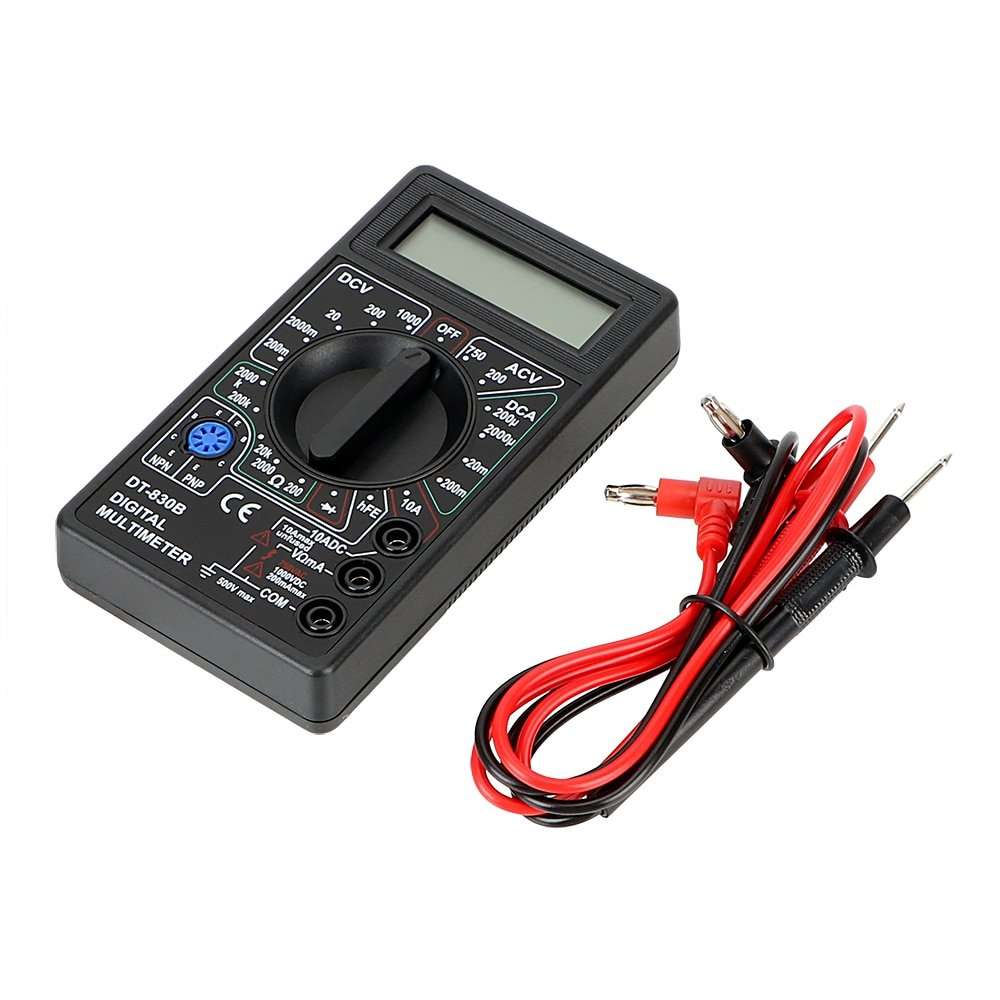

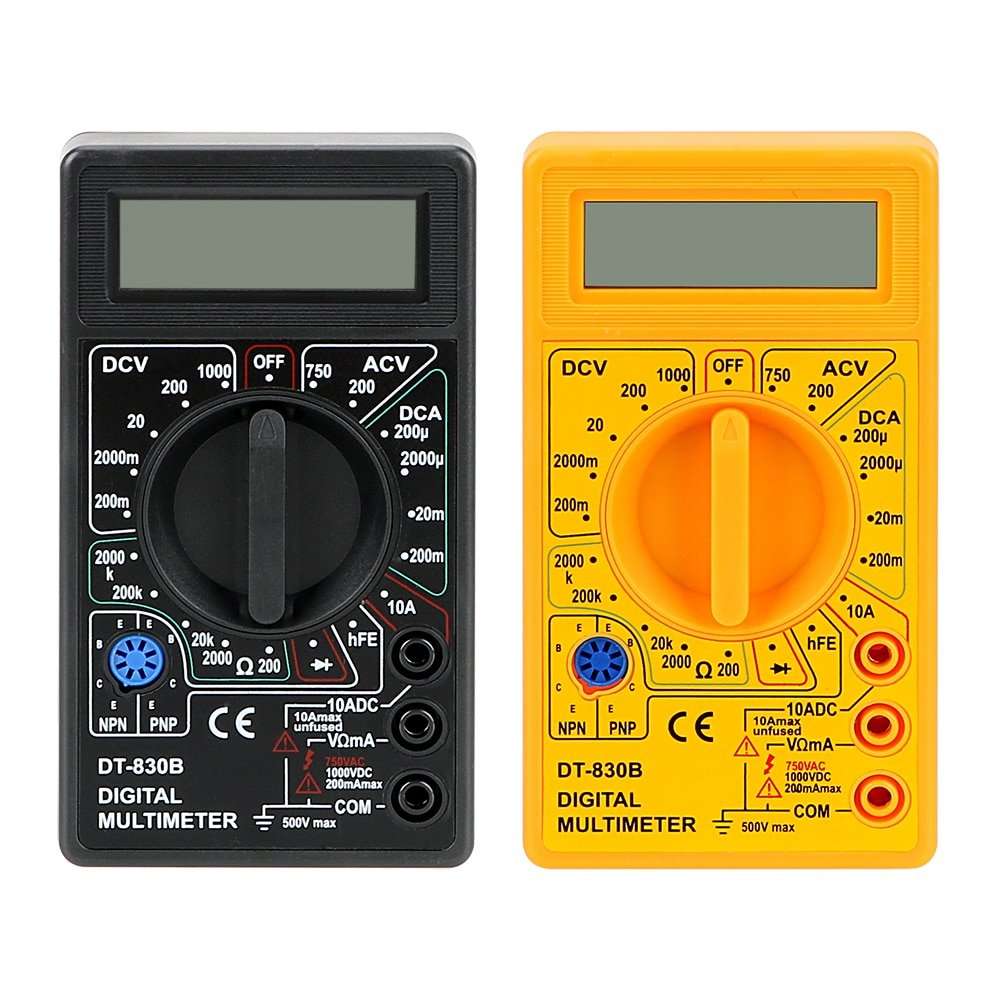

DIYWORK LCD Auto Range Digital Voltmeter DT-830B Ohmmeter Volt Tester Analysis Instrument Multimeter
Availability:
1450 in stock
Sales 148
$4.81
Feature:
- 3 1/2 digits, 7segment, 0.5″high LCD Display.
- Max display: 1999, Auto polarity display.
- Small and compact design.
- Overload protection on all ranges.
- Sampling 2~3 times readings per second.
- Diode assembly test / Temperature test/Transistor hFE test.
- Low battery voltage indication
Specifications:
- Model: DT-830B
- Measuring range:
Max AC Current: 10A
Max AC Voltage range: 1000V
Max DC Voltage range: 750V - Resistance Measurement: 200 Ohm-2000K Ohm range
- Power Supply: 9V Battery (Not Included Here)
- Color: Black, Yellow
- Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78” (L*W*H)
- Scale degree & Accuracy:
DC voltage: 200mV 100uv±(0.5% + 2)
2000mv 1mv
20v 10mv
200v 100mv
1000v 1v±(0.8% + 2) - AC voltage: 200V 100mv±(1.2% + 10)
750v 1v - DC current: 2000ua 1ua±(1% + 2)
20ma 10ua
200ma 100ua±(1.2% + 2)
10a 10ma±(2% + 2) - Resistance: 200Ω0.1Ω±(0.8% + 2)
2000Ω1
20kΩ10
200kΩ100
2000kΩ1000Ω±(1% + 2)
Package included:
- 1Pc x DT830B Digital Multimeter
- 2Pc x Test
1.We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
2.Payment must be made within 3 days of order.
3.If
you can’t checkout immediately after auction close, please wait for a
few minutes and retry Payments must be completed within 3 days.
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn’t receive the item after 45 days,please feel free to contact us.
We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.
1.All
items have 1 year guarantee.IF your purchase do not meet merchantable
quality, fitness for purpose or match the description, We can make sure
your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.
We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
1.We maintain high standards of excellence and strive for 100% customer satisfaction!
Feedback is very important.
2.We
request that you contact us immediately BEFORE you give us neutral or
negative feedback, so that we can satisfactorily address your concerns.
3.It is impossible to address issues if we do not know about them! So please contact us for any problems.Thank you!
| Brand Name | DIYWORK |
|---|---|
| DIY Supplies | ELECTRICAL |
| Certification | None |
| Origin | CN(Origin) |
| Model Number | 15677 |
| Measuring Resistance Range | 200 Ohm – 2000K Ohm range |
| Measuring Inductance Range | AC1000V DC750V |
| Display Type | Digital Display |
| Dimensions | 12CM |
| Operating Temperature | Other |
