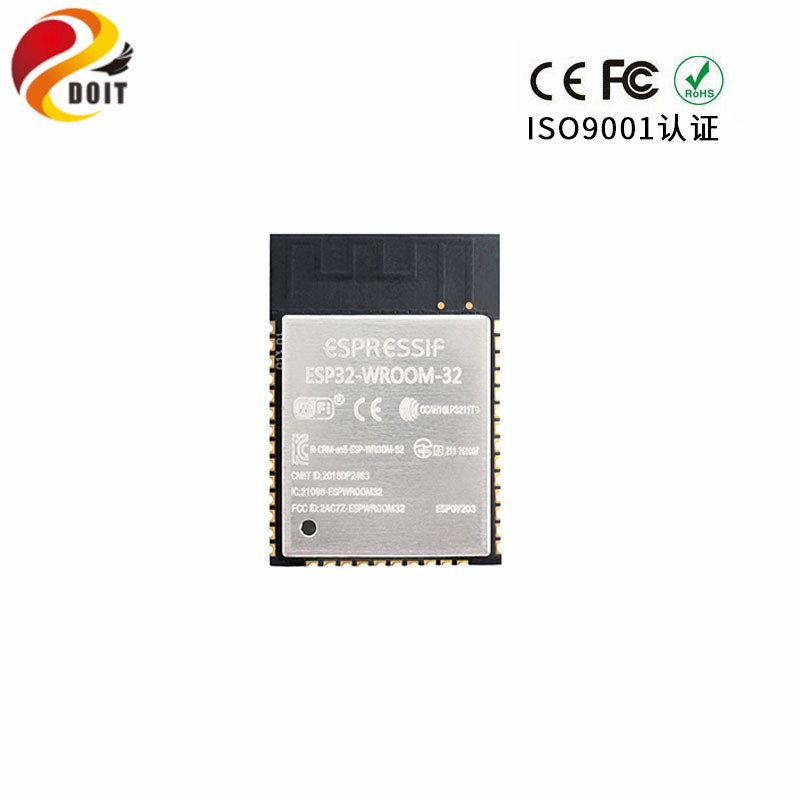

DOIT 2pcs WiFi Bluetooth ESP32 Dual Core CPU with Low Power Consumption MCU ESP-32s esp-32 esp32s wireless wifi serial

• ESP32 is a complete, small form factor(SFF)802.11 b/g/n/e/i(2.4GHz)WLAN plus BT4.2combo solution optimized for low-power,mobile consumer electronics, wearable andInternet of Things(IOT) devices. ESP32 integrates all WLAN and BT functionalityin a single package to support a low cost, layout-friendly implementation whileallowing flexibility for platform specific customization.
• ESP32 is a highly integrated solution withless than 10 external components.
• ESp32 integrates the transmit /receive RFfunctionality including the antenna swiches, RF balun, power amplifier, low noisereceive amplifier, filters, power management, and advanced calibratiom ciacuitriesthat allow the solution to dynamically adjust itself to adapt to externalcircuit implefections.
• The entire solution reduces Printed CircuitBoard (PCB) area,time-to-market, and bill-of-material(BOM)costs while addingcapablities and processing power.the mass production of ESP32 does not requireexpensive and specialized Wi-Fi test equipment.
• ESP32’s uitra low power consumption radioarchiteature and proprietary power save technologies extend batter life inreal-world applications,using the following features:

1. Fine granularity clock-gating
2. Multiple low-power modes, and
3. Dynamic voltage scaling

• For instance, in a low-power IoT sensor hubapplication scenario, ESP32 is woken up periodically and only when a specifiedcondition is detected; low duty cycle is used to minimize the amount of energythat the chip expends. The output power of the power amplifier can also beadjusted, so that an optimal trade off between the communication range, data rateand power consumption is achieved.

Basic Features

Wi-Fi

• 802.11 b/g/n/e/I
• 802.11 n (2.4Ghz), up to 150Mbps
• 802.11 I security features: pre-authentication and TSN
• 802.11 e:Multiple queue management to fully utilize QoStraffic prioritization
• Wi-Fi Proteceed Access (WPA)/WPA2
• Wi-Fi Proteceed Setup(WPS)
• A- MPDU and A-MSDUaggregation
• Fragmentation and defragmentation
• SSL stacks with hardware accelerators
• Automatic beacon monitoring / scanning
• Infrastructure BSS Station mode/ Soft AP mode
• Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
• UMA compliant and certified
• Antenna diversity and selection
• WMM power save U-APSD

Bluetooth

• CMOS single-chip fully-integrated radio and baseband
• Bluetooth Piconet and Scatternet
• Bluetooth 4.2(BR/EDR/BLE)
• Adaptive Frequency Hopping(AFH)
• SMP
• Class-1, class-2 and class-34 transmitter without externalpower amplifier
• +10 dBm transmitting power
• NZIF receiver with-90 dBm sensitivity
• Up-to 4 Mbps high speed UART HCI
• SDIO/SPI HCI
• Low power consumption
• Minimum external component

CPU and Memory

• Xtensa®Dual-core32-bit LX6 microprocessors, up to 400 MIPS
• 128 KB ROM
• QSPIFlash/SRAM, up to 4x 16 MB
• Powersupply: 2.5V to 3.6V
• 416 KB SRAM

Clocks and Timers

• 2 MHz to 40 MHzcrystal oscillator
• Internal 8 MHz oscillatorwith calibration
• External 32kHz oscillatorfor RTC with calibration
• Internal RC oscillatorwith calibration
• Two timer groupsincluding 3×64-bit timera and 1x watchdog in each group
• RTC timer withsub-second accuracy
• RTC watchdog

Advanced Features

Advanced Peripheral Interfaces

• 12-bit SAR ADC up to 16 chanels
• 2×10-bit DA converters
• 10x touch sensors
• Temperature sensor
• 4sSPI
• 2xI2S
• 2xI2C
• 2xUART
• 1 host(SD/eMMC/SDIO)
• 1 slave(SDIO/SPI)
• Ethernet MAC interface with dedicated DMAand IEEE 1588 support
• CAN 2.0
• IR(TX/RX)
• Motor PWM
• LED PWM up to 16 channels

Security

• IEEE 802.11 standard security features allsupported, including WFA, WPA/WPA2 and WAPI
• Secure boot
• Flash encrytiom
• 1014-bit OTP, up to 768-bit for customers
• Crytographic hardware acceleration:
• AES 128/192/256
• HASH(SHA-2)library
• RSA
• Radom Number Generator

Applications

• Generic low power
• IOT sensor hub
• IOT loggers
• Audio & Video

Internet music players
Audio headsets
Wi-Fi + Bluetooth audio streaming devices
Video Steaming from camera

• Wi-Fi + Bluetooth enabled
• Over The Top (OTT) devices
• smart devices
• Wi-Fi enabled
• Loggers toys
• Proximity sensing toys
• speech recognition devices
• Home automation
• Smart plugs
• Smart lightings
• Industrial automation
• Industrial wireless control
• Mesh network
• Security ID tags
• Sensor network

Wi-Fi location-aware devices

Wearable electronics
Baby monitors

• Healthcare

Proximity movement monitoring
trigger devices
Temperature sensing loggers

Development Support

• Firmware and SDK for fast on-chip Programmng
• Open source toolchains based on GC

• 2pcs
