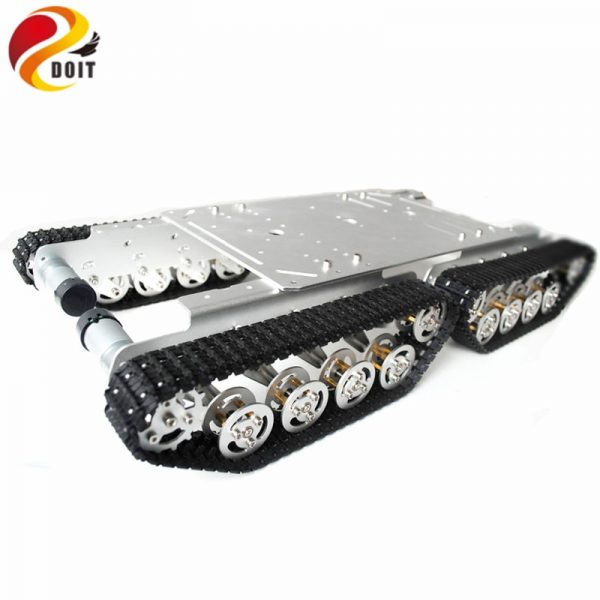

DOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot Project

Availability:

884 in stock

Sales 3

$249.00$252.00

Silver 33 motorSilver 9V motor
Clear
Compare
DOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot Project

  • Name: TS600 Shock Absorber Tank car

  • Car body: Aluminum alloy

  • Wheel: Aluminum alloy

  • Tracks: Engineeing plastic

  • Size: 540* 280 *90mm (length * width * height)

  • Working voltage: 6~12V

  • The tank whole weight: 2.3kG

  • Working carrying capaticy: 6Kg

  • More details, please visit: //github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents

DOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot Project

33GB-520 motor parameters:

  • Rated Voltage: DC12V

  • No-load Current: 100mA

  • Working voltage range: 6-12V

  • No-load speed : 170-350r/min

  • Weight: 100g

DOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot Project

9V motor parameters:

  • Name: 25mm gear motor

  • Output speed: 150±10%rpm

  • No_load Current: 200mA (Max)

  • Stall current: 4500mA(max)

  • Stall torque: 9.5kgNaN

  • Rated speed: 100±10%rpm

  • Rated torque: 3000gNaN

  • Rated Current: 1200mA (Max)

  • Noise: 56dB

  • Working voltage: 9V

  • Outside Shaft Length: 14.5mm

  • Shaft End Play: 0.05-0.50mm

  • Screw Size: M3.0

  • Dia. Of Shaft phi4mm, D3.5

  • encoder: 2 pulses/circle

DOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot Project

DOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot Project

  • TS600 Shock Absorber Tank car: 1 set(Silver/Yellow)
  • Motor: 4pcs(33GB-520 motor/9V motor)

DOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot Project

DOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot ProjectDOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot ProjectDOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot ProjectDOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot ProjectDOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot ProjectDOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot Project

Controller kit:

DOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot Project
