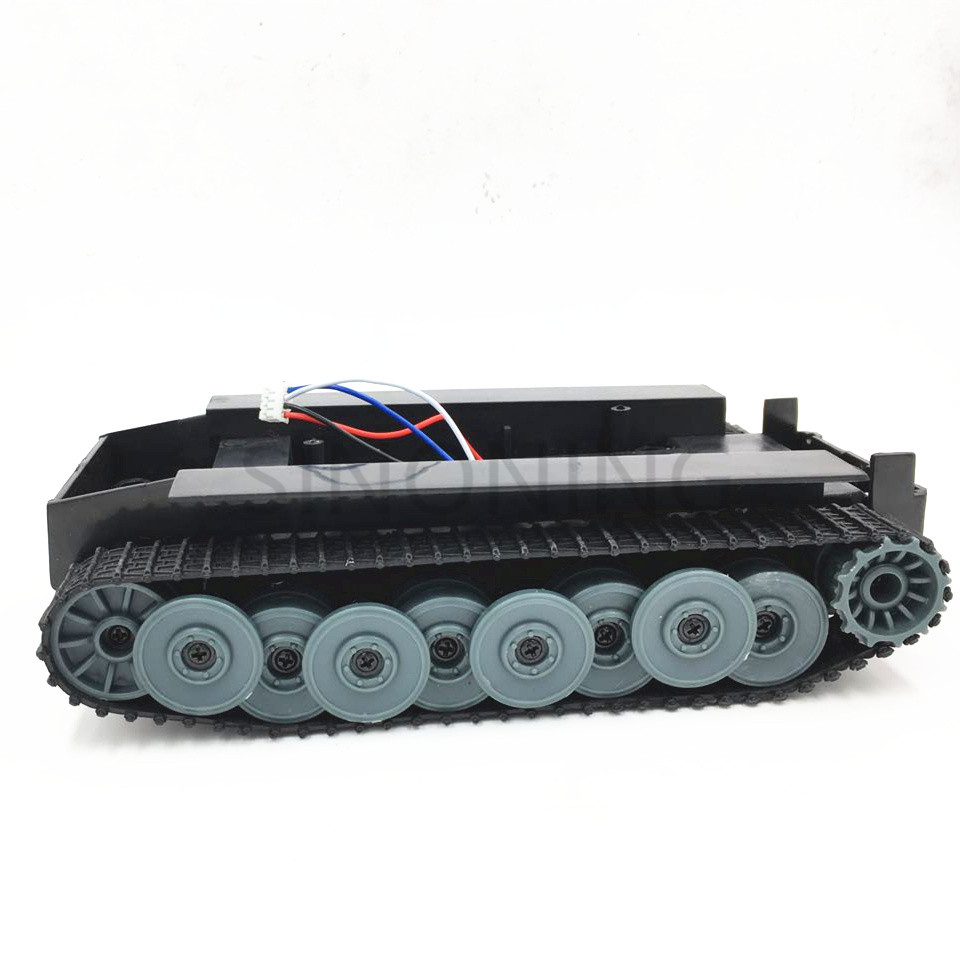

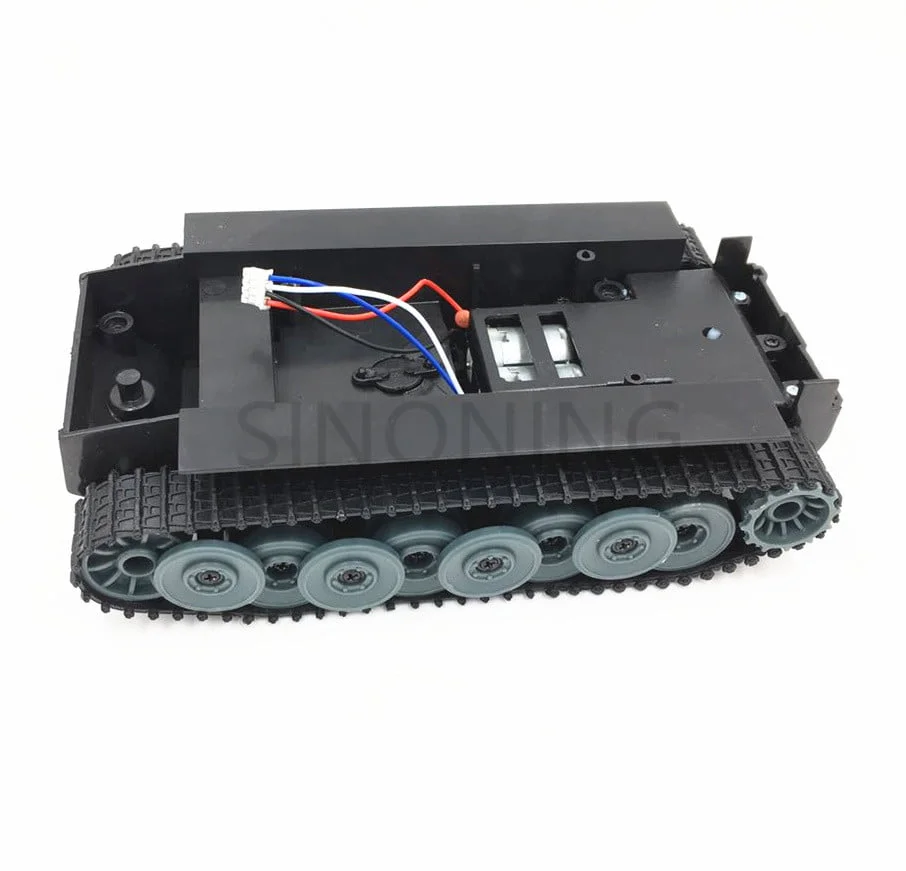

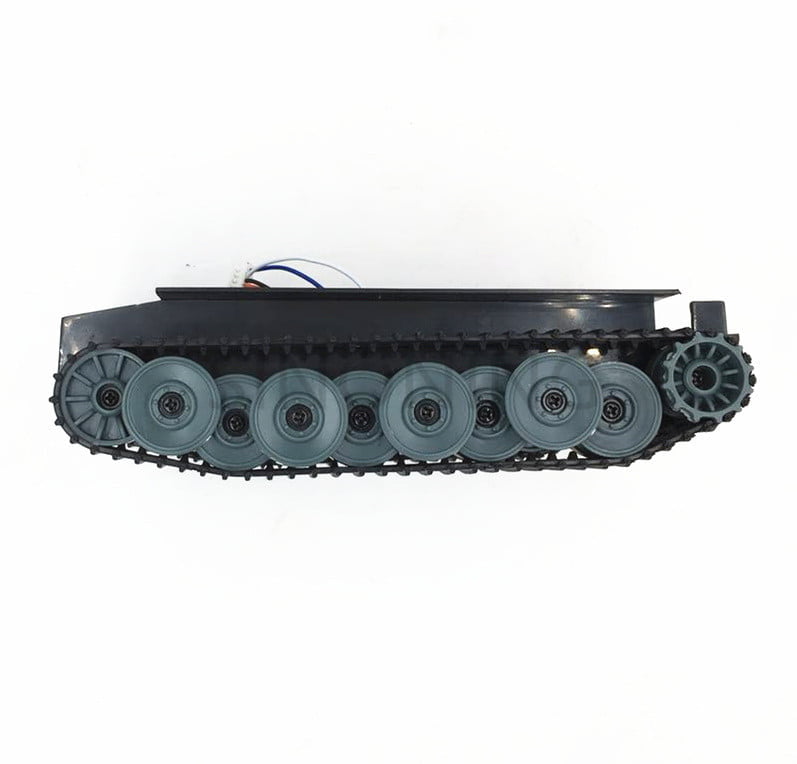

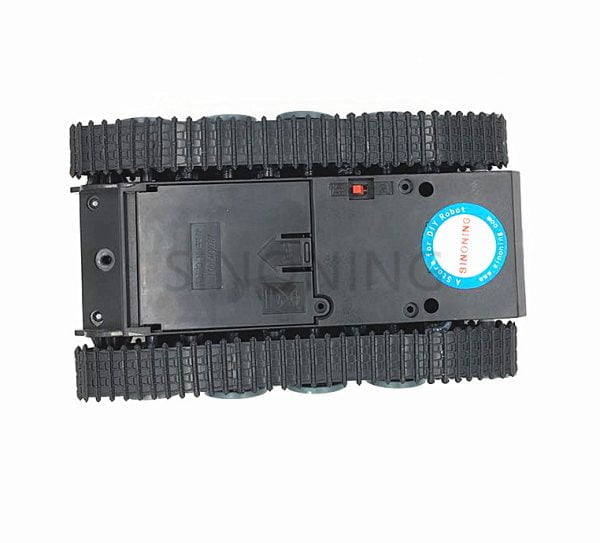

economy 2WD German Tiger tank Robot chassis 1:32 arduino KIT Raspberry Pi DIY
Features:
* Domestic manufacturers of abrasive production, good quality
* World War II classic German Tiger tank 1:32
* The left and right drive lanes are easy to control

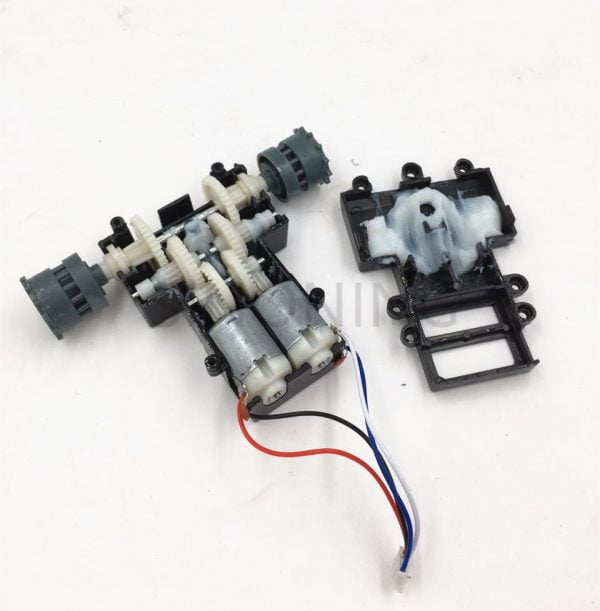

* The box is coated with thick grease
Product parameters:
Product Model: SN900
Brand:SINONING
Weight: 244g
Size: Length Width hight 21cm * 12cm * 4cm
Load capacity: 1kg
Motor parameters:
Motor model: 130 toy motor
Reference voltage: 2-8v
Reference current: 0.35-0.5A
No-load test:
3v 0.34A 198RPM
6V 0.37A 390RPM
8V 0.5A 553RPM
No-load tank speed:
3V 0.18m / s
6V 0.34m / s
8V 0.49m / s
Reminder: This product motor for the toy , no other datasheet
shipping List:

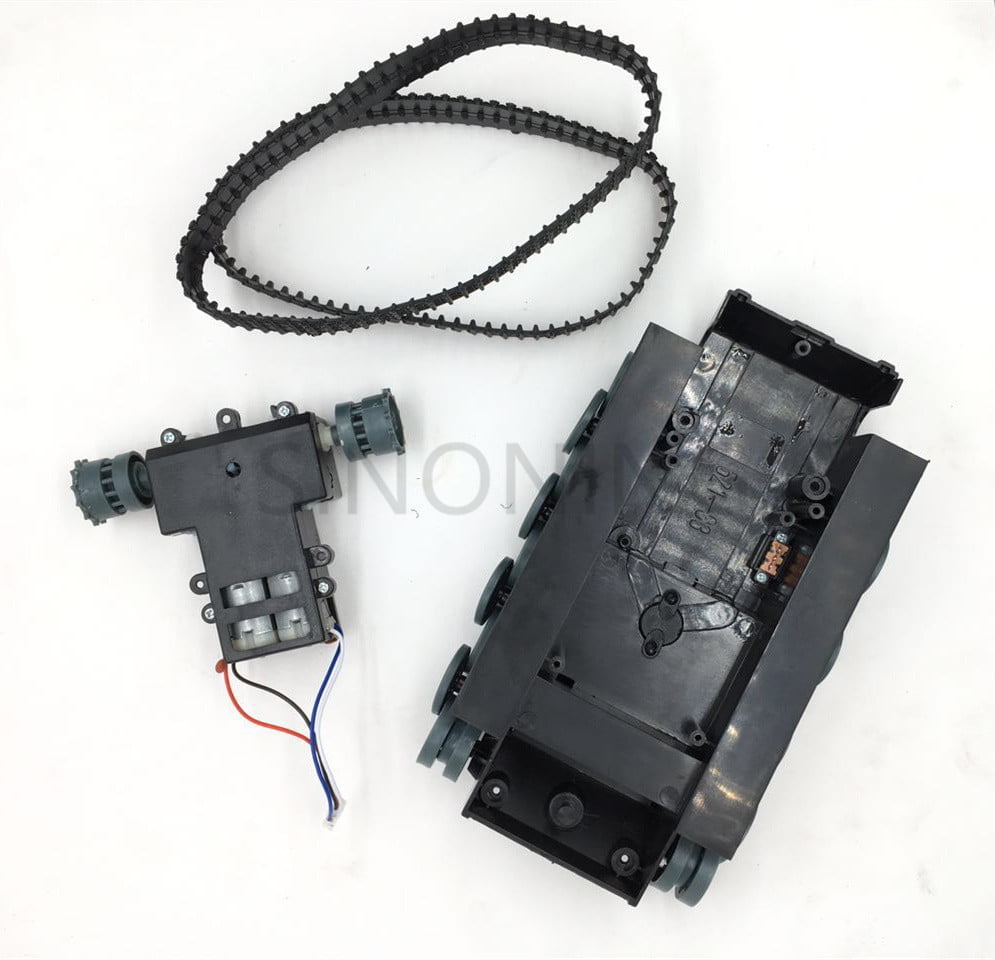

A finished tank chassis
use:
Diy remote control tank
Diy smart tank
Can be used for Arduino, 51 single-chip, raspberry pie (no space, need to install their own)

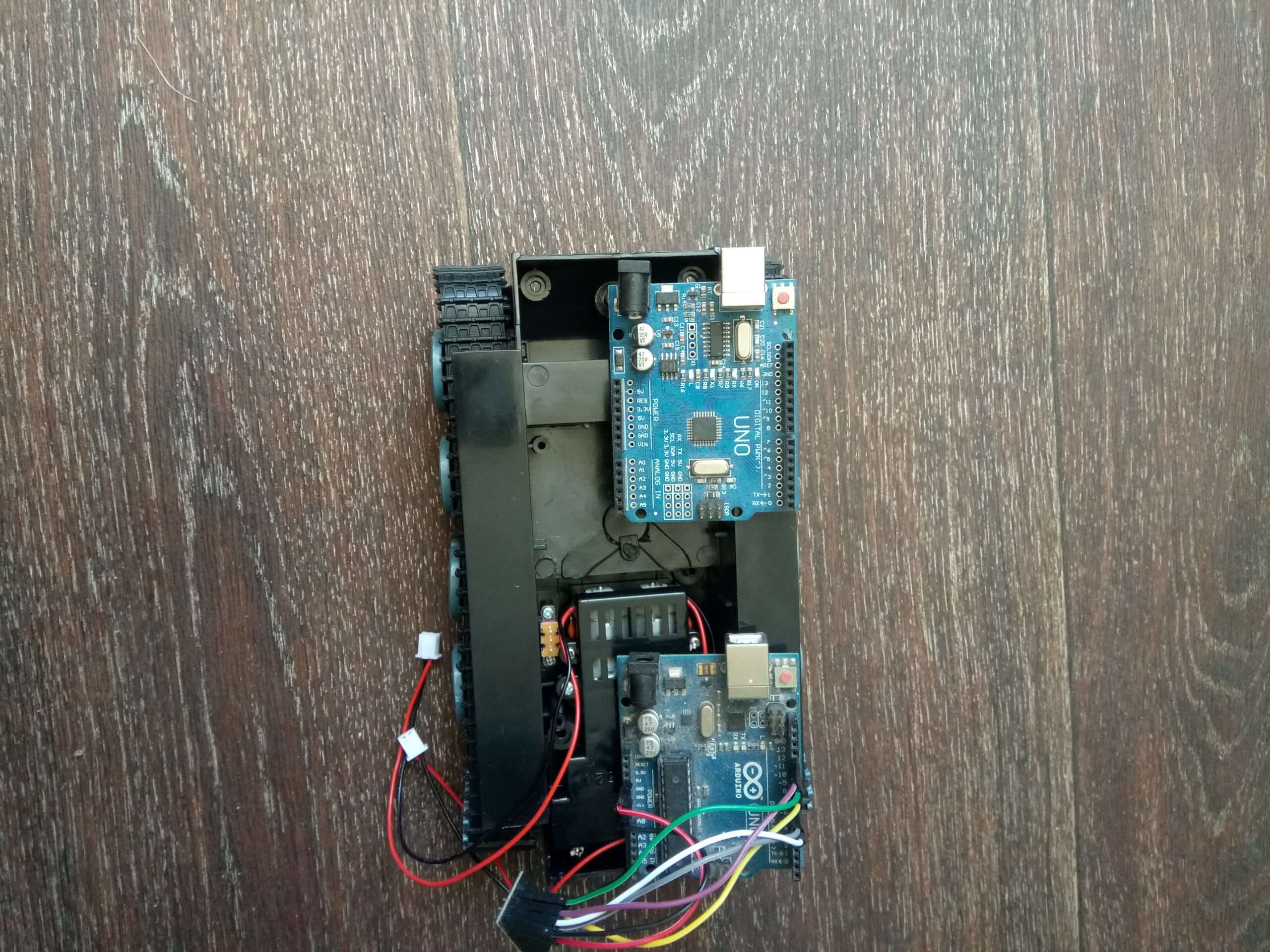

example show:

barrie.robinson –
This is a great little “starter” tank chassis . Can be made RC with he purchase of some of Sinoning’s remote control units. Great and inexpensive way to get into RC tanks or robotics.
(1) (1) Watch Unwatch
Description is wrong
Anatoly (verified owner) –
Too small
(0) (0) Watch Unwatch
victor (verified owner) –
sorry, the Size: Length Width hight 21cm * 12cm * 4cm, and it is 1:32 tank, what scale of yours?
(0) (0)
Size
Anatoly (verified owner) –
18.5х11х5 approx
(0) (0) Watch Unwatch
victor (verified owner) –
Please measure the maximum length, in addition, manual measurement is also subject to error
(0) (0)
Anatoly (verified owner) –

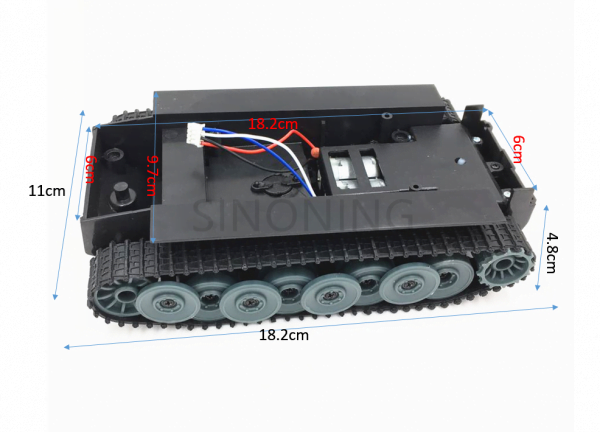

Victor, what do you want from me ?! One of the photos in the description from the seller shows the correct dimensions. Unfortunately, the size of the parcel is indicated in the text description. And if you don’t believe me and the seller, then buy and measure yourself as much as you want.
(0) (0) Watch Unwatch
