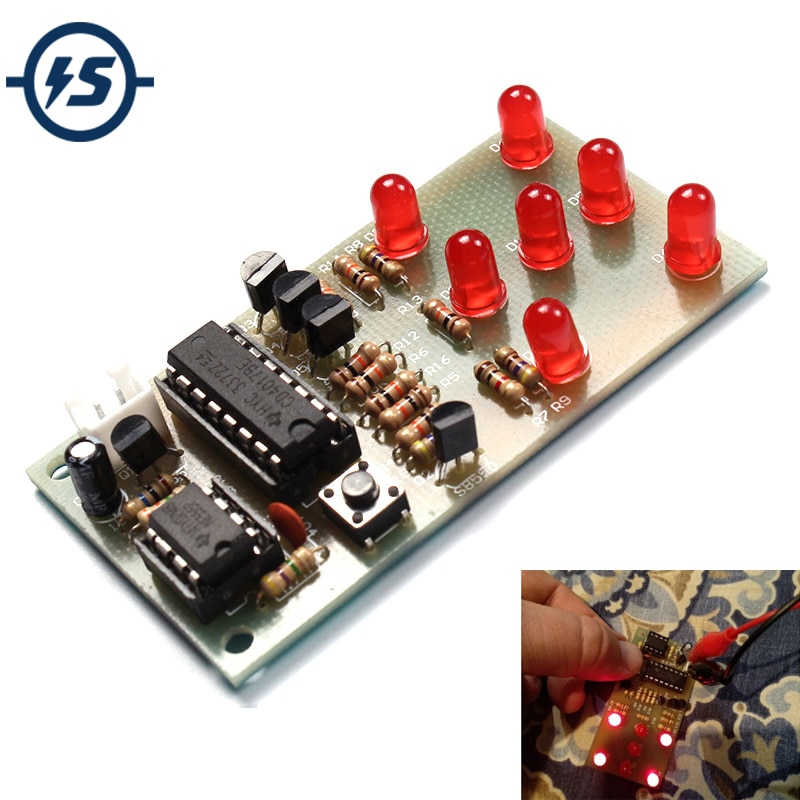

ICSK057A Precise Electronic Dice DIY Kit 7pcs 5mm Red LEDs

Electronic dice kit is based on the NE555 oscillator circuit and circuit CD4017 counter display kit.
Can simulate the dice, get fun of the game.

1. Kit parameters:

Supply voltage: 4.5-5V
Dimensions: 74 * 35mm

2. Function:

When a power-up, 7 LED will randomly display a number of points, players press the switch S1,7 all lit LED only after about 7 seconds LED light starts blinking, until finally showed stable points. Throughout the end of the first “crap” process.

3. Circuit:

Circuit mainly by the pulse generator and a decade counter circuit. Pulse generator and external elements by NE555 multivibrator, when you press the button S1 when Q1 turns on, the output pulse NE555 3 feet, then five turns the output CD4017 output high, resistors and transistors by different combination, can drive seven LED light to indicate the number of points 1-6 points.

4. Circuit Diagram:

Electronic DIY Kit Dice NE555 CD4017 DIY Kit 5mm Red LEDs 4.5-5V ICSK057A Electronic Fun DIY Kit

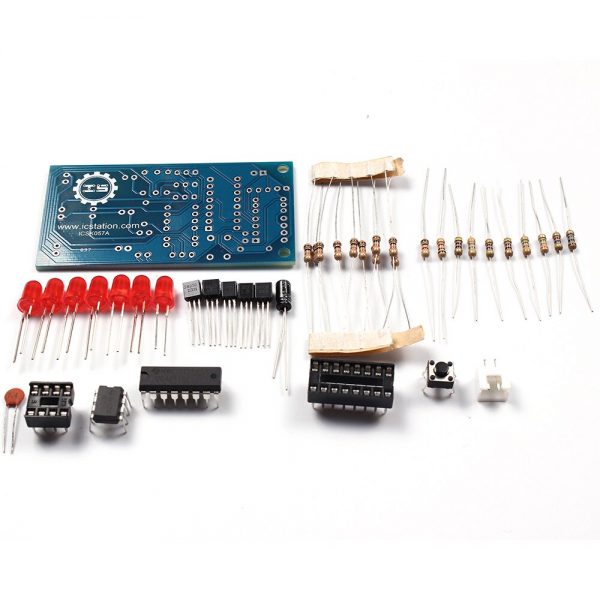

5. Component List:

Serial number

Component

Value

Label

Serial number

Component

Value

Label

01resistance470RR8 R9 R1011 audionS8050Q2 Q4 Q5
021KR712S8550Q1 Q3
0310KR3–R6 R12–R1613IC socket8PINU1
043.3MR21416PINU2
054.7MR1115IC

NE555

U1
0610MR116CD4017U2
07capacitance104PC217TerminalXH2.54 2PJ1
081uF/50VC118Power lineXH 2P1
09LEDФ5红发红D1–D719PCBFR-474*35mm
10touch touch switch6*6*5S120

Electronic DIY Kit Dice NE555 CD4017 DIY Kit 5mm Red LEDs 4.5-5V ICSK057A Electronic Fun DIY Kit

Electronic DIY Kit Dice NE555 CD4017 DIY Kit 5mm Red LEDs 4.5-5V ICSK057A Electronic Fun DIY Kit

Electronic DIY Kit Dice NE555 CD4017 DIY Kit 5mm Red LEDs 4.5-5V ICSK057A Electronic Fun DIY KitElectronic DIY Kit Dice NE555 CD4017 DIY Kit 5mm Red LEDs 4.5-5V ICSK057A Electronic Fun DIY KitElectronic DIY Kit Dice NE555 CD4017 DIY Kit 5mm Red LEDs 4.5-5V ICSK057A Electronic Fun DIY Kit

Electronic DIY Kit Dice NE555 CD4017 DIY Kit 5mm Red LEDs 4.5-5V ICSK057A Electronic Fun DIY Kit


SKU: 32597781923 Category:
Brand Name

IS

Condition

New

Type

Logic ICs

Supply Voltage

4.5-5V

Package

Other

is_customized

Yes

Dissipation Power

none

Model Number

Electronic Dice DIY Kit

Application

Other

Operating Temperature

-20 ~ 60 Celsius
