ESP8266 ESP-01/01S DHT11 Temperature and Humidity WiFi Node Module Without Wireless Module

ESP8266 ESP-01 esp-01S DHT11 Temperature and Humidity WiFi Node Module Without Wireless Module

This product requires the user to burn the download program himself, and the problem is caused by burn-in damage, etc., please pay attention to beginners.

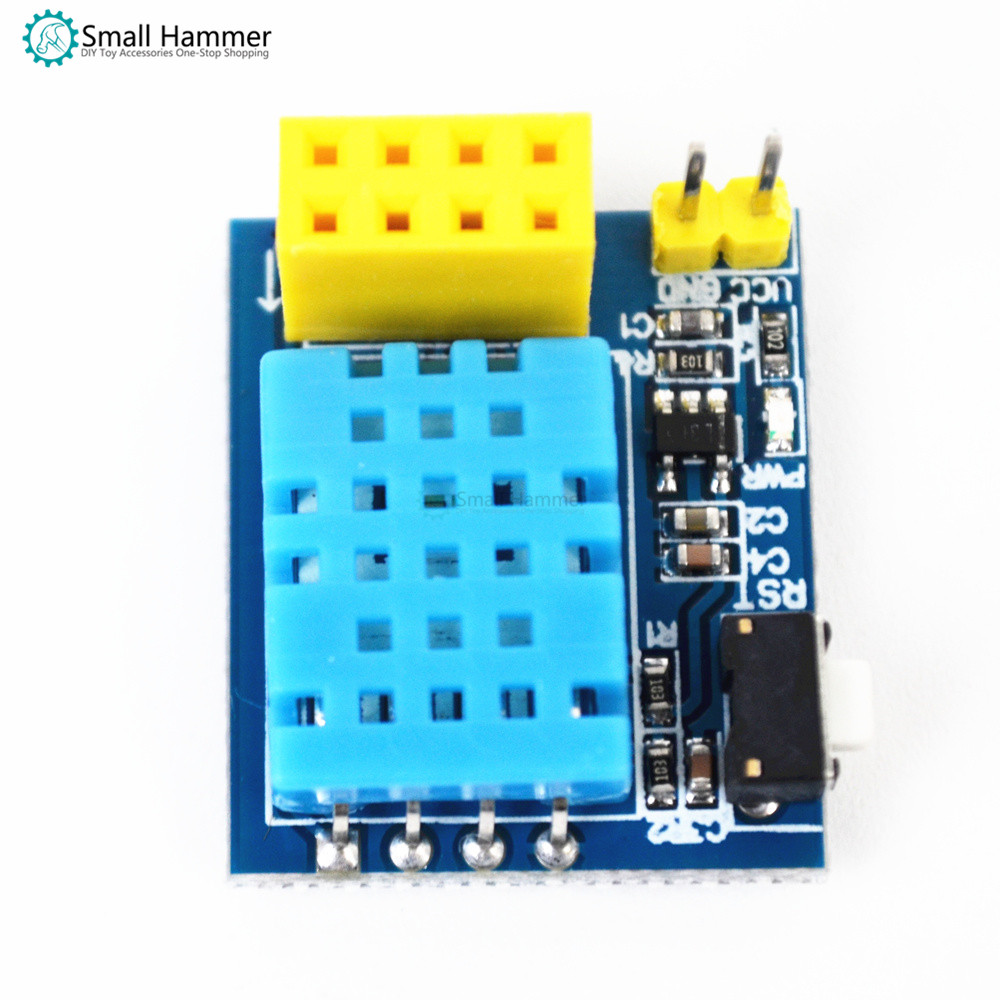

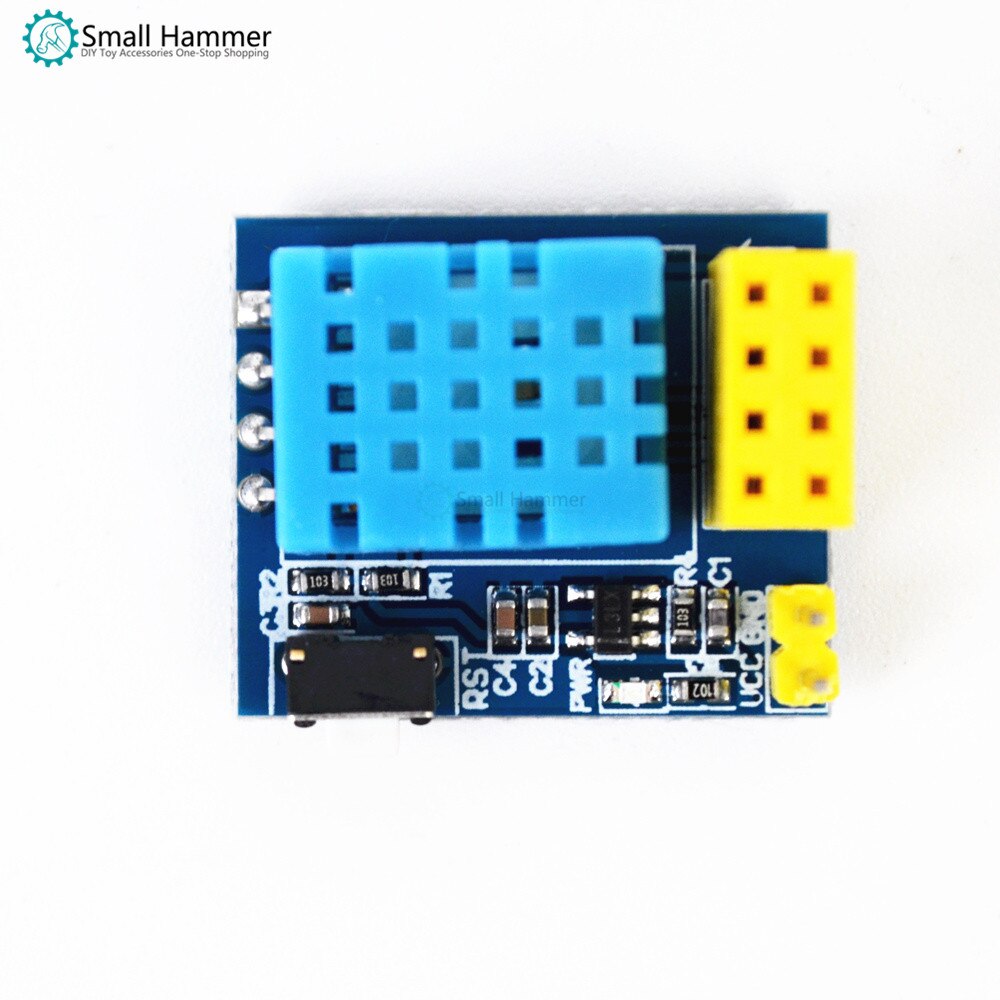

This module is mainly controlled by ESP8266-01/ESP-01S, and DHT11 is a temperature and humidity sensor. The temperature and humidity in the ESP8266 acquisition environment are uploaded to the server. Support 3.7v-12V DC power supply (3.7V lithium battery). Can be used as a temperature and humidity collection node for smart home or IOT projects.

This module is mainly controlled by ESP8266-01/ESP-01S, and DHT11 is a temperature and humidity sensor. The temperature and humidity in the ESP8266 acquisition environment are uploaded to the server. Support 3.7v-12V DC power supply (3.7V lithium battery). Can be used as a temperature and humidity collection node for smart home or IOT projects.

Application example:

1. Power supply: 3.7V-12V DC power supply is connected to VCC GND (2.54mm pin header)

2. Download the program to ESP-01S (this connection does not include this wireless module)

3. Insert the ESP-01/ESP-01S (this connection does not include this wireless module) into the 2*4 Pin female (in the direction of the arrow)

Weight: 4g
