ESP8266 ESP-01 WIFI Module Downloader ESP LINK v1.0 SUNLEPHANT

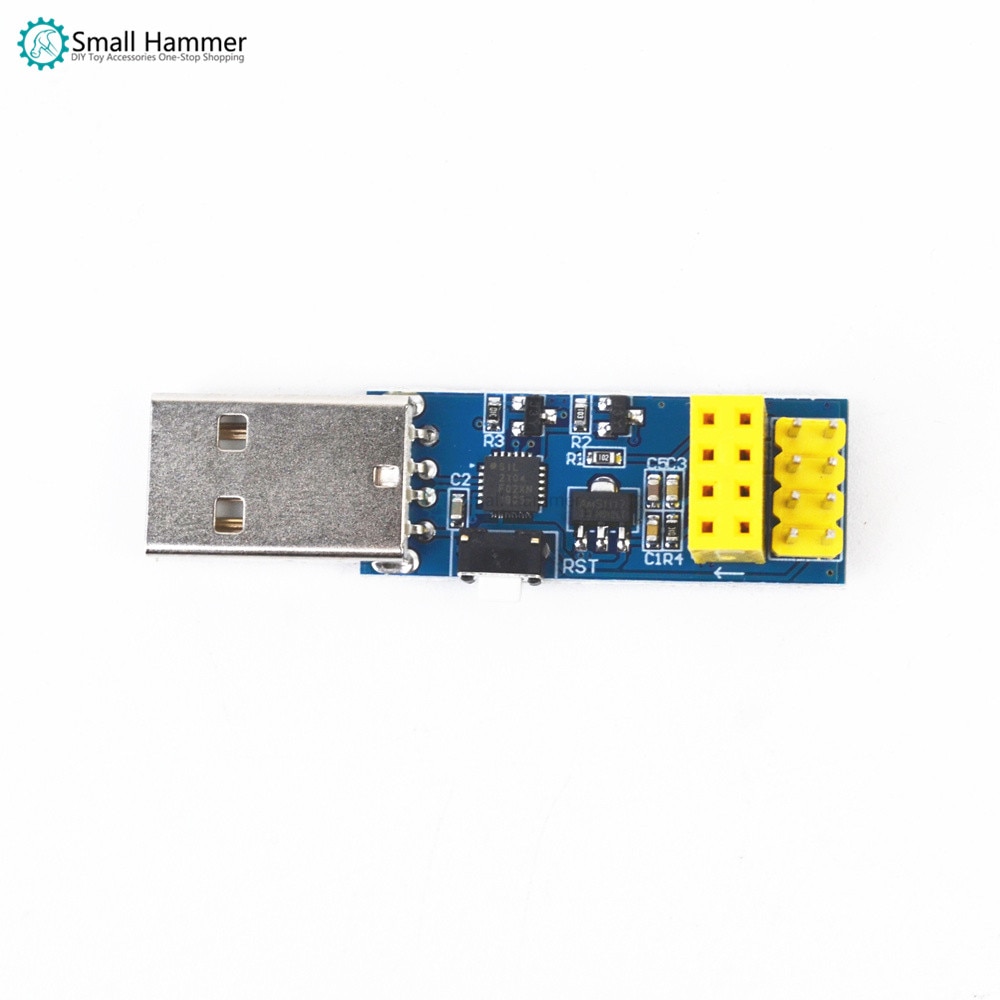

This downloader uses CP2104 USB to serial port chip, and adds ESP8266 automatic download circuit. It is very convenient for users to download programs, upgrade firmware, serial port debugging, etc. to Essence ESP-01/01S, support Arduino IDE, Essence ESP8266Flasher and Lexin FLASH_DOWNLOAD_TOOLS and other download software software one-click download, no wiring, no need to press any button. The WiFi module will automatically enter the download mode.

Download tool【FLASH_DOWNLOAD_TOOLS_V3.6.4.zip】

Download example:

First, NodeMCU firmware download

1. Insert ESP-01 SUNLEPHANT correctly

2. Insert the computer USB interface and view the serial port. If there is no driver, please download the CP2014 driver:

Download link: //www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-drivers

3. Set related parameters and select firmware
