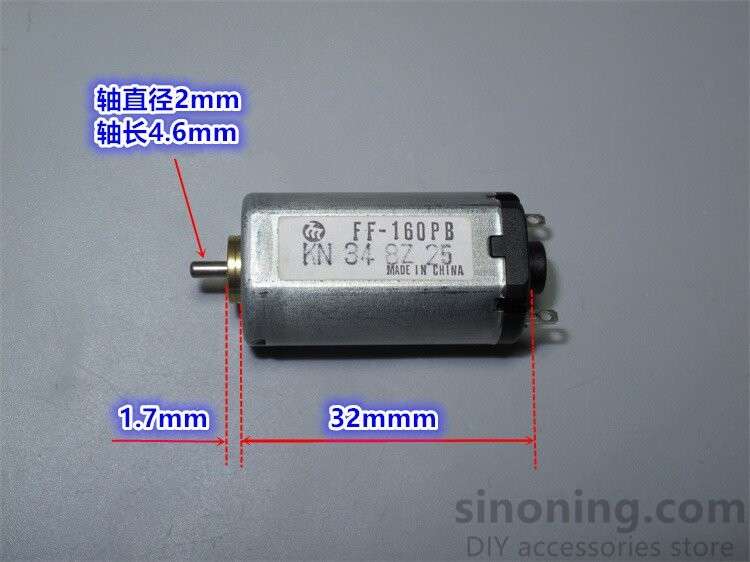

FF-160PB-2852 motor, precious metal brush, the applicable voltage is DC1.5V-6V, it is estimated to be used in electric shavers and toys, power motor, the brush is a precious metal high-current 4-row brush, commutator Silver plated, very good quality small motor.
The actual test motor speed under different voltages of 1.5V-6V is as follows:
1.5V voltage: no-load current 0.16A, speed 5500 rpm
3V voltage: no-load current 0.19A, speed 11500 rpm
6V voltage: no-load current 0.35A, speed 22000 rpm
Weight about 28 grams
