Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module

Availability:

120 in stock

Sales 1

$1.64$2.72

100pcs Straw Hat16-Way Water LampFlash Lamp Diy KitRed Blue Double ColoWhite 10 plus 1 LED
Clear



Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module
Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module
Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module
Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module
Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module
Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module
Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module
Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module

About 100pcs Straw Hat

5 mm highlight the white light straw hat brightness leds (astigmatism) : 1200-1400 MCD

The length of the pins: > 15 mm
Diameter: 5 mm
Reference voltage: 3.0-3.2 V
Reference current: 5 ma, 20 ma

Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module

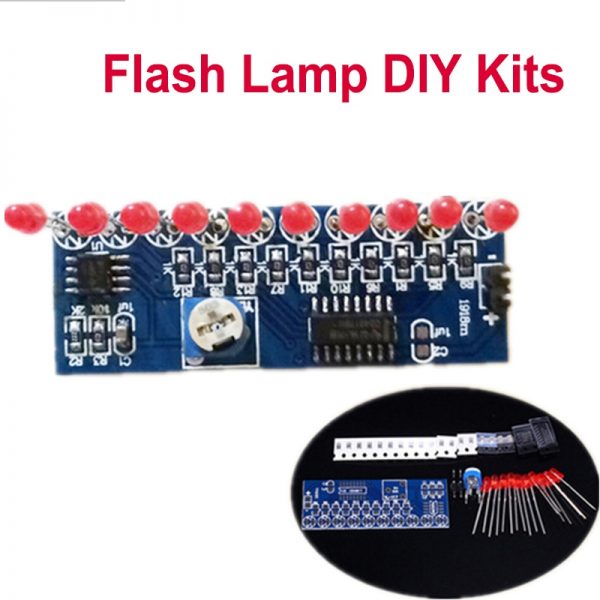

About Flash Lamp Diy Kit

Product Introduction:
1.Name:NE555+CD4017 water flowing lamp suite
2.Power Voltage:2.5-14.5V
3.PCB Size:5.4*2.1cm
4.PCB Thickness:1.6mm

Packing List:
1.PCB:1pc
2.2P Pin:1pc
3.1uF Capacitor:2pcs
4.3mm LED Red:10pcs
5.1K ohm Resistor:10pcs
6.2.2K ohm Resistor:1pc
7.10K ohm Resistor:1pc
8.50K Potentiometer:1pc
9.NE555:lpc
10.CD4017:1pc

Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module

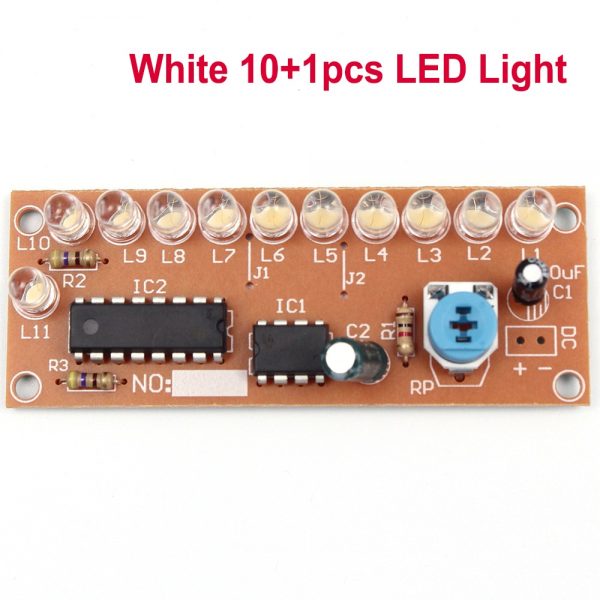

About White 10+1pcs LED Light

1. Function.
1>. It is DIY kit. User need to weld it.
2>.It is suitable for beginners

2. Component listing.
Component Number Parameter Quantity
Resistance R1 1K 1
Resistance R2,R3 470ohm 2
Potentiometer RP 200K-2M 1
CD4017 IC2 DIP-16 1
NE555 IC1 DIP-8 1
LED L1-L11 5mm 11
Electrolytic capacitor C1 100uF 1
Electrolytic capacitor C2 0.1-1uF 1
PCB 1

Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module

About 16-way water lamp

1.Description:
You can achieve any combination of your favorite 16-way water lamp effect, very interesting, simple circuit, the assembly success rate is high.

2.Feature :
Adopt 1.5mm thickness board, enlarged pad, relatively wire.

3.Work Status:
Core circuit is NE555 and 74HC595, the two keys can change the lighting cycle start point LED status so as to achieve random flowing combination. LED is ultra bright warm white LED, and it can be used as small night lamp

Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module

About Red Blue Double Color Flashing

1. Description.
This suite adopts simulation light circuit made with NE555 and CD4017,the blue LED and red LED flashed alternately according to the pulse. The multivibrator composed of NE555 will have a certain frequency of oscillation signal send to CD4017 decimal counter/pulse distributor,in order to count. When the 1,3,5 pulses arrive Q0,Q2,Q4 output high level in turn,blue LED flashes 3 times,Q5,Q7,Q9 output high level in turn.Red LED flashes 3 times,blue LED flashes again when 11,13,15 pulses come,blue and red LED flashes alternately circulatory,so as to like the alarm lamp.Change the RP1 size can change the oscillation period, thus changing the LED shining speed, the whole circuit DC9-12V can be worked.
Red flashing light and blue flashing light form a board separately,connected with the main board through the stamp hole.If you need to install to other place separately or increase the distance,you should cut off through the stamp hole,then connect with the mother board by two wires.Please pay attention to the direction of LED when installing,especially the direction of L11 and L12.The R2 and R3 controls with the brightness of light,you can change it appropriately ,the range is 10-100 ohm.

Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module
Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module
Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module

Please note

All the products are DIY Kits, not assembled, need DIY assemb by yourself, thank you!

Flashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED ModuleFlashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED ModuleFlashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED ModuleFlashing Lights DIY Kit Strobe NE555 + CD4017 Electronic Practice Learning Kits Suite Parts Light Water Flowing LED Module
SKU: 33026682233 Category:
Brand Name

IS

Condition

New

Type

Logic ICs

Model Number

Flashing Lights DIY Kit

Application

Other

Operating Temperature

-20 ~ 85 celsius

Supply Voltage

2.5-14.5V

Dissipation Power

none

Package

SOP

is_customized

Yes
