For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage

Availability:

1469 in stock

Sales 1

$1.74 $1.98

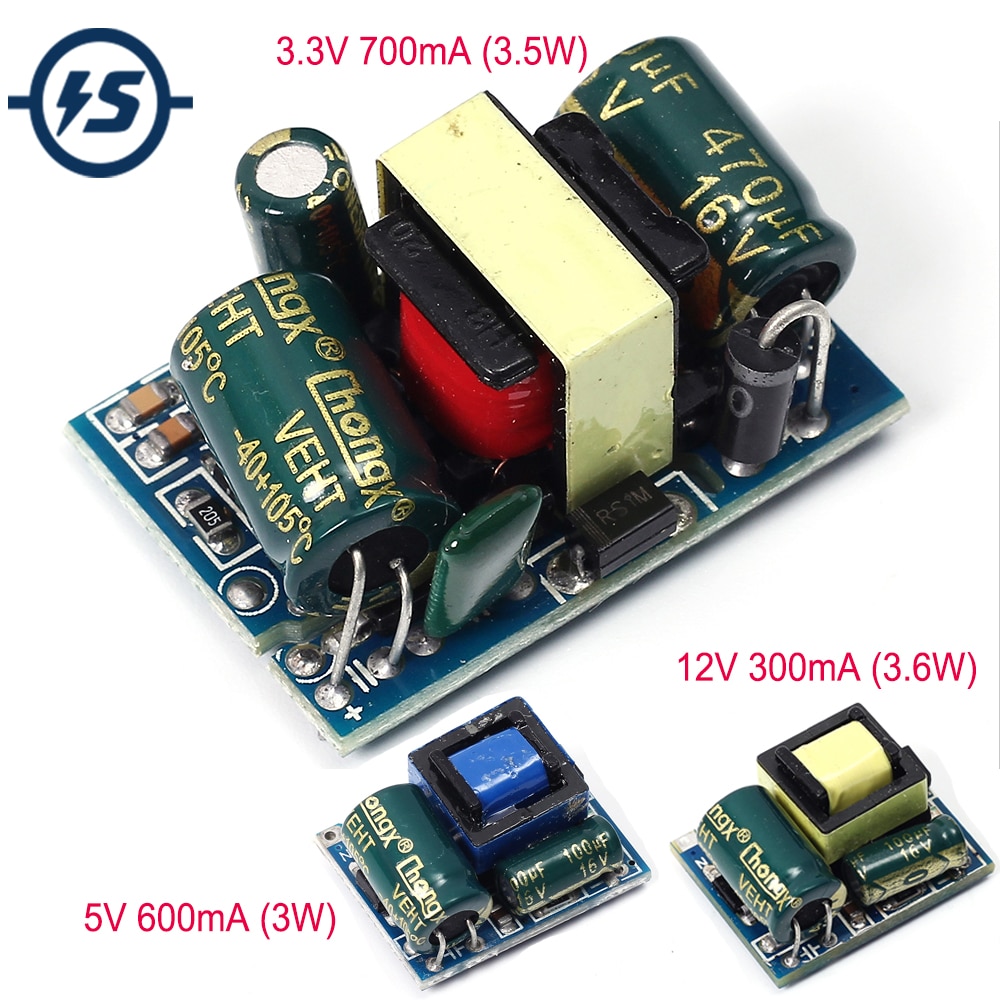

12V 300mA 3.6W3.3V 700mA 3.5W5V 600mA 3W
Clear
Compare



For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage
For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage
For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage
For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage
For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage
For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage
For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage
For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage

For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage

1.Description:

1>. Input Voltage Range: AC 55-277V; DC 70-390V

2>. No Load Power: <0.05W; max input power: 3.5W

3>. Output Voltage: 5V; max output voltage range: 4.9-5.3V or 4.8-5.2V; ripple wave 60mW

4>. Output Current: 0-600mA; output indicator lamp 1mA red light

5>. Output Power: 3W; efficiency 80%

6>. Output Protection: overvoltage, overcurrent, overtemperature, overpower, short circuit protection etc

7>. Applications: for zero line, live line intelligent switch, intelligent socket, equipment and instructions, other controllers etc

8>. Working temperature:-25~85℃

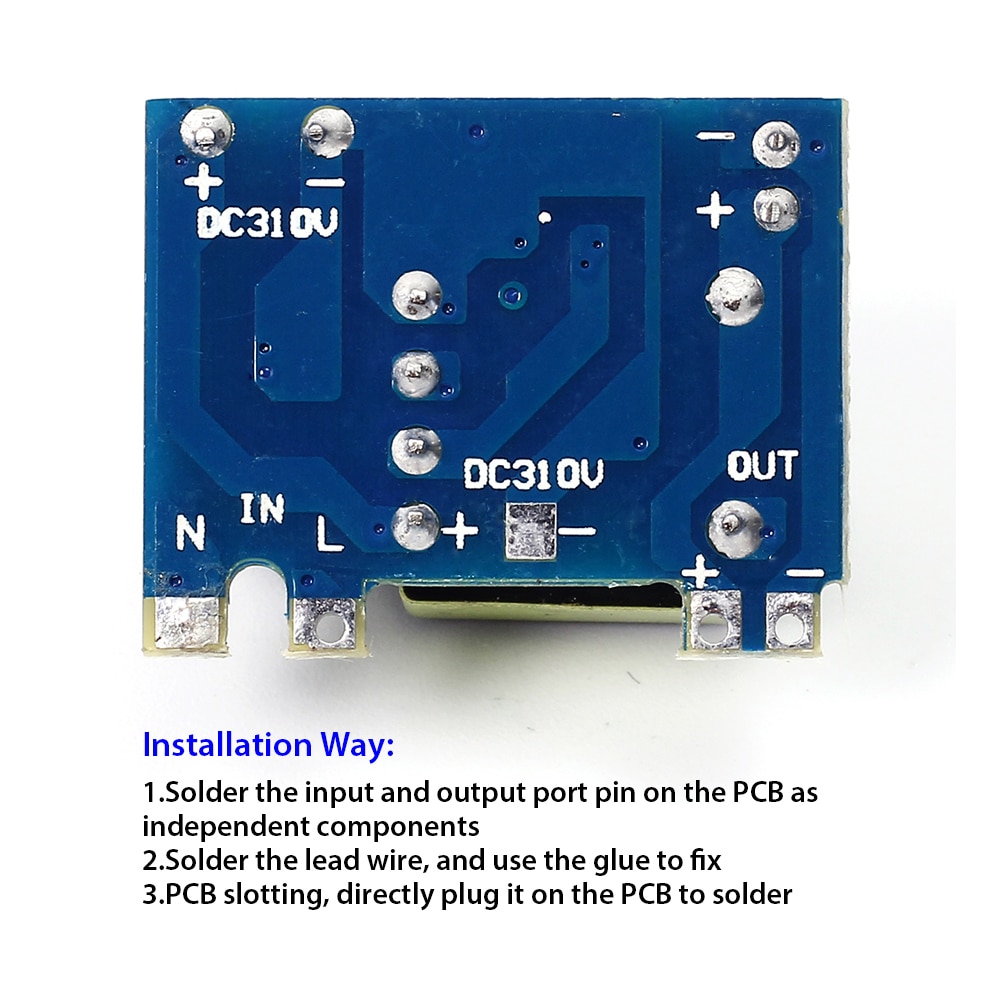

2.Installation Way:

1>. Solder the input and output port pin on the PCB as independent components

2>. Solder the lead wire, and use the glue to fix

3>. PCB slotting, directly plug it on the PCB to solder

3.Note:

If it is used in single live line intelligent on-off value, take off the LED and change the starting resistor will be OK; if you want to change 10M resistor into 20M, just remove the LED.

For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module VoltageFor Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module VoltageFor Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage

For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage

For Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module VoltageFor Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module VoltageFor Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module VoltageFor Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module VoltageFor Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module VoltageFor Arduino Power Supply Module AC-DC 3.3V 5V 12V 600mA 3W Isolated Switching 220V to 3.3V 5V 12V Buck Step Down Module Voltage


SKU: 33021479220 Category:
Brand Name

IS

Condition

New

Type

Logic ICs

Supply Voltage

AC 55-277V; DC 70-390V

Package

SOP

is_customized

Yes

Dissipation Power

none

Model Number

AC-DC 3W Module

Application

Computer

Operating Temperature

-25~85 Celsius

Max input power

3W 3.5W 3.6W

Output Voltage

3.3V 5V 12V

Output Current

0-700mA
