Introduction：

• A novel design has already coming for the tank chassis, with beautiful shape, and full metal aluminum alloy structure. In this tank chassis, a space for 9g servo is left for the ultrasonic sensor, and a space for MG995 servo is also left to rotate the mechanical manipulator. What’s more, UNO R3 and NodeMCU development boards are also designed to install. In addition, the metal panel can be used to install the wheeled car by install the 25mm and/or 37mm motor frames. Interesting, a LED light is installed to brighten the dark in the night. Under the help of the motor, the tank chassis can be smoothly turn left, right, circle, forward and backward, ect. Therefore, when you get the chassis, it can do many things for you, like getting the temperature and mobile monitor. Certainly, we have developed a series of car/tank chassis. Hoping you can choose your loved car chassis.
• More details, please visit: wiki.doit.am to download the source code and the documents

<span style="font-family: times new roman , times , serif"><strong><span style="font-size: 18.0px">Features：</span></strong></span>

• Novel and elegant appearance;
• Aluminum alloy;
• Solid structure;
• Powerful force;
• Quickly,stability, flexibility;
• Strong power;

Parameters:

• Name: TS100 Intelligent track car/tank chassis
• Material: aluminum alloy
• Wheel: metal
• Track: engineering plastic

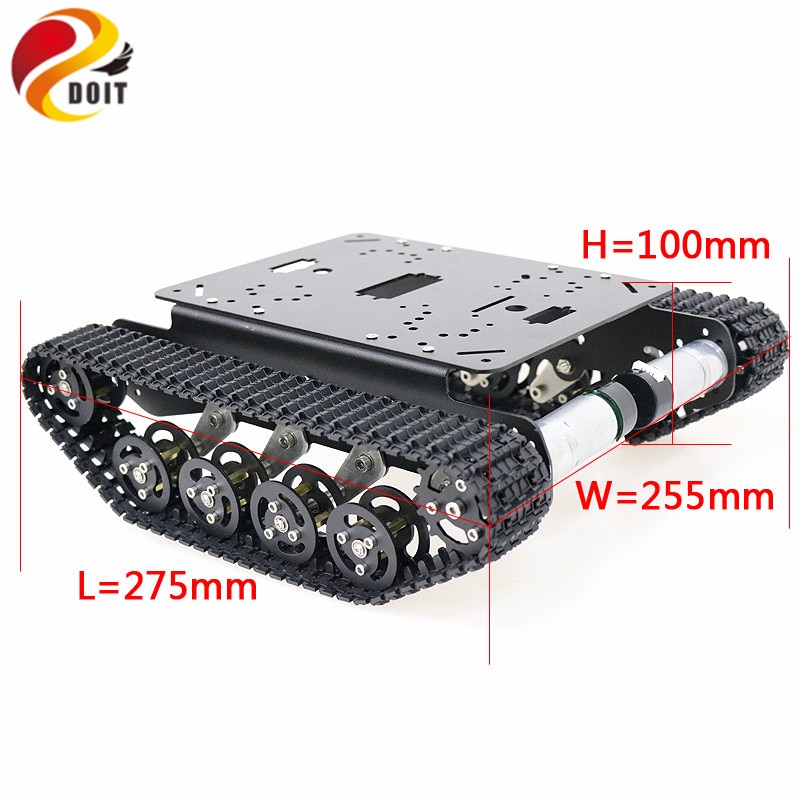

• Product size: as picture showed
• Weight: 1100g
• Color: black

<span style="font-family: times new roman , times , serif"><strong><span style="font-size: 18.0px">Package Included:</span></strong></span>

• Chassis: 1 pcs
• Driving wheels: 2 pcs
• Bearing wheels: 10 pcs
• Track: 2 pcs (can be changed the length)
• DC motor: 2 pcs
• Screws: several

<span style="font-family: times new roman , times , serif"><span style="color: #ff0000"><strong><span style="font-size: 18.0px">Note: the tank chassis is unassembled, pls visit the wiki.doit.am to get the installation manual.</span></strong></span></span>

<span style="font-family: times new roman , times , serif"><strong><span style="font-size: 18.0px">Motor:</span></strong></span>

9V 150rpm motor with encoder:

12V 300rpm motor without encoder:

12V 180rpm motor with encoder:
