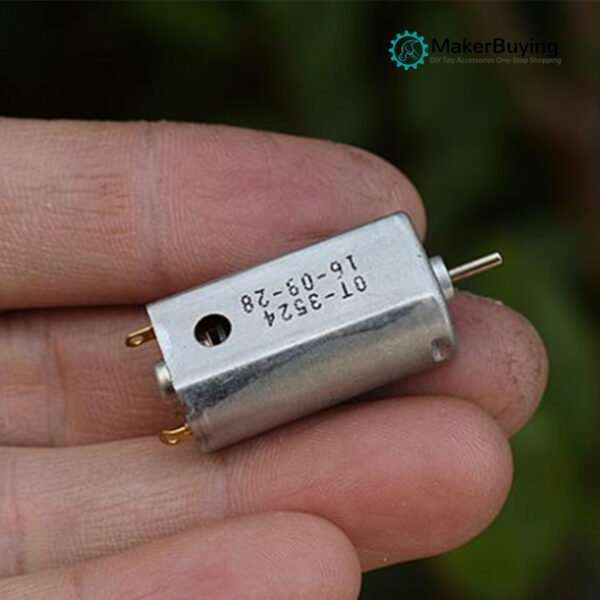

High-speed high-power aircraft model 050 motor 3.7V 24500 rpm carbon brush rare earth strong magnetic large torque

Sales 0


The magnetic force of the motor is very strong, and it can suck up a large string. Although it is not a white magnetic steel motor, it must be a rare-earth strong magnetic motor, but the magnetic force is also quite good, close to the white magnetic steel. The shaft of the motor turned by hand is very tight, this is the reason for the strong magnetic force, not the motor is broken, please understand the buyer’s friend.

Motor specification: 11.7*15.3 MM

Motor height: 26.9 MM

Output shaft: 1.5MM

Output shaft length: 7 MM

Voltage: DC 3 V

Speed : 19800 rpm

No-load current: 0.58 A

Voltage: 3.7 V

Speed: 24500 rpm

No-load current: 0.6 A

Weight: 19g

This motor is a strong magnetic high-power aircraft model motor, so the power is stronger than the ordinary 050 motor. Please note that the current of the power supply must be at least 6 A. If the current is too small, it will affect the power and torque of the motor.

SKU: M245 Category:
Weight0.06 kg
