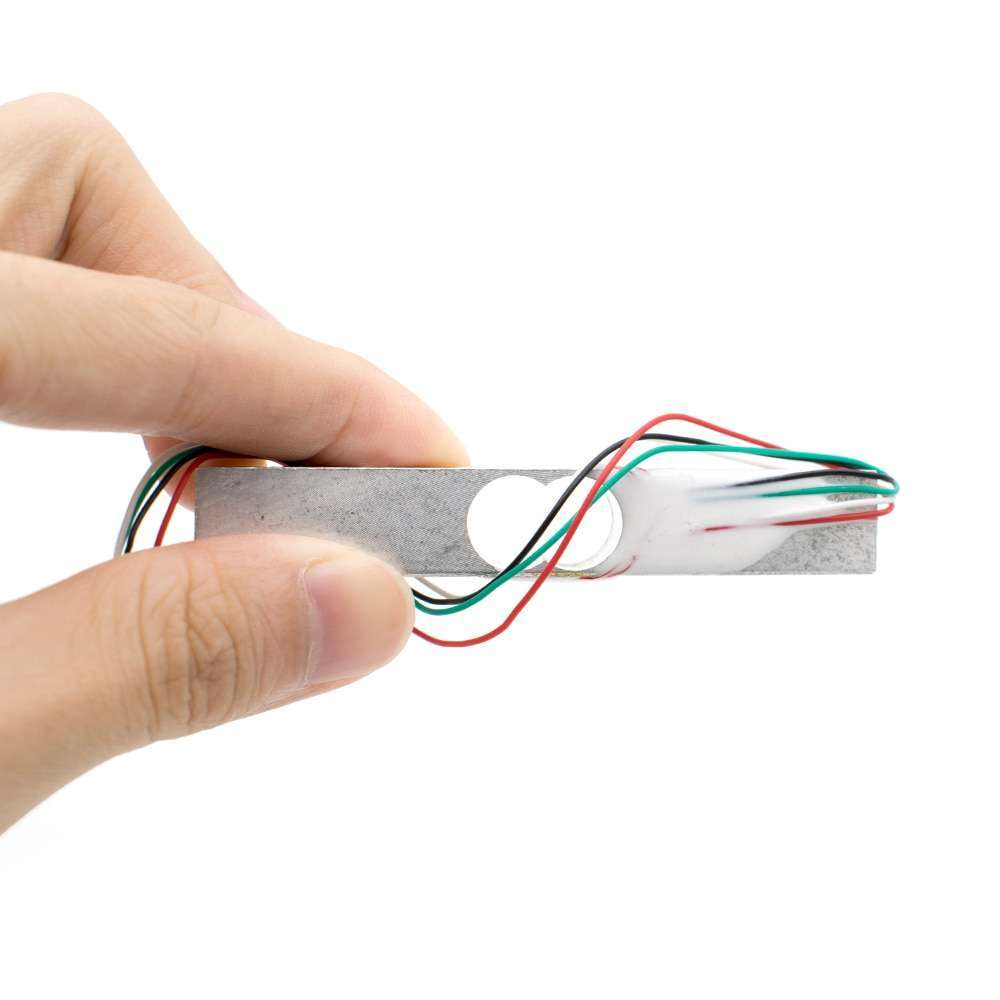

Load Cell 1KG 5KG 10KG 20KG HX711 AD Module Weight Sensor Electronic Scale Aluminum Alloy Weighing Pressure Sensor

Availability:

99932 in stock

4 Sales


$1.82$2.67

10KG sensor1KG sensor20KG sensor5KG sensorHX711 module
Clear

Features

Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controlsno programming needed
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
Operation supply voltage range: 2.6 ~ 5.5V
Operating Temperature Range:-20 degree ~ +85 degree
Connection:
Red to E+
Black to E-
Green to A+
White to A-
Load Cell 1KG 5KG 10KG 20KG HX711 AD Module Weight Sensor Electronic Scale Aluminum Alloy Weighing Pressure SensorLoad Cell 1KG 5KG 10KG 20KG HX711 AD Module Weight Sensor Electronic Scale Aluminum Alloy Weighing Pressure SensorLoad Cell 1KG 5KG 10KG 20KG HX711 AD Module Weight Sensor Electronic Scale Aluminum Alloy Weighing Pressure SensorLoad Cell 1KG 5KG 10KG 20KG HX711 AD Module Weight Sensor Electronic Scale Aluminum Alloy Weighing Pressure SensorLoad Cell 1KG 5KG 10KG 20KG HX711 AD Module Weight Sensor Electronic Scale Aluminum Alloy Weighing Pressure SensorLoad Cell 1KG 5KG 10KG 20KG HX711 AD Module Weight Sensor Electronic Scale Aluminum Alloy Weighing Pressure Sensor
SKU: 4000078618409 Category:
Brand Name

TENSTAR ROBOT

Usage

Pressure Sensor

Type

Acceleration Sensor

Theory

Resistance Sensor

Output

Switching Transducer

Model Number

HX711

Material

Metal
