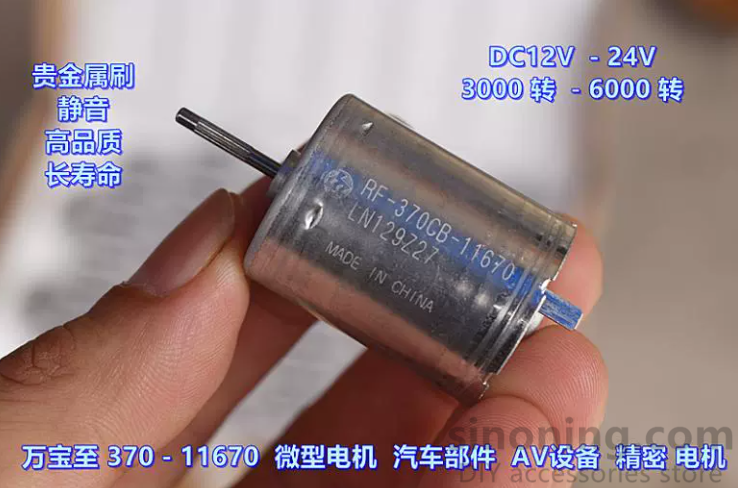

MABUCHI RF-370CB-11670 DC 12V-24V 6250RPM Precious Metal Brush Mute Micro Motor Low Speed Current Electric Motor
Availability:
292 in stock
Sales 9
$4.73
292 in stock
1.The motor was removed from the black box part, not brand new
2.Model: RF-370CB-11670（Notes: Motor output shaft contains worm ）
3.Motor diameter: 24.3mm
4.Motor height: 30.8mm
5.Output shaft diameter: 2.0mm
6.Output shaft length: 15mm
7.Weight: 53g
8.Voltage range: DC 12V-24V
9.Test data:
Voltage: 12V Speed:3100RPM No-load current:12mA
Voltage: 18V Speed:4700RPM No-load current:17mA
Voltage: 24V Speed:6250RPM No-load current:30mA
| Weight | 0.01 kg |
|---|---|
| Certification | ce |
| Commutation | Brush |
| Model Number | RF-370CB-11670 |
| Type | Micro Motor |
| Protect Feature | Totally Enclosed |
| Construction | Permanent Magnet |
| Usage | Home Appliance |
| Efficiency | IE 1 |
| Output shaft diameter | 2mm |
| Output shaft length | 15mm |
| Voltage range | DC12V-24V |
