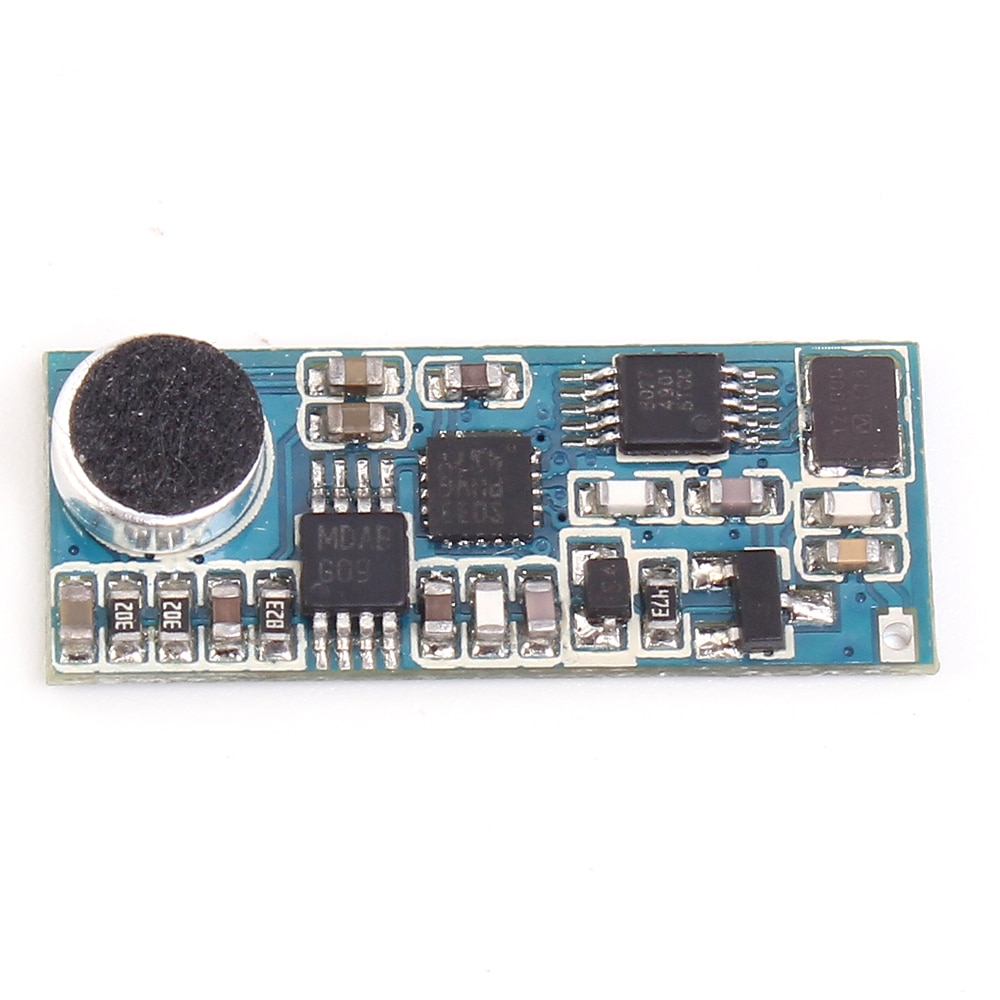

Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz

Availability:

946 in stock

1 Sales

$6.78 $9.98

946 in stock

Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz
Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz
Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz
Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz
Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz
Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz
Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz
Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz

Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHzProduct Introduction:

1.Output Power:100mW
2.Audio Frequency Response Range:50Hz-18KHz
3.Transmitting Frequency:76.0MHz-108.0MHz
4.Modulation Mode:standard FM
5.Sound Track:single channel
6.Power Supply Voltage:DC 3.0V-5.0V
7.Operating Current:35mA
8.Adaptive Antenna:75cm bar antenna

Features:

1.Adopt FM PLL Technique
2.Adopt Audio Low Noise Operational Amplifier as microphone amplification
3.Power Off Automatic Memory Previous Frequency
4.Adopt High Precision SMD Quartz Crystal Stabilizing Frequency
5.PC Port Configure Transmitting Frequency By Serial Port

Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHzMini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz

Frequency configuration method and procedure:

1: USB to TTL module and the module connection method

(1): Connect the GND, RXD, TXD and 5V ports of the USB to TTL module (need to be purchased separately) to the GND, TX, RX, VCC of the module
As shown below
Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz
2: install USB to TTL serial port module driver
(1): install CH341SER_V3.3USB to serial port module driver folder inside
CH341SER_V3.3 [2012-02] .EXE

(2): connect the USB to the serial port module and the module after the insertion of USB to serial module to the computer, waiting for the driver to install automatically, after the installation is complete automatically open the device manager to see USB to TTL module corresponding serial port number

Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz

Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHzMini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHzMini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHzMini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHzMini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHzMini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz



SKU: 32776382488 Category:
Brand Name

IS

Condition

New

Type

Logic ICs

Package

SOP

Model Number

Mini FM Transmitter Module

Application

Mobile Phone

Operating Temperature

-20~70 celsius

Supply Voltage

3.0V-5.0V

is_customized

Yes

Frequency Response

50Hz-18KHz

Output Power

100mW
