DC control four-way FET MOS electronic switch control board pulse trigger switch

Product description:

1: FET module, the input and output are completely isolated.

2: Signal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.

3: Input signal voltage: 3V~20V; current: about 5ma.

4: The output can control high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.

5: Output controlled voltage: 5V~36V. Current: less than 5A, more than 5A need to add heat sink, the maximum can not exceed 20A.

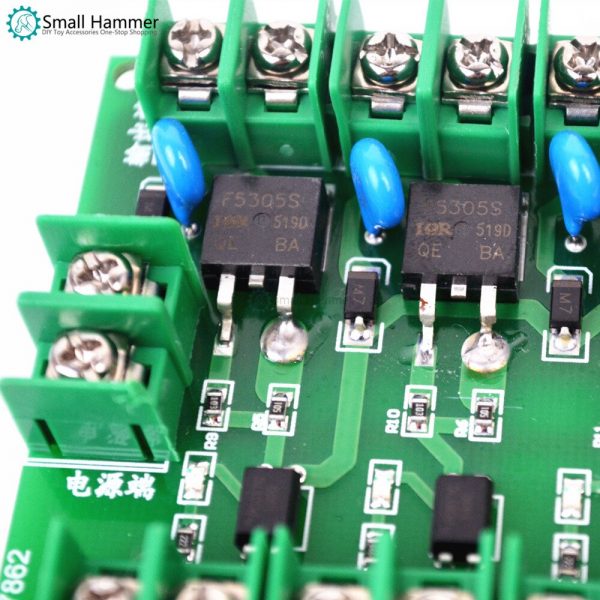

6: Using the original F5305S power FET, you can input PWM, control the motor speed, the brightness of the lamp and so on.

Weight: 54g
