Naughty Dragon WPL D12 Micro Card Suzuki Truck Remote Control Receiving Board Set Full Scale Rudder Electromechanical Adjustment SNRM146

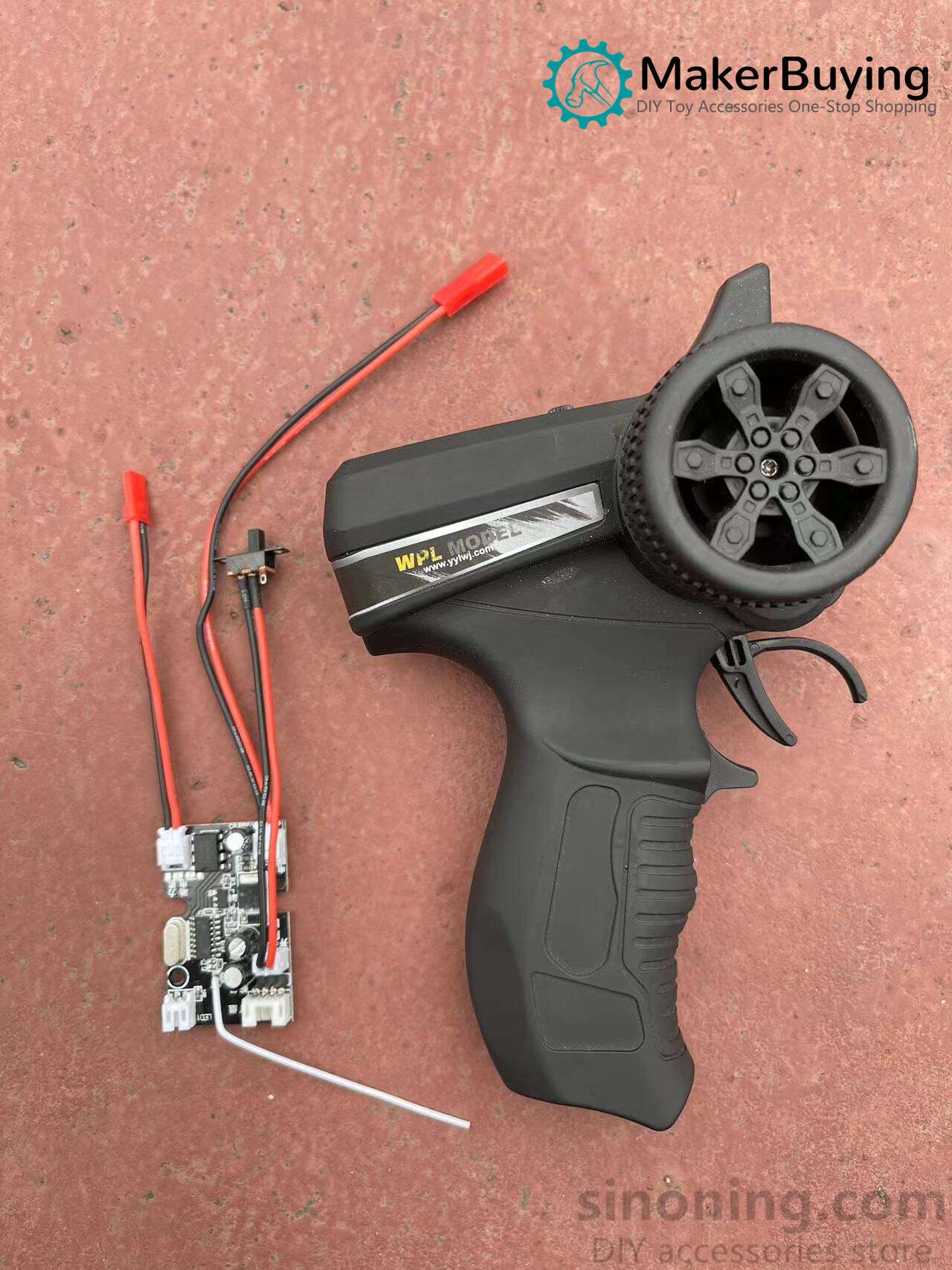

Naughty Dragon D12 Microcard Original Car Remote Control Receiving Board
It can also be used for other vehicle models, please note that the parameters must be appropriate
Before installing and powering on, make sure that the front and back of the circuit board do not touch any metal objects, otherwise a short circuit may cause a series of faults
The surface of the remote control is frosted and powered by two No. 5 batteries
The working voltage of the circuit board is 6V-9v, and it is recommended to use a 2s 7.4v lithium battery for power supply
The maximum motor output current is 7A, rated at 5A
Two channels, one channel controls the 3-wire steering gear for steering, and the two channels directly control the motor. The motor can be up to 370 motors, and the power should not be too high. It is better to be rated within 5A (note that it is not a no-load current)
The circuit board plug is PH2.0, so when buying a plug yourself, be sure to pay attention to the positive and negative poles, and it will burn if inserted backwards!
The servo interface is DuPont 3P
