OPEN-SMART 4WD Serial Bluetooth Control Rubber Wheel Gear Motor Smart Car Kit with Tutorial for Arduino UNO R3 Nano Mega2560

Availability:

59 in stock

70 Sales

$24.88

59 in stock

Description

Use android phone and iOS phone to control smart car easily.

NOTE:

The kit does not include any battery.

You should use two 3.7V AA lithium battery(14500) to supply power for the car.

NOTE2:

You should know the package does not include any tutorial.

We can send the doc or tutorial download link to you by the station message system.

The kit is bluetooth remote control smart car kit that is designed for Arduino development. Every step has a clear graphic explanation, so the installation is very simple.

It contains an Arduino compatible PCB chassis that can be easily installed with Arduino UNO R3 / OPEN-SMART UNO R3 or other compatible motherboards.

You can follow the installation tutorial and video to assemble the car, and each step has a clear graphic explanation, the installation is very simple.

Gear motors and battery holder are all XH-2.54 connectors, so you can plug them directly onto the corresponding white socket on the chassis.

After installation, please follow the operations in the tutorial video, so you can directly use the android phone to control the car.

In addition to use the touch buttons on the APP page, you can also use the gyroscope control built in the phone.

The kit can help you learn Arduino programming and learn how to make interesting projects, such as ultrasonic distance measurement and display, ultrasonic obstacle avoidance, bluetooth remote control smart car.

NOTE3: The car will be shipped disassembled.

Features:

– Rubber tires: beautiful and wearable

– Using the TT gear motors, small, large torque, long service life

– Gear motor has been soldered wires, easy to use

– The car chassis has been soldered regulator circuit and motor drive module, can be directly connected to motors.

– Car chassis can install Arduino UNO R3 and compatible motherboard, Digispark Motherboard

– You can install HC-SR04 ultrasonic sensor.

– You can use the included bluetooth wireless transceiver module, and instead you can use other wireless modules such as infrared, NRF24L01 transceiver module, 433M remote control kit.

– It is suitable for DIY Smart car project.

Photos

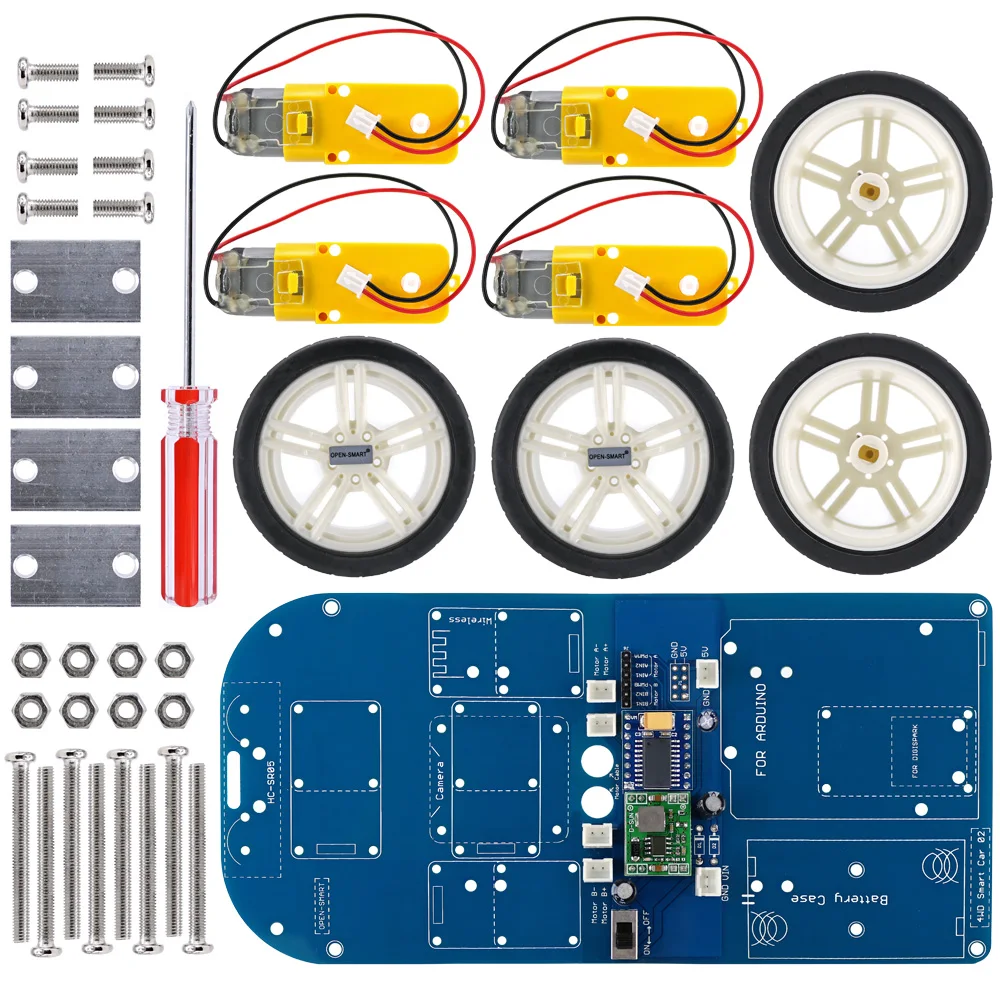

Part List ( Schematics and program can be sent via e-mail,Please contact us)

1 x PCB Car Chassis

1 x OPEN-SMART UNO R3 Development Board

1 x 50cm USB Cable

1 x IO Expansion Shield

1 x Ultrasonic Sensor module

1 x Ultrasonic Sensor Acrylic stand

1 x Serial Bluetooth module

1 x 4-Digit Display module

4 x Gear Motor with Connection Wires(15cm)

4 x Motor Fixing

4 x Wheels

1 x 14500 Battery Holder

1 x Cross screwdriver 3*75mm

1 x 40P Female to Female Header Dupont Wire(20cm)

1 x White Nylon Rivet (R2672)

12 x Black Nylon Rivet (R2064)

3 x Copper Pillars (M3x6+6mm)

3 x Steel Screws (M3x5)

3 x Steel Hex nuts (M3 x 2.5)

1 x Packing List

SKU: 32843503551 Categories: ,
Brand Name

OPEN-SMART

Accessory Type

Extension Board

Compatible With

Arduino UNO R3

Products Status

Stock
