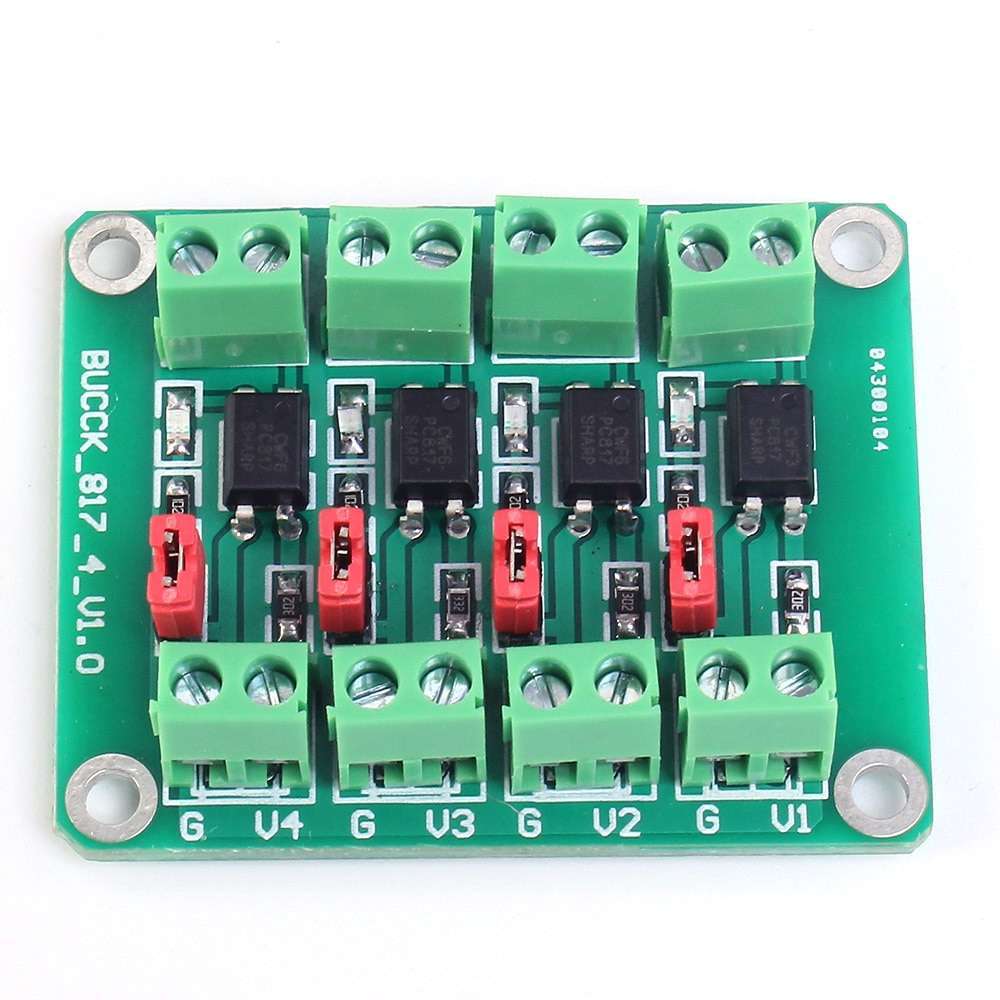

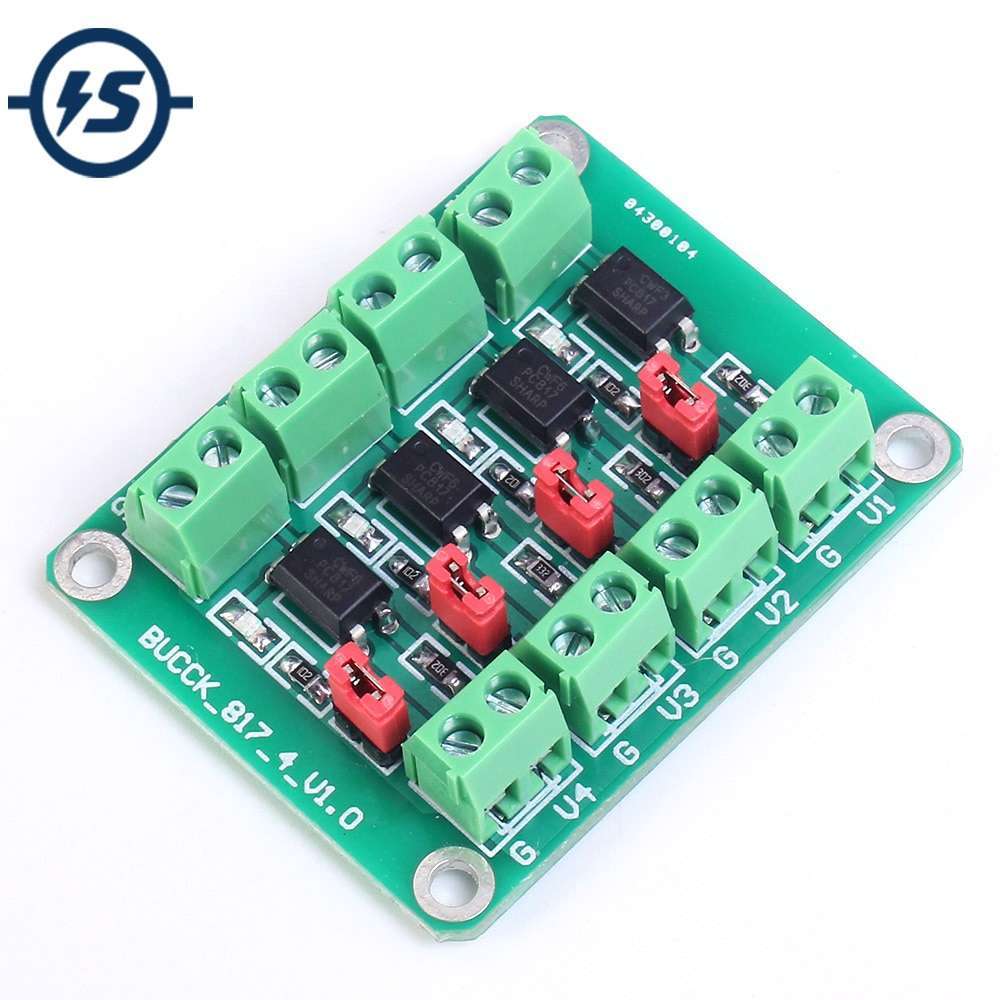

1.Driving Port Signal Voltage:3.6-24V 2.Output Port Voltage Port:3.6-30V 3.Jumper Cap Can Achieve Output Port Is High POtential Or Pull Down Output 4.Onboard 4-Channel 817 Are Independent:can achieve different voltage control at then same time
NOTE:
The input port is shared with GND;
The output ports are independent of each other;
It is optocoupler output.V and G will be connected after input valid signa in input port.
Product Introduction:
