PL2303 PL2303HX/PL2303TA USB To RS232 TTL Converter Adapter Module with Dust-proof Cover PL2303HX for arduino download cable

(0 customer reviews)
Availability:

98707 in stock

1 Sales


$0.95$2.48

PL2303HX cablePL2303HX modulePL2303TA cable
Clear
 Note: PL2303TA supports WIN10, but PL2303HX does not PL2303HX module
Adopt imported controller RS232 TTL,which can stabilize the flash with high speed
500mA self recovery fuse for protection
Two data transmission indicator can monitor data transfer status in real time
Reserve 3.3V and 5V pin interface,easy for the DDWRT of different voltage system that need power
The entire board is coated by high quality transparent heat-shrinkable sleeve,making the PCB in insulation state from outside,
so that the board won’t burnt down by material short cut.
Electrostatic package,insures the board will not be damaged before use
Support: Win7,Win8,Vista,XP

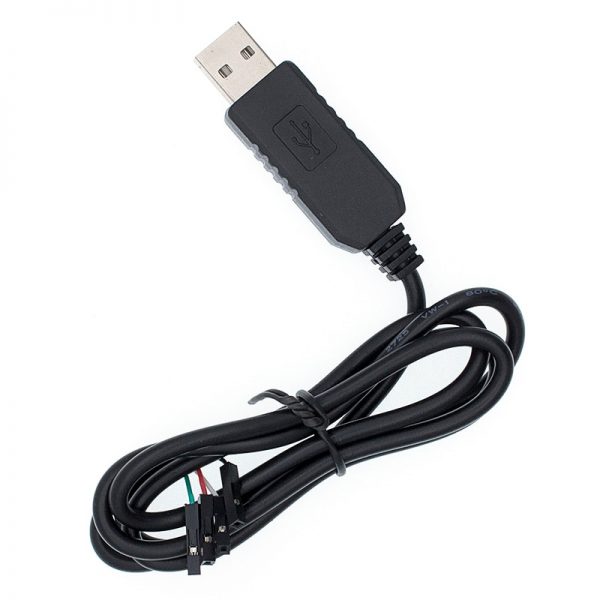

PL2303HX Cable
PL2303 PL2303HX/PL2303TA USB To RS232 TTL Converter Adapter Module with Dust-proof Cover PL2303HX for arduino download cable
Line sequence defined red +5 V, black GND, green RXD, white TXD

Special note:

(A) the connection just to sell a small plate, a tool. We use are not familiar with, they can not provide operational guidance. Many models on the market, and the abilities of each person and far, so we can not be maintained that you can succeed. Not because he did not succeed and give us neutral or negative feedback, then we blame than Dou!

(B) We sent out a tested, to remind buyers do not get directly after the operation, in order to avoid not think there is a problem. First do a simple test is simple: if you put the line plugged into the computer, the computer prompts “Found New Hardware ….” connected (GND) with a multimeter black pen, red pen to pick up (RX) and (TX) voltage can be measured, then the small plates must be good. Special instructions here (GND) to the voltage pins, power must be burned, so user wiring must be accurately measured the pins of the device, so as to avoid unnecessary losses!

Some buyers are not careful burned chip or not operate or machine itself does not support the upgrade, say, our board Please buyers Bypass, thank you. Such a situation does not give return or refund the behavior of not receiving the assessment and Poor.

Note: 3.3V and 5.0V output is set (this is the power supply to the microcontroller, upgrade machines do not need the small plate) unplugged from the computer, set the jumpers to take, do not live to avoid damage to the equipment.

Pin connection and description

The wrong connection be sure to find the pin definitions, especially GND must not be connected to the voltage on the pin, and the RX and TX terminal is not connected to the VCC pin (actual measurement of some VCC pin voltage up to 14V.) shall be burnt adapter cable chip, certain note, do not take their own small plate to experiment, or burn We are not responsible. Must find the pin definitions in the next.

Connection method: repeat Brush only need three lines, generally used in the RX TX GND three signal lines, the VCC without access. The above 4,5 needle friend, not connected to VCC and BT needle. Use RXD connected with the target board TX phase, TXD and target board RX, GND connected to GND if not, swap RX and TX.

Support: Win7,Win8,Vista,XP

PL2303TA Cable

PL2303 PL2303HX/PL2303TA USB To RS232 TTL Converter Adapter Module with Dust-proof Cover PL2303HX for arduino download cable

This is a newly designed product, using the Taiwan prolific production company PL2303TA chips, PL2303TA perfectly compatible with win XP/VISTA/7/8/8.1/10 system
PL2303TA provides a convenient solution for connecting an RS232-like full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. PL2303TA highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready without having to rewrite the COM port software application.
By taking advantage of USB bulk transfer mode, large data buffers, and automatic flow control, PL2303TA is capable of achieving higher throughput compared to traditional UART (Universal Asynchronous Receiver Transmitter) ports.When real RS232 signaling is not required, baud rate higher than 115200 bps could be used for even higher performance. The flexible baud rate generator of PL2303TA could be programmed to generate any rate between 75 bps and 6M bps.
PL2303TA is exclusively designed for mobile and embedded solutions in mind, providing a small footprint that could easily fit in to any connectors and handheld devices. With very small power consumption in either operating or suspend mode, PL2303TA is perfect for bus powered operation with plenty of power left for the attached devices. Flexible signal level requirement on the RS232-like serial port side also allows PL2303TA to connect directly to any 3.3V~1.8V range devices.
This product is designed for laboratory, product testing, low-cost MCU communications and other applications, there are four lead,
Red +5 V
Black GND
White RXD
Green TXD
Product Applications:
Single-chip upgrade solution for Legacy RS232 devices to USB interface
USB to RS232 converters/cables/dongles
Healthcare/Medical USB Interface Data Transfer Cable
Personal Infotainment/Media Player Docking USB Interface
Cellular/PDA USB Interface Data Transfer Cable
Serial-over-IP Wireless Solution
USB Barcode/Smart Card Readers
GPS/Navigation USB Interface
Point-of-Sale (POS) Terminals/Printers
PC Docking Station/Port Replicators
Industrial/Instrumentation/Automation Control USB Interface
USB Modem/Wireless/Zigbee USB Interface
Set-Top Box (STB) / Home Gateway USB Interface
BatteryCharger Application
MCU-based devices to USB interface
