1. Description:

This product is a mini size built-in TPA3116D2 chip with the power of 2*50W channel digital power amplifier board.

2. Parameters: XH-M564

Parameter

Value

Chip

TPA3116D2

Supply voltage

DC12-24V

output power

50W*2

Vocal tract number

2(Left+Right channel)

Appearance size

37*26mm

Power Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital Amplifier

=================================================================================================

1. Description:

This product is a mini size built-in TPA3116D2 chip with the power of 2*50W channel digital power amplifier board.

2. Parameters: XH-M562

Parameter

Value

Chip

TPA3116D2

Supply voltage

DC12-24V

Output power

50W*2

Vocal tract number

2(Left+Right channel)

Appearance size

37.2*25.6mm

Power Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital Amplifier

==================================================================================================

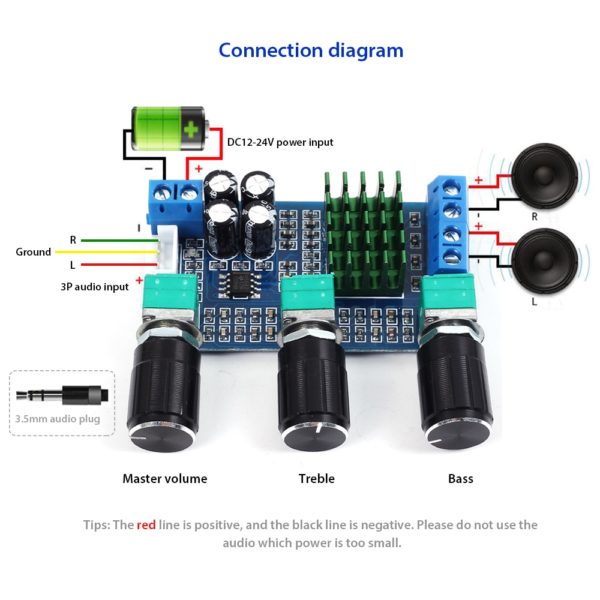

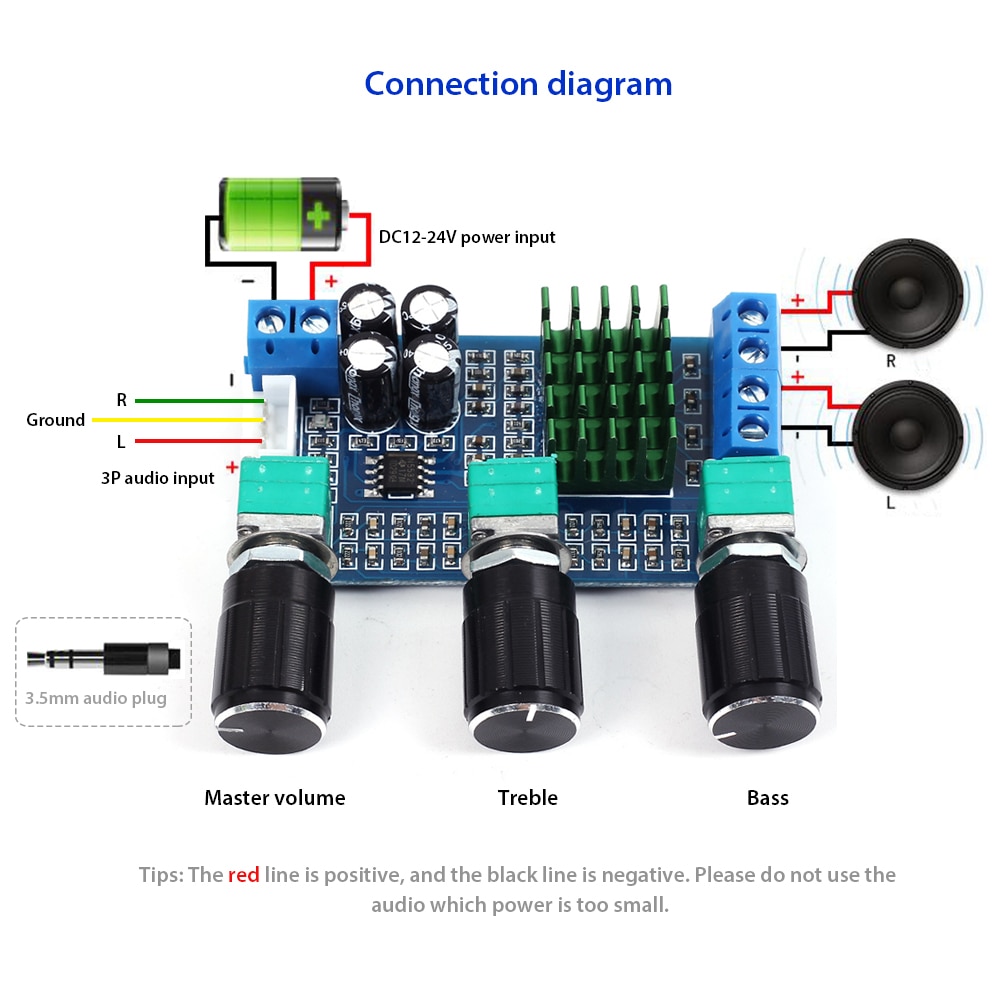

1. Description:

This is XH-M567 digital power amplifier board which is built in TPA3116D2 chip.

2. Parameters: XH-M567

Parameter

Value

Model

XH-M567

Chip type

TPA3116D2*1

Chip protection

Overvoltage, Undervoltage, Overheated, DC detection and short circuit

Output voltage

DC12-24V

Output power

Max 2*80W

Power efficiency

More than 90%

Vocal tract number

Dual channel

Appearance size

About 60*32*14mm

Net weight

About 40g

3. Collocation of the PCB:

1>. Before the preset level of operational amplifier.

2>. TPA3116D2 amplifier chip.

3>. Efficient array radiator

4>. Chip inductor

5>. Military grade PCB

4. Application:

1>. Connected mobile phone computer
2>. Home Theater
3>. DIY audio

Power Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital Amplifier

==================================================================================================

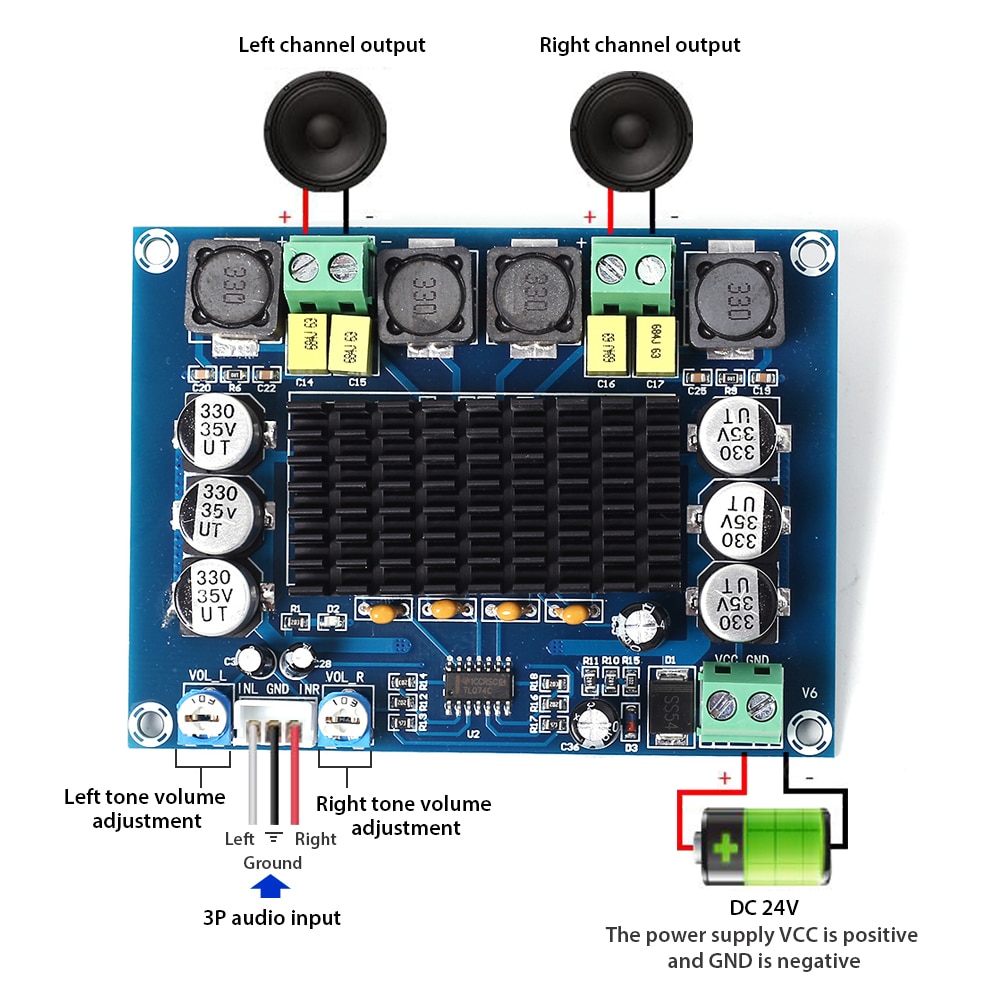

1. Description:

This is XH-M543 digital power amplifier board which is built in TPA3116D2 chip.

2. Parameters:XH–M543

Parameter

Value

Model

XH–M543

Chip type

TPA3116D2*1

Output voltage

DC12–26V (recommended using 24V)

Output power

Max 2*120W

Signal to noise ratio

100dB

Vocal tract number

Dual channel

Appearance size

About 92*68*17mm

3.Collocation of the PCB:

1>. Before the preset level of operational amplifier.

2>. TPA3116D2 amplifier chip.

3>. Efficient array radiator

4>. Chip inductor

5>. Military grade PCB

Power Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital Amplifier

==================================================================================================

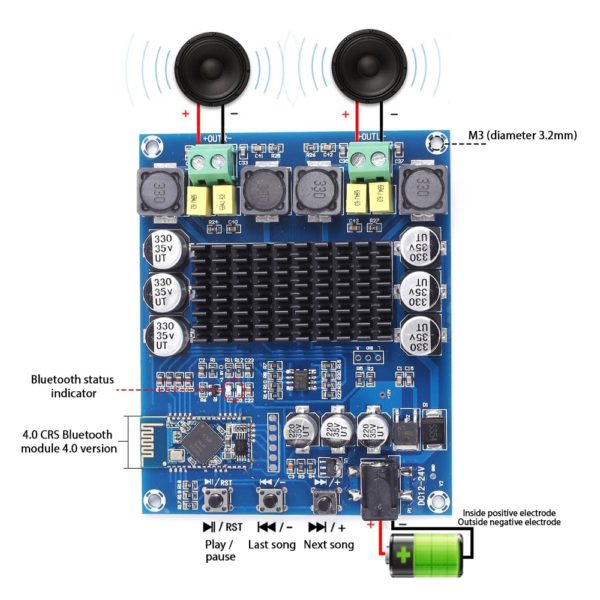

1. Description:

This product is a built-in TPA3116D2 chip with the power of 2*120W Bluetooth channel digital power amplifier board.

2. Parameters: XH-M548

Parameter

Value

Chip

TPA3116D2

Supply voltage

DC12-24V

Output power

120W*2

Supply current

More than 3A

Power ratio

More than 90%

Bluetooth module

BTM835/CRS8635 (4.0 version)

Transmission distance

Max 10M( without interfere)

Vocal tract number

2 channel (High bass control)

switching frequency

1.2MHz

Appearance size

98*80*18mm

3. Models that support Bluetooth connectivity:

Android series
IOS series
Windows series

4. Bluetooth connection method:

Take mobile phone as an example:
1>. Turn on Bluetooth.
2>. Open “Let all the devices around you detect your cell phone”.
3>. Click on the search device “Speaker”, to connect.
4>. Bluetooth state indicator does not blink alternately, open the player to listen to music.

Power Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital Amplifier

===============================================================================================

1. Description:

This digital amplifier plate adopts TPA3116D2 double chip. It is on-board operational functions. Its output power can reach 150W per sound channel. The switch machine has no impact sound, Support 2-8 ohm speakers.

2. Parameters:XH-M569

No.

Parameter

Value

1

Product name

TPA3116D2 double-channel amplifier

2

Product model

XH-M569

3

Core chip

Double TPA3116D2

4

Power supply voltage

DC 12V-26V

5

Rated power

150W * 2

6

Number of channels

left& right channel

7

Rim resistance

2 ~ 8 ohm

8

Appearance size

104*68*17mm

9

Net product

About 85g

3. Features:

1>. Wide voltage input. The maximum is 26V.

2>. The peripheral auxiliary circuit is optimized and the switch machine has no impact sound.

3>. Adopt PBTL scheme.Built-in dual chips. Support 2 European load.

4>. Preset T074 transportation, the power can reach 150W per sound channel.

Power Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital AmplifierPower Bluetooth Digital Amplifier Module 2*50W 2*80W 2*120W 2*150W Dual Channel TPA3116D2 Audio Stereo Digital Amplifier
