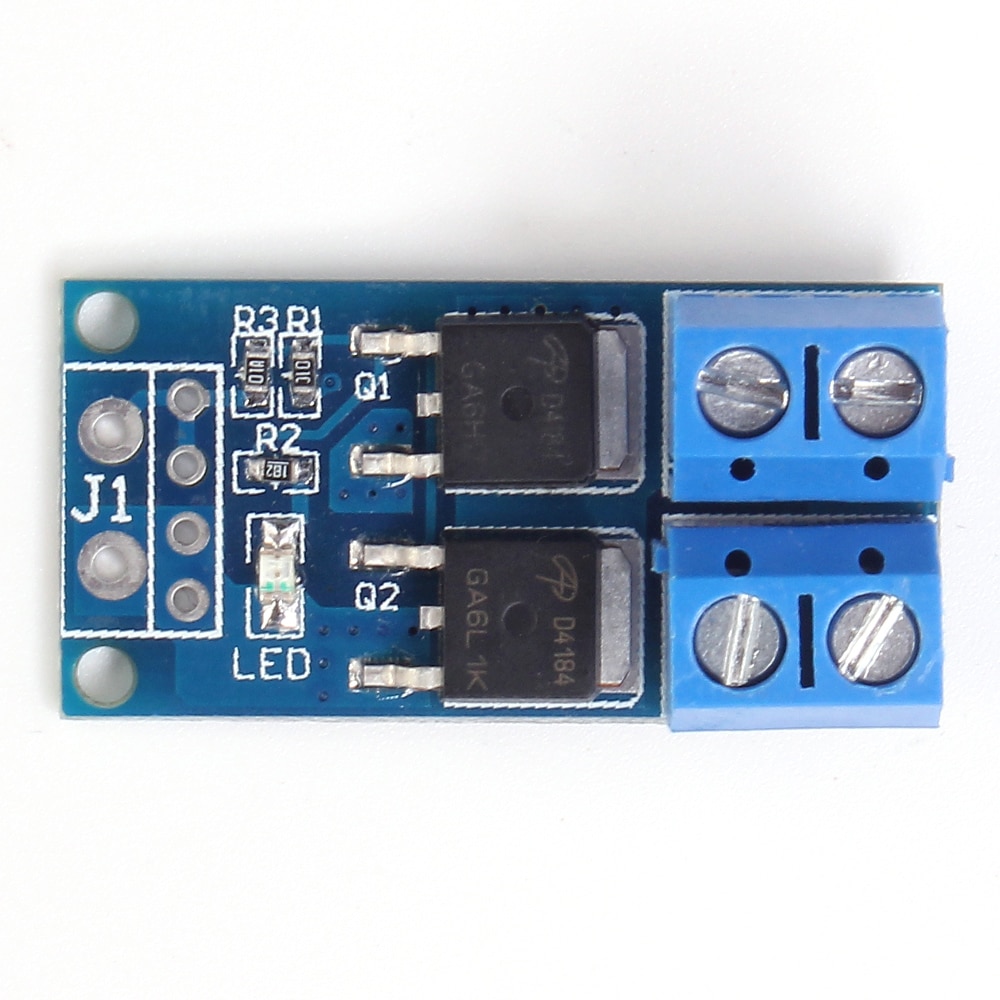

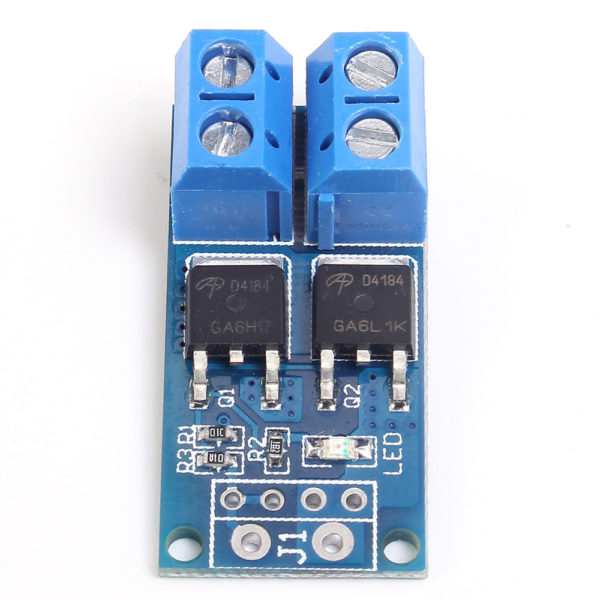

PWM Regulator MOS FET Trigger Switch Drive Module Electronic Switch Control Panel 15A 400W DC 5V-36V High Power Module

Product Introduction:

1.Operating Voltage:DC 5V-6V

2.Trigger Signal Source:digital high/low level (DC 3.3-20V),can connect with MCU IO port,PLC interface,DC power etc;can connect with PWM signal;support signal frequency 0–20KHz

3.Output Capacity:DC 5-36V/15A/400W

4.Operating Temperature:-40~85 Celsius

5.Size:3.4*1.7*1.2cm

6.Applications:motor,lamp bulb,LED lamp strip,micro water pump etc

Features:

​

1.Adopt Double MOS Parallel Connection Active Output

2.Wide Voltage:support PWM

3.Can Achieve High Power Equipment Control
