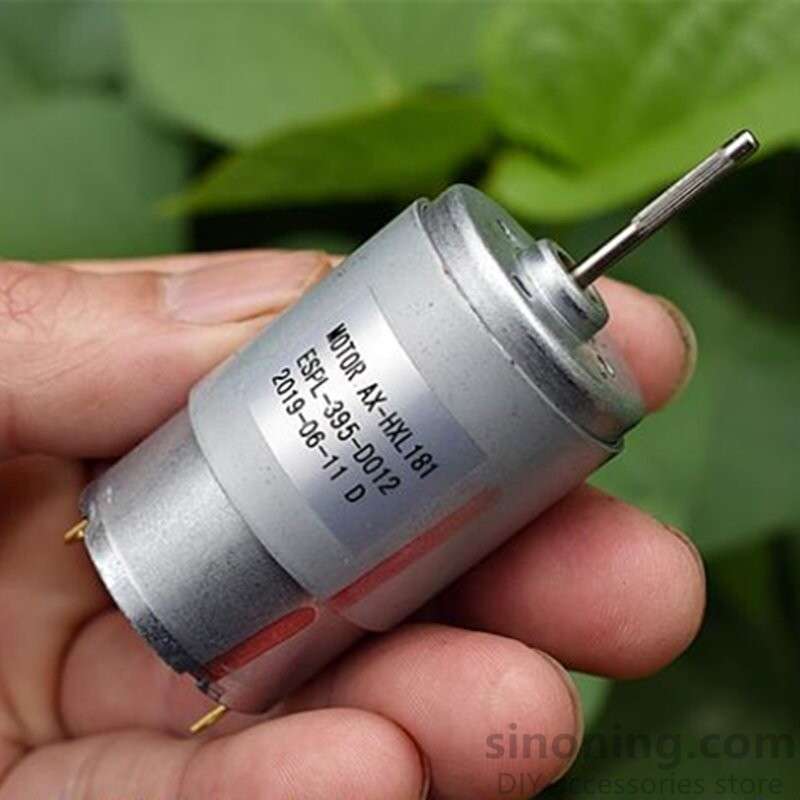

Quiet 395 Motor Metal Back Cover DC24V 8800 RPM Low Power Consumption High Torque

The new original 395 metal back cover micro motor, the applicable voltage is DC12V-36V, silent and large torque, and low power consumption at the same time, this motor has a screen magnetic coil, it must be a strong magnetic motor, although it is a medium and low speed, but the torque Powerful, when it comes to torque, powerful torque is just a concept, we don’t have a torque meter to measure it, just rely on feeling, when it comes to subdivision comparison, its torque is of course not comparable to those high-speed, high-torque, high-power-density 395 motors. , but it has relatively low power consumption, small heat generation, and can work for a relatively long time, which is its advantage. It can only be said that each has its own merits.

Motor diameter: 27.9 MM (with the upper screen magnetic coil is 29.8 MM)

Motor length: 46.5 MM

Output shaft: 2.35 MM (knurled shaft, so 0.05 MM larger)

Output length: 22.5 MM

Screw hole: M 2.5

Screw hole pitch: 15.5 MM

Weight: 114 g

Voltage: 12V

Speed: 4400 rpm

Current: 0.07 A

Voltage: 24V

Speed: 8800 rpm

Current: 0.1 A

Voltage: 30 V

Speed: 11000 rpm

Current: 0.12 A

Voltage: 36V

Speed: 13300 rpm

Current: 0.2 A
