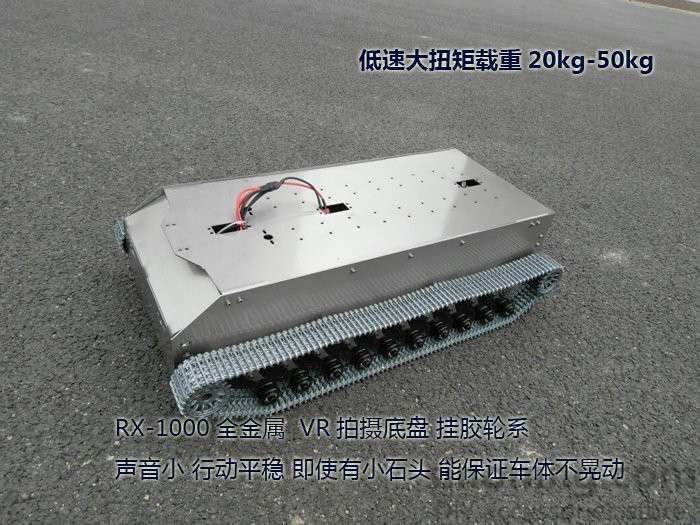

RX-1000 Super Large 61cm Stainless Steel Tracked Vehicle Tank Crossing Obstacle Chassis Inspection Robot High Foot Version SN10000

This product tank chassis only

Note: the product has some option,  get more detail, please contact us [email protected]

parameter：

weight:13kg

load capacity:20kg

500RPM motor test:

size:61cm. 20kg weight

Tall version:

Length, width and height 61 35 20 cm The distance from the ground is 6cm. The default speed is 200 revolutions per minute, which is 0.5m/s.

The torque is 15kg. In addition, there are 200 rpm 300 rpm 500 rpm to choose according to your needs.

All four-wheel drive GB37 555 motor 12v

The power is 30w x4=120w, the maximum power of the vehicle is 120w

Reminder: The 100-rpm motor of this car is equivalent to idling/no-load speed 0.25m/s, other speeds and so on

The faster the speed, the smaller the torque, the smaller the load

The track width is 50mm, alloy track is durable

The support wheel is made of bearing steel and precision bearings have excellent stability and shock absorption performance.

Car body weight is about 12kg without packaging

This machine has been used in the production centers of many units such as BTV catou veision.
