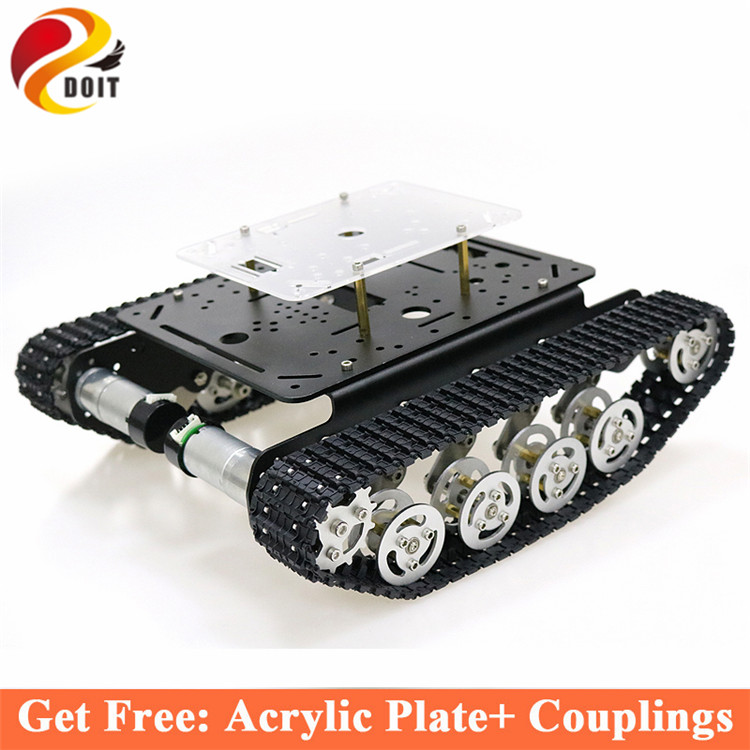

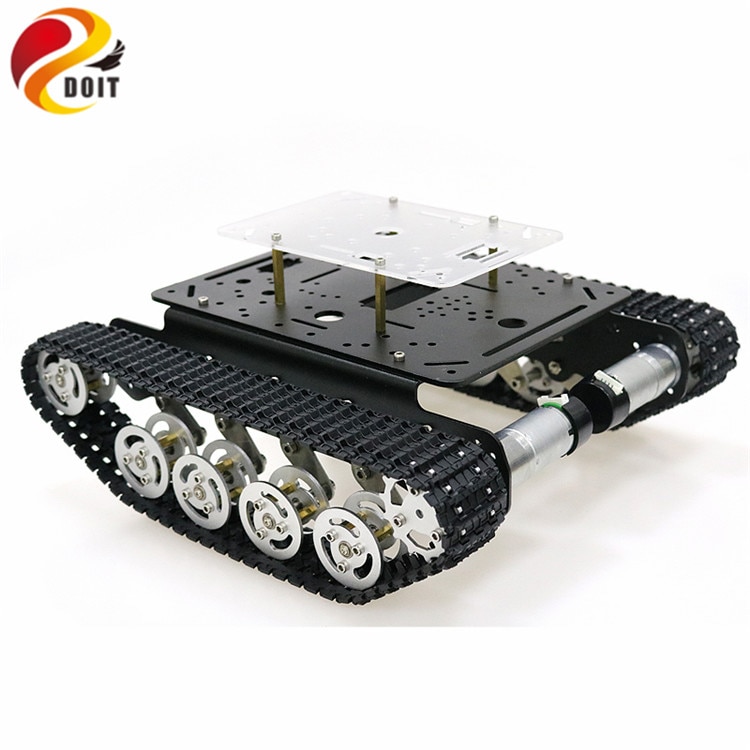

- Name: TS100 Intelligent tracked car/tank chassis
- Material: aluminum alloy
- Wheel: aluminum alloy
- Track: engineering plastic
- Product size: about 275*190*95mm (length * width * height)
- Weight: 1100g
- Color: golden yellow/silver/black
- More documents, pls see the link: wiki.doit.am
- Chassis: 1 pcs
- Driving wheels: 2 pcs
- Bearing wheels: 10 pcs
- Track: 2 pcs(can be changed the length)
- DC motor: 2 pcs
- Screws: 1 set
- Acrylic plate: 1pcs
- Coupling: 1 set
- Hexagon wrench: 1set
Note:
- For the convenience of transport, the tank chassis is unassembled.
- Name: 25mm gear motor
- Output speed: 150±10%rpm
- No_load Current: 200mA (Max)
- Stall current: 4500mA(max)
- Stall torque: 9.5kgNaN
- Rated speed: 100±10%rpm
- Rated torque: 3000gNaN
- Rated Current: 1200mA (Max)
- Noise: 56dB
- Working voltage: 9V
- Outside Shaft Length: 14.5mm
- Shaft End Play: 0.05-0.50mm
- Screw Size: M3.0
- Dia. Of Shaft phi4mm, D3.5
- encoder: 2 pulses/circle
