Features

• Noveland elegant appearance;

1) Reserve the space for 9g, MM95, MM96R gear;

2) Reserve for the intallation holes for UNO R3 and NodeMCU development board kit;

3) Reserve the space for robotic manipulator;

4) Design the LED light for the dark moving and brighten the light;

5) Add the 25mm and 37mm motor frame, can change the 4WD smart car;

• Aluminum alloy;

1) The metal chassis is generated by aluminum alloy;

2) The bearing wheels and the driving wheels are metal;

3) The bearing wheelpiece is connected by the stainless steel and two bearings, which can let the bearing wheel is rotate freely with small frictions.

• Solid structure;

1) The chassis can bearing the weight is about below 5kg; we test the 2.3kg;

2) All the chassis are metal, excluding the track (plastic).

• Powerful force;

1) It is very powerful;

2) with Hall sensor and feedback;

• Quickly,stability, flexibility;

• Strong power;

Specifications

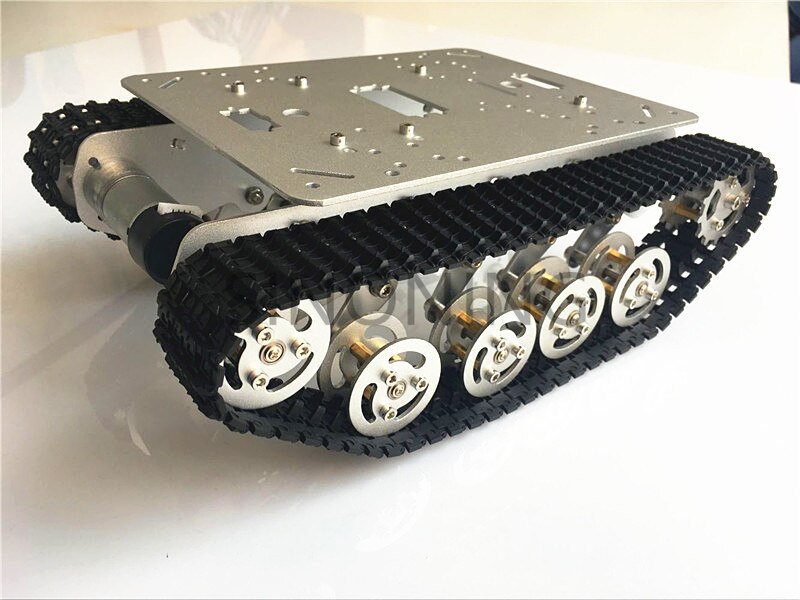

• Name: SN2400 Intelligent track car/tank chassis

• Material: aluminum alloy

• Wheel: metal

• Track: plastic

• Product size: about 275*190*95mm(length * width * height)

• Weight: 1100g

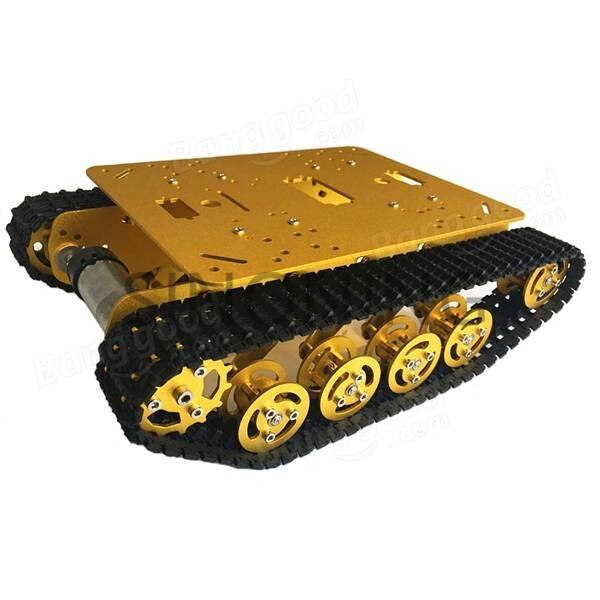

• Color:golden yellow/silver.

Motor Parameters

• Name:25mm gear motor

• Output speed: 150±10%rpm

• No_load current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated current: 1200mA (Max)

• Noise :56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size： M3.0

• Dia. Of Shaft phi 4mm, D3.5

• Encoder: 2pulses/circle

• Working voltage for sensor: 3-5V

Shipping List

• Chassis:1 set

• Driving wheels: 2 pcs

• Bearing wheels: 10pcs

• Track: 2pcs (can be changed the length)

• DC motor: 2 pcs

• Screws:several

• Screw tools: 3 pcs
