Snow/Raindrops Detection Sensor Module Rain Weather Module Humidity For Arduino

Item Description:

• 3.3-5V Rain Raindrops Detection Sensor Weather Humidity Module For Arduino
• Brand New
• Feature:
• 1.The sensor USES the high quality FR – 04 double material, large area of 5.5 * 4.0CM, treatment of nickel plating and surface, have fight oxidation, electrical conductivity, and life has more superior performance;
  2.With potentiometer sensitivity adjustment;
  3.The output format: digital switch output (0 and 1) and analog AO voltage output;
  4.Has a fixed bolt hole, convenient installation;
• 5.The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 mA;
  6.The LM393, use of wide voltage comparator;
  7.The working voltage of 3.3 V to 5 V;
  Size: Like the picture show
• Usage:
• – Connected to 5 v power supply power lights, no water droplets on induction plate, the DO output for the high level, switch lights out, a drop of water drops, the DO output for the low level, switch indicator,brush away the water droplets, return to again, the output high level state.
  – AO analog output, can be connected to the microcontroller AD mouth drops of rainfall in the above size.
  – DO TTL digital output can also be connected microcontroller detecting whether it will rain.
• Package includes:

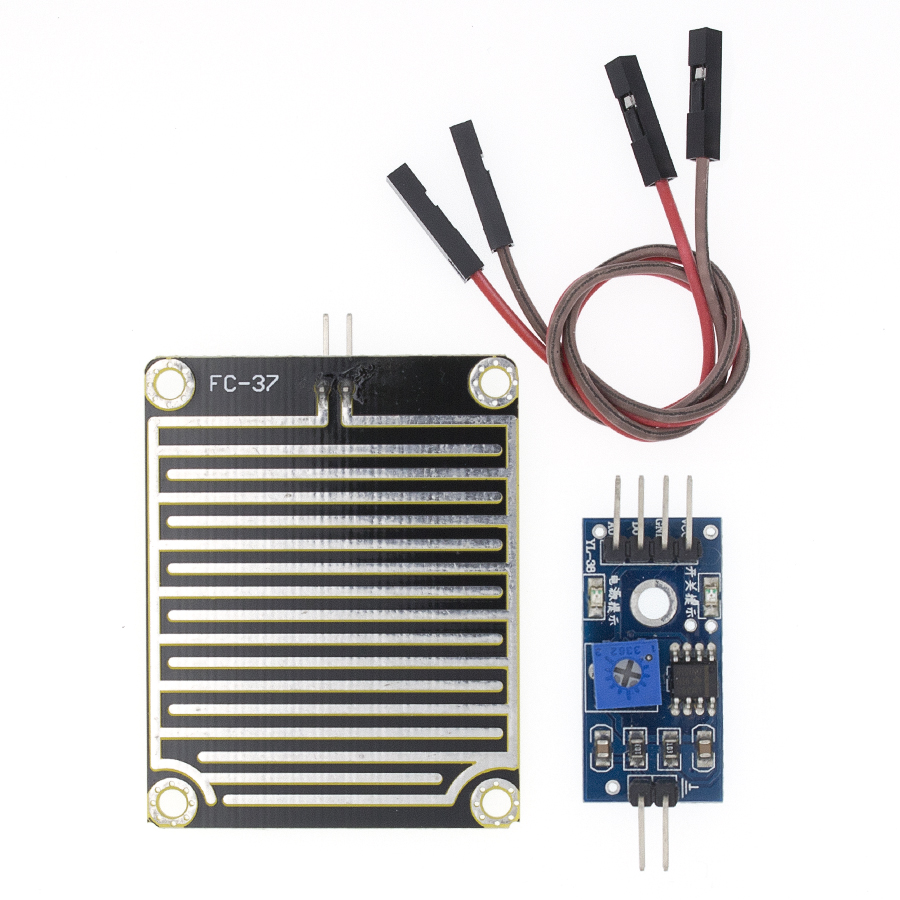

• 1 x Rain Sensor
• 1 x Rain Module
• 2 x Dupont Cables
•
